OWL Fiber Optic Cable Light Tester - ST (Visual Fault Finder Included)

$485.00
Reference#: 71604
Item#: KIT-Z2SV-D285ST



Description

The ZOOM 2 by OWL Inc. is one of the world's most economical and precise fiber optic power meters delivering professional performance and a complete feature set for optical loss testing in both Multimode and Singlemode networks. (Note: Singlemode testing will require a singlemode light source, which is not included in this kit.)

The ZOOM 2 can store reference values for all of its calibrated wavelengths, and displays optical power as an absolute value in dBm or relative to a user set "zero" reference in dB. It has an intuitive two-button interface, with one button controlling power and wavelength selection, while the other is used to toggle between dBm, dB, and uW, as well as setting the optical reference, or "zero".

Other standard features include a 4-digit, 0.01dB resolution display, battery status indicator, and a 2.5mm Universal detector port that is compatible with FC, ST, SC, DIN, and any other 2.5 mm ferrule connectors.

Features

Key Features:

- Economical option for quick attenuation and loss testing of multimode networks at 850nm

- Easy-to-read 4-digit 7-segment LCD display

- Store reference values for calibrated wavelengths

- Intuitive 2-button interface on both units

- On-screen wavelength, measurement units, and low battery indicator

-Built in visual fault finder (VFL)

- NIST traceable

Key Benefits:

* Germanium photodetector

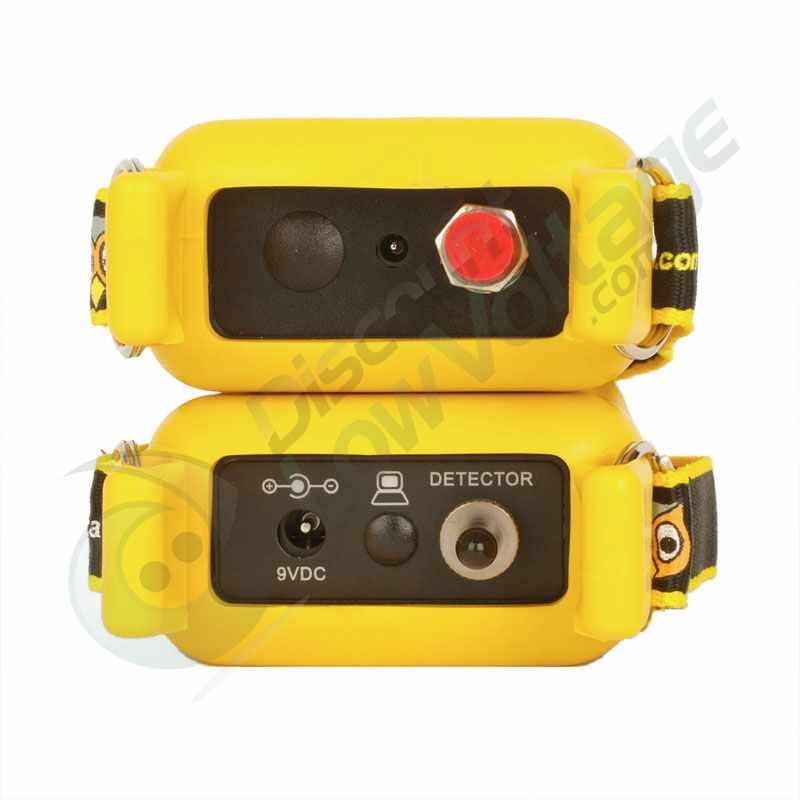

* 2.5mm universal adapter port

* Multimode and singlemode ready

* NIST Traceable

* Calibrated wavelengths: 850, 1300, 1310, 1490, 1550nm

* Separate zero reference for each calibrated wavelength

* Small, hand-held size

* Ergonomic protective rubber boot

* Long battery life - up to 250 hours on one 9v battery

* Bright 4-digit display allows accurate readings in dBm, dB, and uW

* Intuitive two-button interface

* Measurement range: +5 to -60 dBm

* Absolute accuracy: +/- 0.15 dB

* Resolution: 0.01dB

* Linearity: +/- 0.20dB

Specification

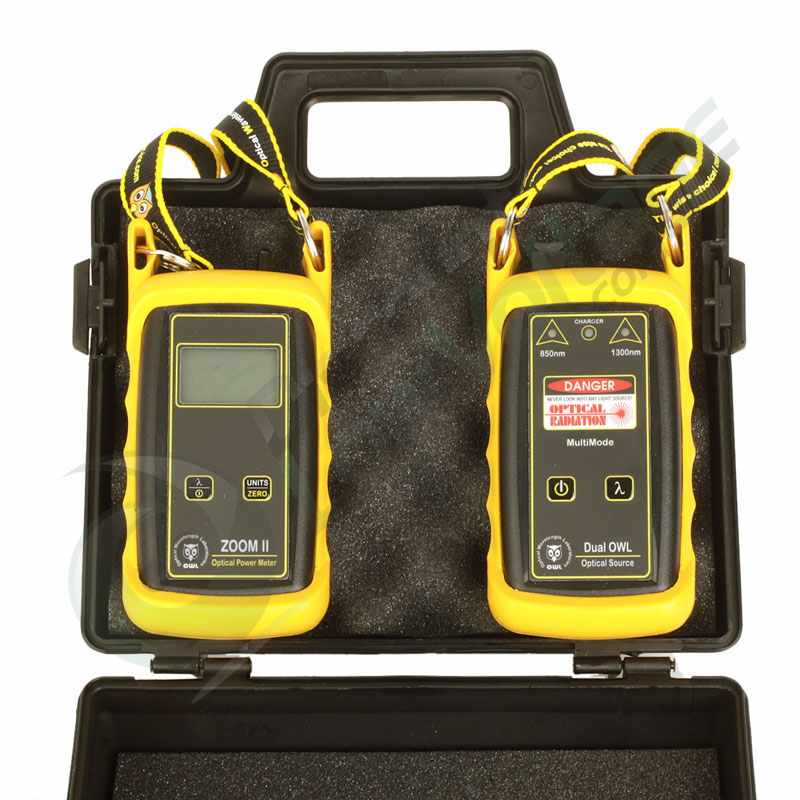

Kit Contents

Power Meter: Silicon ZOOM II

Light Source: Dual OWL 850

Accessories:
Product manuals
9-volt batteries
NIST certificate
Carrying case
Protective rubber boots
