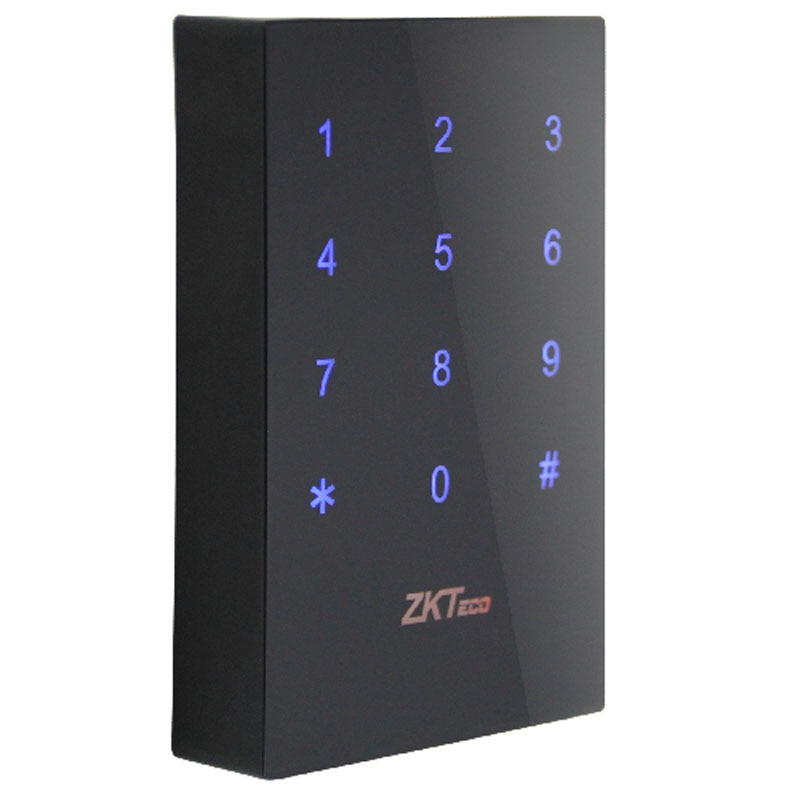

KR702E 125kHz Proximity ID Card Reader, IP65 Weather Resistant

$94.95
Reference#: 76843
Item#: ZK-KR702E



Description

Due to its convenient single-gang size, KR702E is the ideal card access solution for any metal doors with thin frames, parking gates, fences, turnstiles or any security device having a narrow mounting surface. KR702E also comes with a keypad which provides users both added security and convenience. KR702E has a built-in Wiegand-Out port which can be connected to most any access control panel (including ZKAccess C3 and InBio door controllers).

Features

  • Read range of up to 10cm for proximity card and 5cm for Mifare card
  • External LED control
  • External Buzzer Control
  • Indoor/Outdoor operation
  • Solid Epoxy potted
  • Waterproof IP65
  • Reverse Polarity Protection

    • Specification

    Technology: Proximity
    Supported card types: ZKAccess 125 KHz (optional Mifare)
    Mounting: Single-gang
    Indoor & Outdoor Installation: Electronics sealed in weather and tamper-resistant epoxy potting
    Keypad: 12 keys (0-9, *, #)

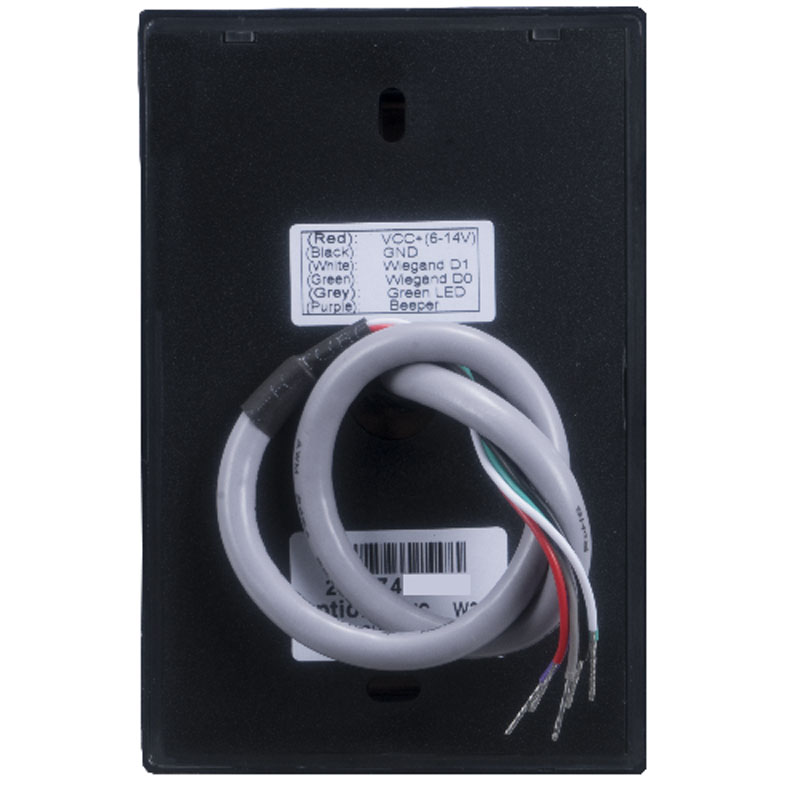

    Wiegand Inferface: Wiegand-Out port
    Power Supply: 12V DC
    IP-rating: 65
    Operating Temperature: -32 F to 158 F (0 °C- 70 °C)
    Operating Humidity: 20% - 80%
    Dimensions: (H×W×D) 4.4 x 3 x .6 inches (113 x 75 x 16 mm)
    Certifications: CE, FCC
    Current draw: 30 mA typical, 75 mA peak @ 12V DC
    Read range: Up to 3 inches (80 mm)
