Firestop Collar For 4.0" Dia. Plastic Pipe

$33.30
Reference#: 73416
Item#: LCC400



Description

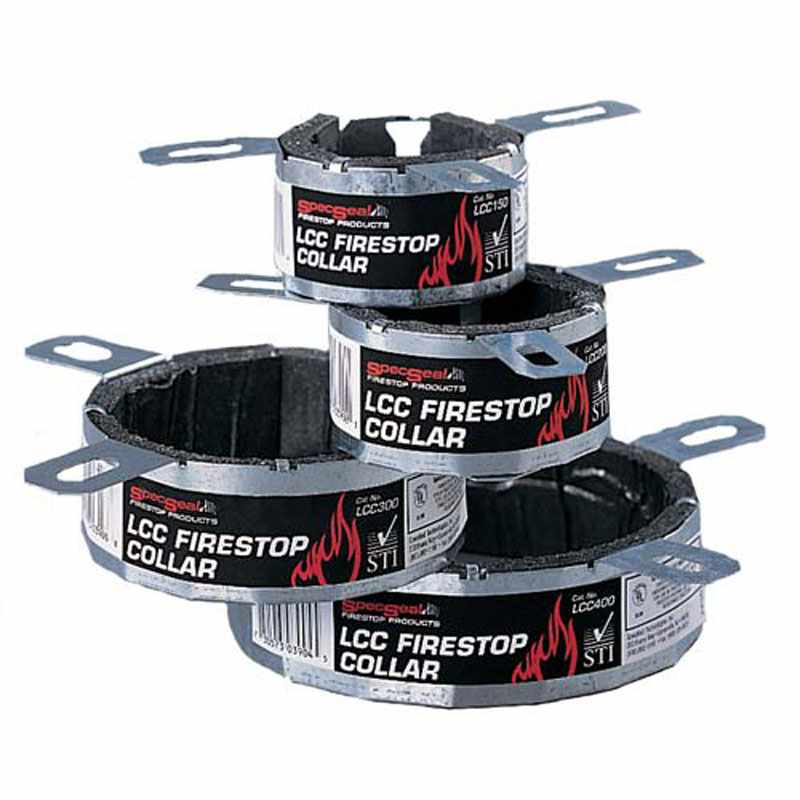

LCC Intumescent Firestop Collar (LCC400)

The economical solution for firestopping common plastic pipe that doesn’t compromise safety or performance.

The SpecSeal® Series LCC Collar is a factory-manufactured device designed to protect plastic pipes penetrating fire-rated walls and floors. Utilizing a heavy gauge galvanized metal collar to house a molded intumescent insert, the SpecSeal Series LCC400 Firestop Collar is specifically sized to fit 4˝ trade sized pipes. When exposed to temperatures in excess of 320°F (160°C), the SpecSeal Series LCC Collar’s molded insert begins to expand (intumesce) rapidly to form a dense, highly insulative char. Its free expansion ranges from 32-64 times original (pre-expanded) volume. Expansion continues up to 1,000°F (538°C).

Common Applications:
- Protects a variety of plastic pipes – PVC, PVC Foam Core (ccPVC), CPVC, ABS, ABS Foam Core (ccABS), FRPP, PP, PVDF and HDPE pipes
- Vented (DWV) and closed (electrical conduit and water supply) installations

Features

  • Easy installation – uses STI’s quick closure system
  • Compact profile – use it in all the tight spots!
  • Water-resistant – no water soluble or hygroscopic ingredients
  • Fast-acting expansion (up to 60X) – to seal off burning pipes
  • Safe for contact with plastics

    • Specification

  • Shell Construction: Galvanized Steel
  • Expansion Begins: 320°F (160°C)
  • Volume Expansion: 32 to 64X
    (free expansion)
  • pH: 7.4 to 8.4
  • In Service Temperature: ≤120°F (49°C)
  • Shelf Life: No Limit
