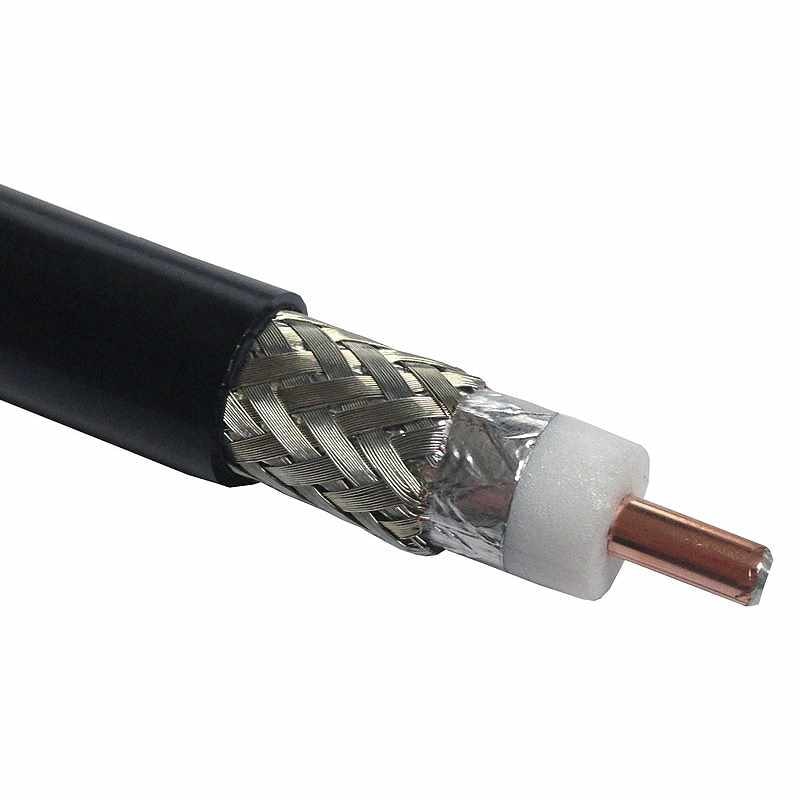

Times Microwave LMR600 Standard Outdoor Cable (per foot)

LMR standard is a UV Resistant Polyethylene jacketed cable designed for 20-year service outdoor use. The bending and handling characteristics are significantly better than air-dielectric and corrugated hard-line cables.

Approx. Wt. lb./1,000 ft.: 131

Braid %: 90% BRAID COVERAGE

Braid Material: TINNED COPPER

Coax Construction: COAXIAL

Coax Type: COAXIAL

Conductor Diameter: 0.176 INCHES

Conductor Material: COPPER CLAD ALUMINUM

Conductor Stranding/Dia. AWG & Type: 1/0.176/-/CCA

Conductor Type: SOLID CONDUCTOR

Dielectric Material: FPE-FOAMED (CELLULAR) POLYETHYLENE

Fire Rating: GENERAL PURPOSE (CM, CMG, CMX)

Flooded: NO NOT FLOODED OVER BRAID

Impedance: 50 OHM NOMINAL IMPEDANCE

Insulation Material (O.D. in.): FPE/0.455

Jacket Material Color: PE/BLK/0.590

Jacket Material: PE-POLYETHYLENE NEC

Rating: NOT LISTED BY UL UNDER NEC

Nom. O.D. (in.): 0.590

Notes/Special Features: ----- Outdoor: YES IS OUTDOOR GRADE MATERIAL

RG Type: LMR-600 Rating: ----- RoHS Compliant: YES

Screen/Shield Type: BOTH, BRAID OVER FOIL Shield: AL Tube + TC Braid Vendor: Times Microwave
