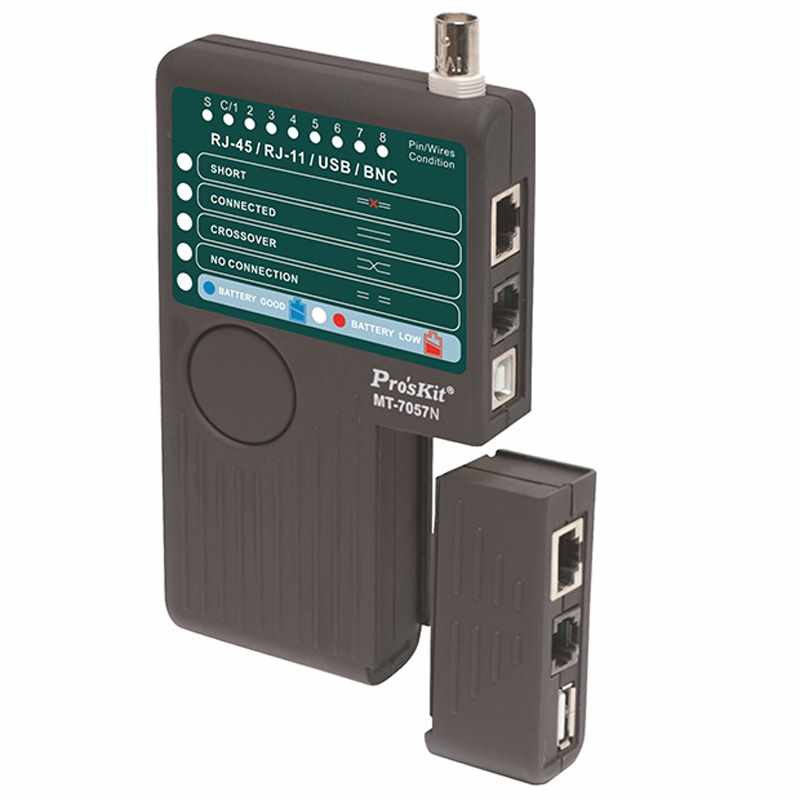

Eclipse Tools MT-7057N Cable Sniffer with Remote

Reference#: 76395
Item#: MT-7057N


The 4 in 1 CABLE SNIFFER-REMOTE provides 4 common LAN and computer cables test. It tests installed cables or patch cords with RJ-45, RJ-11, USB, and BNC connectors. It is intended to test cables with straight through connections not cables with reversed or transposed connections like some LAN crossover cables or reverse wired telephone cables.

1. RJ45 to BNC female connector
2. Instruction manual
3. Pouch bag

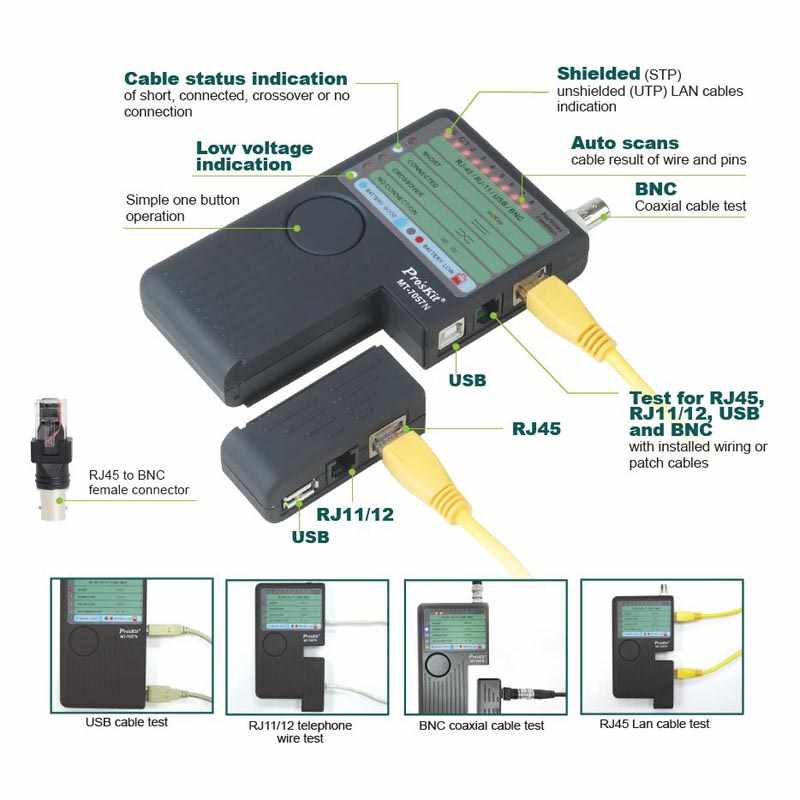

  • Test 4 types of cables
  • Simple one button test
  • Ergonomic portable handheld design
  • Tests installed wiring or patch cables
  • Remote unit stores in main unit
  • 500meter(1,640ft) test distance (RJ-45/RJ-11/BNC)
  • Convenient battery access
  • Built in battery test
  • LEDs indicate connections and faults
  • Beeper provides audible annunciation of test results
  • Tests shielded (STP)or unshielded(UTP) LAN cables
  • Test USB cables
  • PoE line voltage protective design
  • Specification

    1. Cables Tested: UTP and STP LAN cables Terminated in RJ-45 male connectors. (EIA/ TIA 568)RJ-11 cables with male connectors, 2 to 6 connectors installed. USB cables with Type A flat plug on one end and type B square Plug on other end. BNC cables with male connectors.
    2. Faults Indicated: No Connection, Short, connected, crossover.
    3. Low Battery Indicator: LED light up to indicate low battery
    4. Case Dimensions:6.3x3.4x1.0 inches(LxWxH)
    5. Weight:170 grams,0.375Ibs (without battery)
    6. Battery: 1 pc 9-volt alkaline battery (Not included)
