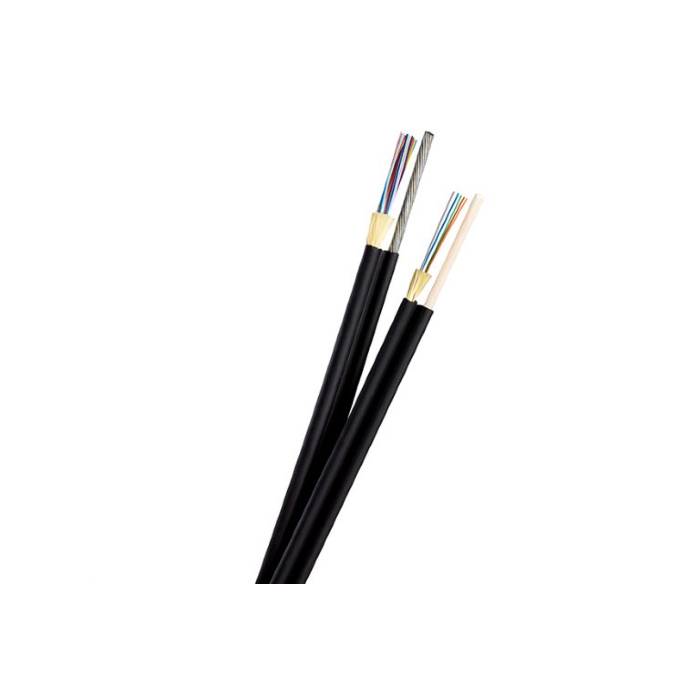

OCC 6 Strand Ultra-Fox™ Figure 8 Self-Supporting Singlemode TB Outdoor Fiber Optic Cable - Black (Per Foot)

$2.52
Reference#: 77963
Item#: OCC-MX006AALT9KAG3



Description

The MX006AALT9KAG3 cable is intended for use in outdoor aerial installations along utility poles, where it supports data transport or cable television signals. It is ideal for applications that require a reliable, weather-resistant solution with efficient installation processes, such as telecom networks, campus backbone systems, and utility-grade installations.

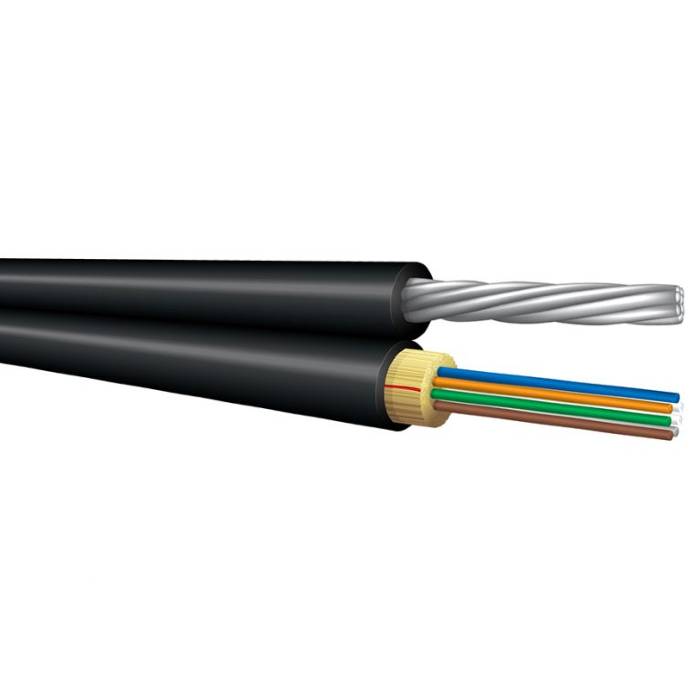

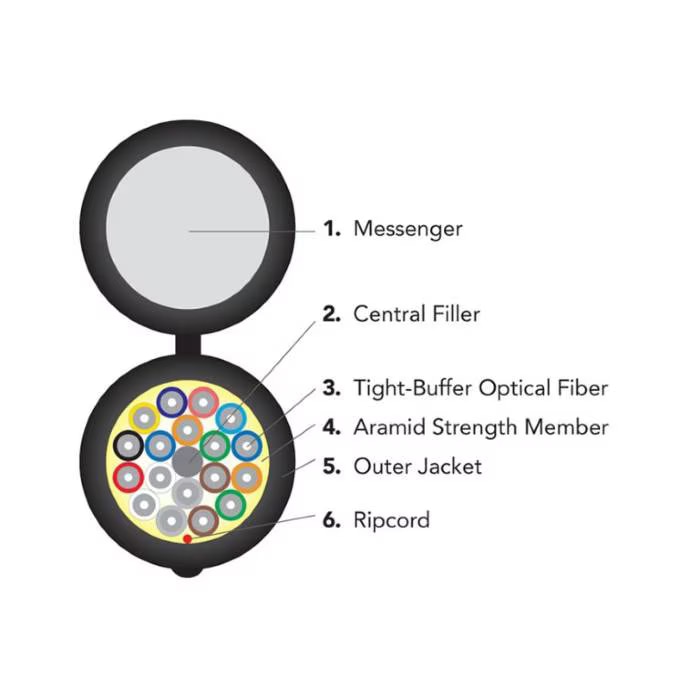

The figure-eight construction with ¼" messenger makes it particularly advantageous for installations that do not require the traditional lashing process. It simplifies and speeds up the setup while maintaining the necessary structural integrity for long-term service.

Features

  • Figure-8 construction for use with standard messenger clamping and support hardware
  • Ideal for new installations; the figure-eight messenger cable reduces installation time and cost by approximately 50% compared to separate installation of a messenger wire and the lashing of the cable to the messenger
  • Wide operating temperature range of -40°C to +85°C
  • 1/4-inch galvanized messenger standard
  • Polyethylene outer cable jacket for excellent UV and weather resistance
  • Designed to the NESC requirements for light, medium, and heavy storm loads

    OCC figure-eight tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • ICEA-S-87-640
  • TIA-568
  • TIA-598

    • Specification

    Crush Resistance: 1,800 N/cm
    Operating Temperature: -40ᵒC to +85ᵒC
    Storage Temperature: -55ᵒC to +85ᵒC
    Installation Temperature (actual temp. of cable): -30ᵒC to +60ᵒC
    Jacket Color: Black
    Jacket Material: Polyethylene
    Buffer Material: Hard Elastomeric
    Messenger Cable Diameter With ¼ inch Galvanized Steel: 9.0 mm (0.35 in)
    Distribution Cable Diameter: 7.7 mm (0.30 in)
