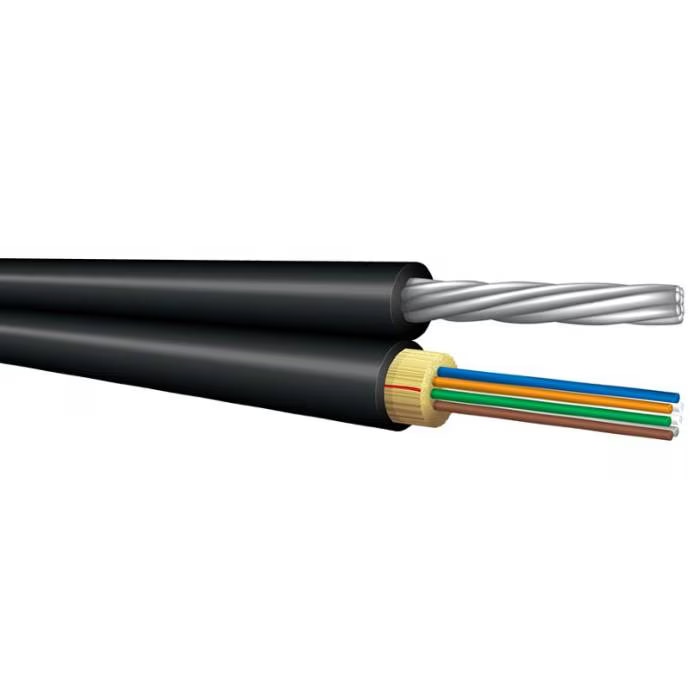

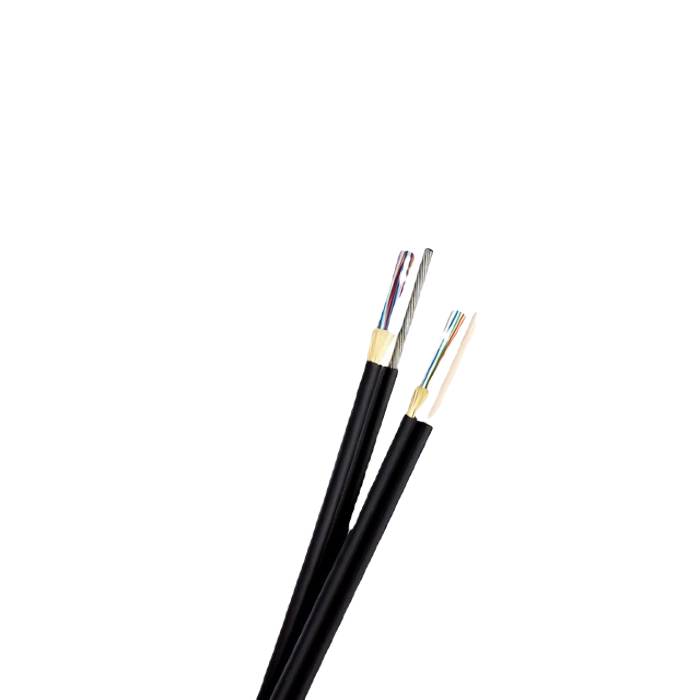

OCC Figure-8 Self Supporting 12 Fiber 50/125μm OM3 Ultra-Fox™ 1/4" Galvanized<br>Steel Messenger - Black

The OCC MX012AALT9KAG3 is a premium-quality Figure-8 self-supporting fiber optic cable, engineered to meet the demanding requirements of both aerial and underground installations. This cable features a sophisticated construction and robust design, making it ideal for various applications where durability and performance are paramount.

Laser Ultra-Fox™ Fiber Performance
Fiber Code: ALT
Industry Standard Designation:
Laser optimized
OM3
Bend insensitive
ISO/IEC 11801
Core/Cladding Diameter (μm): 50/125
Numerical Aperture: 0.20
Wavelength (nm): 850/1310
Gigabit Ethernet Distance (m): 1000/600
10-Gigabit Ethernet Distance (m): 300/300
Maximum Cabled Attenuation (dB/km): 3.0/1.0
Minimum Laser EMB Bandwidth (MHz-km): 2000/500
Minimum OFL LED Bandwidth (MHz-km): 1500/500
Primary Coating Diameter (μm): 245
Secondary Buffer Diameter (μm): 900
Proof Test Level (kpsi): 100

Mechanical and Environmental
Crush Resistance: 1,800 N/cm
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +85°C
Installation Temperature (actual temp. of cable): -30°C to +60°C

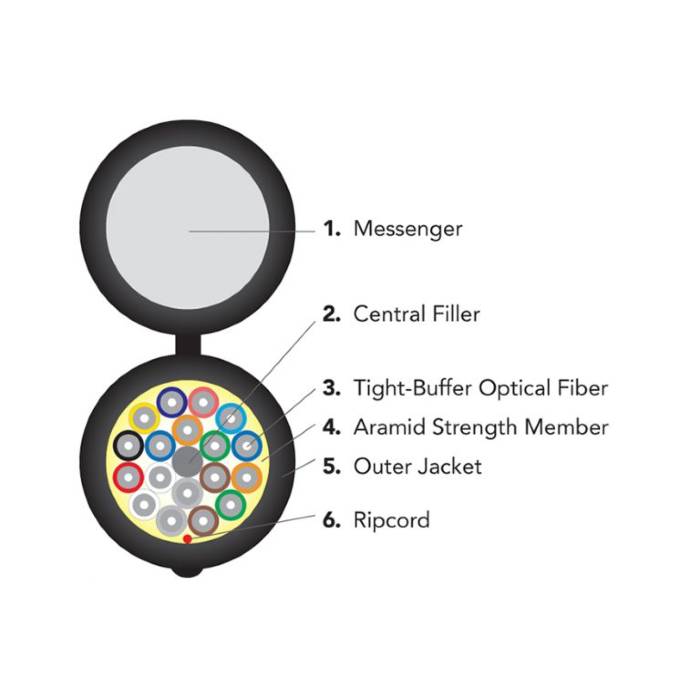

Cable Characteristics
Jacket Color: Black
Jacket Material: Polyethylene
Buffer Material: Hard elastomeric
Messenger Cable Diameter With 1/4 inch Galvanized Steel: 9.0 mm (0.35 in)
Distribution Cable Diameter: 7.7 mm (0.30 in)
Cable Weight: 261 kg/km (175lbs/1000)

OCC figure-eight tight-buffered fiber optic cables meet the functional requirements of the following standards:

ICEA-S-87-640

TIA-568

TIA-598
