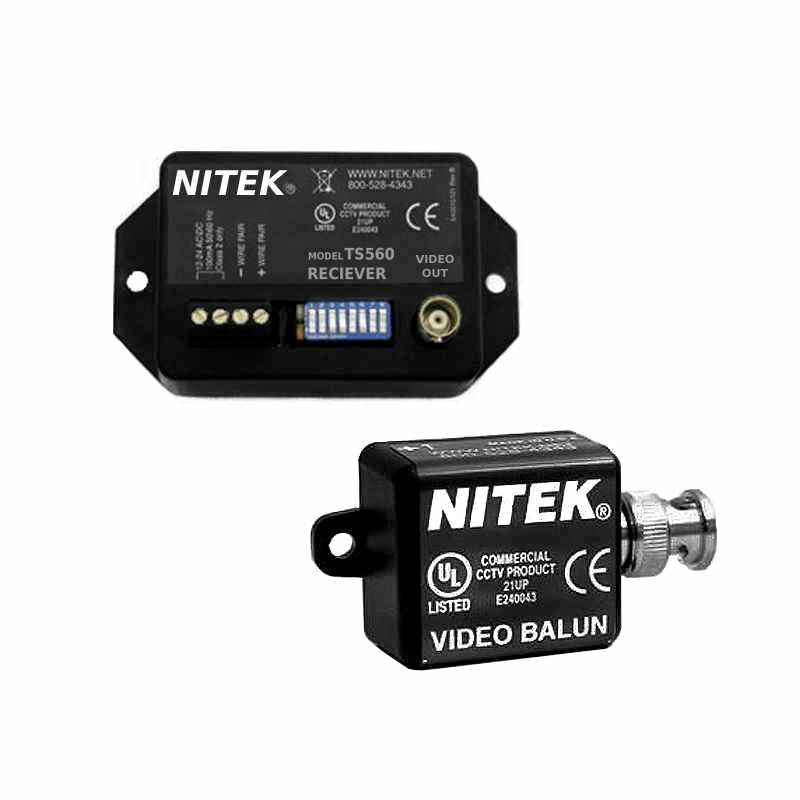

Nitek TS560 Active Video Balun Set

$393.99
Reference#: 73026
Item#: TS560



Description

Active Video Balun Set for Transmission of CCTV over Unshielded Twisted Pair (UTP) transmission from 100 feet (30 meters) to 3,000 feet (1,800 meters)

Features


  • Active electronics compensate for frequency and level loss providing the highest quality video
  • High resolution color or monochrome video Immunity to ground loop.
  • Built-in protection from power surges, transients, static or other electrical interference
  • Video can be run in the same cable with telephone and computer signals
  • Weatherproof design
  • Easy to install

Applications:
  • Large Campus Installations
  • Shopping Malls
  • Airports
  • High Voltage Facilities
  • Traffic Around City Areas
  • Remote Gates

Specification

Size1.6” (H) x 4.30” (W) x 2.4” (D)
Power Requirements24VAC@1watt (1VA)
InputBalanced low voltage current loop
Output1 vpp composite video
Monochrome or Color
Common Mode Rejection>70dB
Wire Spec 26 to 12 AWG Unshielded Twisted Pair (UTP)
DC Loop Resistance 51 Ohms/1,000 feet (max) (51 Ohms/300 meters)
Normal Capacitance 17pF/ft.
Impedence100 Ohms +/- 20%
UTP Category 2 or better
