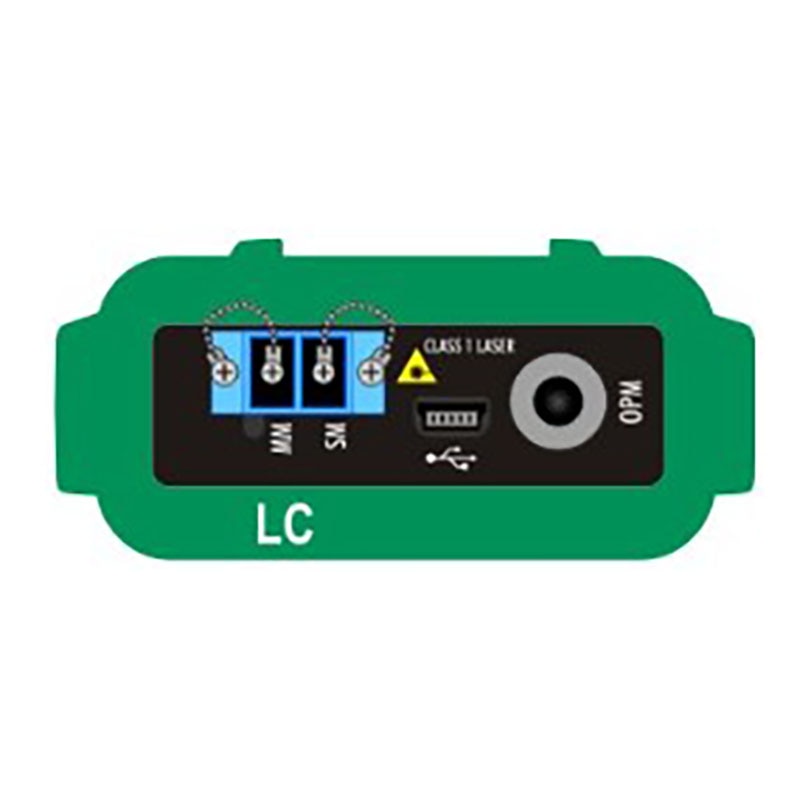

F7BMS Fiber Owl 7 Quad MultiMode/SingleMode Bi-Directional Certifier (LC Connectors)

$4,125.00
Reference#: 76968
Item#: F7BMS



Description

Tri-report. Sooner or later, technicians will be required to provide their clients with comprehensive certification reports that include link certification results, OTDR traces and events, and endface analysis.
OWLView software gathers together all three of these critical data and formats them onto one single-page “Trireport”.

Link certification provides clients with a PASS/FAIL test result, ensuring that fiber links are installed and tested according to popular industry standards, including TIA568 and various levels of Ethernet.

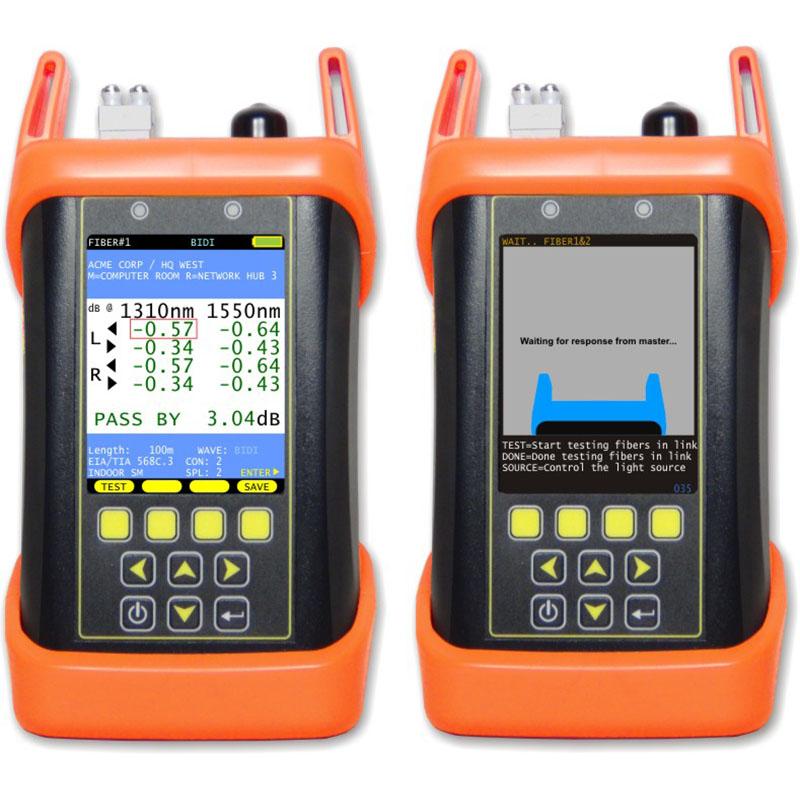

Fiber OWL 7 BIDI certifiers include two separate OLTS units – a master meter and a remote injector – that allow users to certify two fibers at two wavelengths simultaneously – 2 to 4 times as fast as traditional singlefiber link certification.

Many clients are also requesting OTDR traces for the purpose of “link characterization”; i.e. a visual “roadmap” of the fiber link. OTDR traces include a graphical representation of the fiber link that shows the different “events” in the fiber link including patch panels, and event tables show the relative loss of individual events.
OWLView software allows users to import OTDR traces taken with OWLTrek 2 OTDRs, and appends the traces to the link certification report.

Clients are also interested in seeing the quality of their fiber endfaces at the time of testing. Endface analysis digitally inspects a fiber endface image for scratches and defects that may adversely affect data transmission.
OWLView software includes PASS/FAIL endface analysis based on the popular IEC 61300-3-35 endface inspection standard, and can analyze JPG endface images taken with any fiber videoscope.

Encircled Flux compliant
Encircled Flux (EF) compliance is the latest requirement for testing multimode networks designed for transmission of 10 Gigabits and beyond. When used with EF mode controller cables, the Fiber OWL 7 BIDI ensures high-speed multimode networks are compliant to standards-based EF requirements.
User-friendly setup and test procedures
Helpful diagrams on the screen prompt the user to connect the tester to the link as shown, and text-based help screens are available in case users have questions in the field.
Affordability
Fiber OWL 7 BIDI OLTS are a fraction of the cost of bulky over-priced certifiers, saving cost conscious technicians and installers thousands of dollars that could be better used elsewhere.
Small, compact size
At nearly a third of the size and weight as compared to much bulkier ultra-expensive certifiers on the market, Fiber OWL 7 BIDI OLTS are truly hand-held pocket-sized devices that can be operated in one hand!

Kit Includes:

  • Fiber Owl 7 Quad (MM/SM) BI-Directional Certifier
  • USB Download cable
  • 2.5mm/1.25mm universal detector adapters
  • NIST Certificate of Calibration
  • USB flash drive with software/documentation
  • Hard-shell carrying case

    • Features

    Certification Reports:
    Used for long-term cable systems warranties and assure clients of a job well done

    Intuitive Link Wizard:
    Guides the setup and reference process with helpful tutorial diagrams via the color LCD

    Optical Loss Test Set (OLTS):
    Separate transmit and receive ports allow simultaneous dual-fiber testing
