KF7VMS Fiber OWL 7V Singlemode/Multimode Auto-Testing Fiber Optic Certification Test Kit (w/ VFL and Length Testing Feature)

Fiber OWL 7V KF7VMS certification test kits are ideal for the fiber optic professional who requires standards-based certification of fiber links, including TIA-568, ISO 11801, various Ethernet standards, among others. The Fiber OWL 7 KF7VMS can also be configured with custom standards to meet the needs of various fiber optic applications.

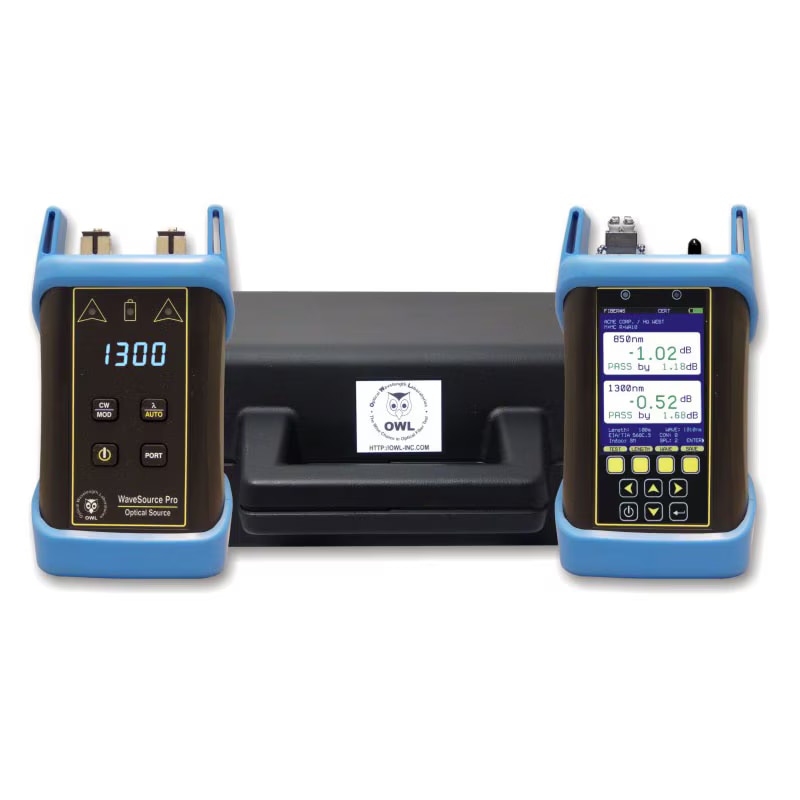

The Fiber OWL 7V Quad Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in singlemode and multimode networks, commonly referred to in the industry as Tier 1 certification.

The Fiber OWL 7V (p/n: F7V) optical power meter is multimode and singlemode ready, and contains a user-friendly Fiber Link Wizard with color diagrams to guide the setup process, calculate the link budget, and set the optical reference. Up to 10,000 fiber runs may be stored in internal memory, and can be downloaded to a PC for report generation with OWLView software.

Intelligent automated testing functions include automatic dual-wavelength storage and auto-wavelength recognition which reduce testing time and human error.

The universal detector port on the F7V comes with 2 adapter caps, one for 2.5mm connectors such as SC, ST, and FC, and the other for 1.25mm connectors such as LC. The integrated VFL port and length testing ports are LC.

The WaveSource Pro Quad (p/n: WPMS) fiber optic light source is designed for accurate testing and certification of multimode (850nm & 1300nm) and singlemode (1310nm & 1550nm) networks. Its dual-wavelength outputs are temperature-stabilized for accurate measurements.

The WPMS has a built-in auto-wavelength switching protocol designed to synchronize the wavelength of the F7V with the current output wavelength.

The light source comes configured with SC connector ports.

Applications:

• Standards-based link certification for multimode and singlemode fiber links
• Color LCD indicates PASS / FAILstatus based on color
• Unlimited job configurations
• User-friendly Link Wizard with helpful color on-screen diagrams to help guide the setup process
• Auto-wavelength recognition and data storage reduces testing time and human error
• Up to 10,000 test readings can be stored in memory
• Integrated length tester for accurate end-to-end link length measurements, a critical factor for link budget calculation
• Prints official certification reports via OWLView certification software
• Re-chargeable Lithium Polymer battery
• NIST Traceable
• USA Made! Factory located in the heartland of the US!

Fiber OWL 7V Optical Power Meter (P/N: F7V) Key Specifications
Detector Type: InGaAs
Calibrated Wavelengths*: 850, 980, 1300, 1310, 1490, 1550, 1625
Measurement Range: +5 to -70 dBm
Accuracy: ±0.15 dB
Display Resolution: 0.01 dB
Battery Life: Up to 50 hours (Lithium Polymer)
Detector Connector Type: 2.5mm/1.25mm universal
Data Storage: Up to 10,000 data points
Displayed Measurement Units: dBm, dB, mW, µW, nW
Modes of Operation: CERT, LOSS, OPM
Length Test Range / Accuracy: up to 25 km / ±2.5 m
Length Tester Connector Type: LC
Display Type: Hi-resolution Color LCD
Auto-shutdown: Yes
Operating Temperature: -10 to 55° C
Storage Temperature: -30 to 70° C
Dimensions: 2.9 x 4.49 x 1.3 in. (72.9 x 112.3 x 31.8 mm)
Weight: 12 oz. (373g)

Visual Fault Locator Specifications
Output Wavelength: ~650nm
Output Power: 0 dBm (1mW)
Operating Modes: CW/Flash
Connector Type: LC

Wavesource Pro Quad Light Source (P/N: WPMS) Key Specifications
Launch Method: Multimode (LED) :: Singlemode (FP Laser)
Center Wavelength: MM (850 nm: 850 ±30 nm 1300 nm: ± 50 nm) :: SM (1310 nm: 1310 ± 20 nm 1550 nm: 1550 ± 30 nm)
Spectral Width: MM (850 nm: 50 nm 1300 nm: 180 nm) :: SM (1310nm: 2 nm 1550nm: 2 nm)
Output Power: MM (-20 dBm) :: SM (-10 dBm)
Output Modes: MM/SM (CW / Modulated)
Initial Accuracy: MM/SM (± 0.1 dB)
Battery Life: Up to 150 hours (re-chargeable Lithium Polymer)
Operating Temp.: 0 to 55° C
Storage Temp.: 0 to 75° C
Dimensions: 2.87 x 4.42 x 1.25 in. (72.9 x 112.3 x 31.8 mm)
Weight: 10 oz. (284g)
Connector Type: SC
