KF7XMS Fiber OWL 7X Singlemode/Multimode Auto-Testing Fiber Optic Certification Test Kit (w/ Length Testing Feature)

Fiber OWL 7X KF7XMS certification test kits are ideal for the fiber optic professional who requires standards-based certification of fiber links, including TIA-568, ISO 11801, various Ethernet standards, among others. The Fiber OWL 7 KF7XMS can also be configured with custom standards to meet the needs of various fiber optic applications.

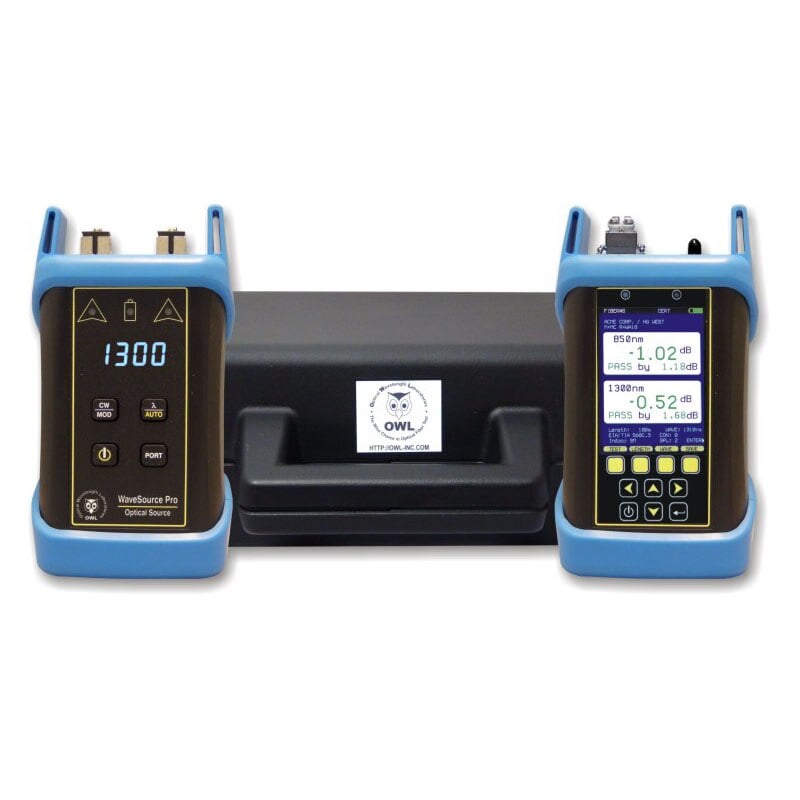

This KF7XMS certification test kit comes with a N.I.S.T. Traceable Fiber OWL 7X optical power meter and a WaveSource Pro fiber optic light source [multimode (850/1300nm) and singlemode (1310/1550nm)].

Included with each test kit are a hard-shell carrying case, protective rubber boots, certificate of NIST-traceability, USB battery chargers and cables, and a USB flash drive with free OWLView software and operation manual. Fiber OWL 7X optical power meters come standard with a state-of-the-art UNIVERSAL adapter port system. The flexibility of universal ports saves money on consumables (since test cables wear out over time).

Encircled Flux compliant
Encircled Flux (EF) compliance is the latest requirement for testing multimode networks designed for transmission of 10 Gigabits and beyond. When used with EF mode controller cables, Fiber OWL 7 certifiers ensure high-speed multimode networks are compliant to standards-based EF requirements.

User-friendly setup and test procedures
Helpful diagrams on the screen prompt the user to connect the tester to the link as shown, and text-based help screens are available in case users have questions in the field.

Affordability
Fiber OWL 7X certifiers are a fraction of the cost of bulky over-priced certifiers, saving cost conscious technicians and installers thousands of dollars that could be better used elsewhere.

Small, compact size
At nearly a third of the size and weight as compared to much bulkier ultra-expensive certifiers on the market, Fiber OWL 7X certifiers are truly hand-held pocket-sized devices that can be operated in one hand!

• Comprehensive OWLView Tri-report
• Easy to read color LCD
• Color-coded PASS/FAIL standards-based test results
• Integrated length testing
• Tier 1 Certification for both multimode and singlemode
• User-friendly diagrams guide users through the testing process!
• USA Made! Factory located in the heartland of the US!

General
Display Type: 2.8” Color LCD
Battery Type: Re-chargeable Lithium Polymer
Battery Life: Up to 50 hours
Auto-shutdown: Yes
Operating Temperature: -10 to 55° C
Storage Temperature: -30 to 70° C
Dimensions: 2.87” x 4.42” x 1.25”
Weight: 10 ounces (284 g)

Optical Power Meter – Detector Port
Detector Type: InGaAs
Wavelengths: 850, 980, 1300, 1310, 1490, 1550, 1625 nm
Measurement Range: +5 to -70 dBm
Accuracy (Uncertainty): ±0.15 dB
Display Resolution: 0.01 dB
Power Units: dBm, dB
Connector Type: Universal (2.5 mm and 1.25 mm)
Data Storage Points: <10,000
Download Port Connection: USB
Software: OWLView
Modes of Operation: CERT, LOSS, OPM

Optical Power Meter – Length Test Port
Type: FP Laser
Center Wavelength: 1310 ± 30 nm
Spectral Width (FWHM): 1310 nm: 2 nm
Output Power: -10 dBm
Length Accuracy: ±2.5 meters (7 feet)
Length Limit: up to 25 km (singlemode)
Connector Type: SC

Fiber Optic Light Source
Type (MM / SM): LED / FP Laser
Center Wavelength:
850 +30/-10 nm
1300 ±50 nm
1310 ± 30 nm
1550 ± 30 nm
Spectral Width (FWHM):
850 nm: 50 nm
1300 nm: 180 nm
1310 nm: 2 nm
1550 nm: 2 nm
Output Power (MM/SM): -20 dBm / -10 dBm
Initial Accuracy (Uncertainty): ±0.1 dB
Output Modes: CW, Modulated
