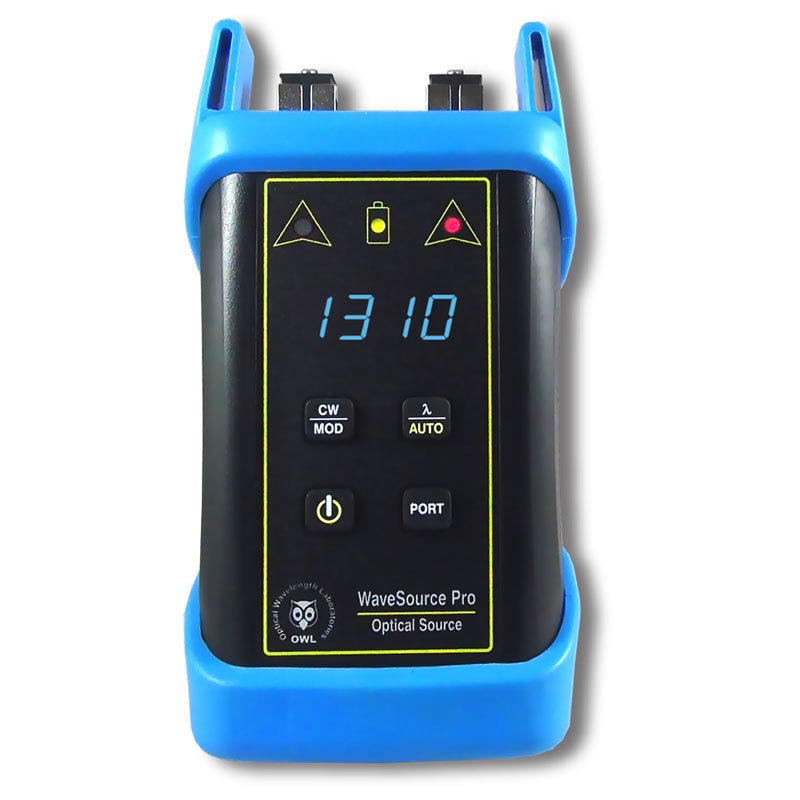

OWL WPMS WaveSource Pro Quad, MM: 850/1300nm; SM: 1310/1550nm (SC connector)

$1,399.95
Reference#: 77159
Item#: WPMS



Description

WaveSource Pro series light sources provide fiber optic professionals with a wide range of options for their testing needs. The WPMS WaveSource Pro comes configured for use with multimode and single-mode fiber optic cable.

WaveSource Pro series light sources provide high output and stability at an economical price. The sources provide temperature-compensated outputs, and have an intuitive 4-button interface with controls for power, transmission mode, wavelength, and auto-test mode. LED indicators highlight the selected source and verify that battery power is sufficient to maintain the calibrated output power.

When used with the OWL F7V Optical Power Meter (or any other Fiber OWL 7 series optical power meter), the auto test function of the WaveSource Pro will allow auto-wavelength switching and auto-storage of test points, saving valuable test time.

Features

  • Highly stabilized
  • Rugged and Economical
  • Output Power: -10 dBm (singlemode sources)
  • Output Power: -20 dBm (multimode sources)
  • CW or modulated output
  • Compact Size
  • Photodiode Compensated
  • Extended Battery Life
  • Low Battery Indicator
  • NIST Traceable
  • SC fiber connectors
    Automatic Wavelength detection when used with the Fiber OWL 7 optical power meters!
