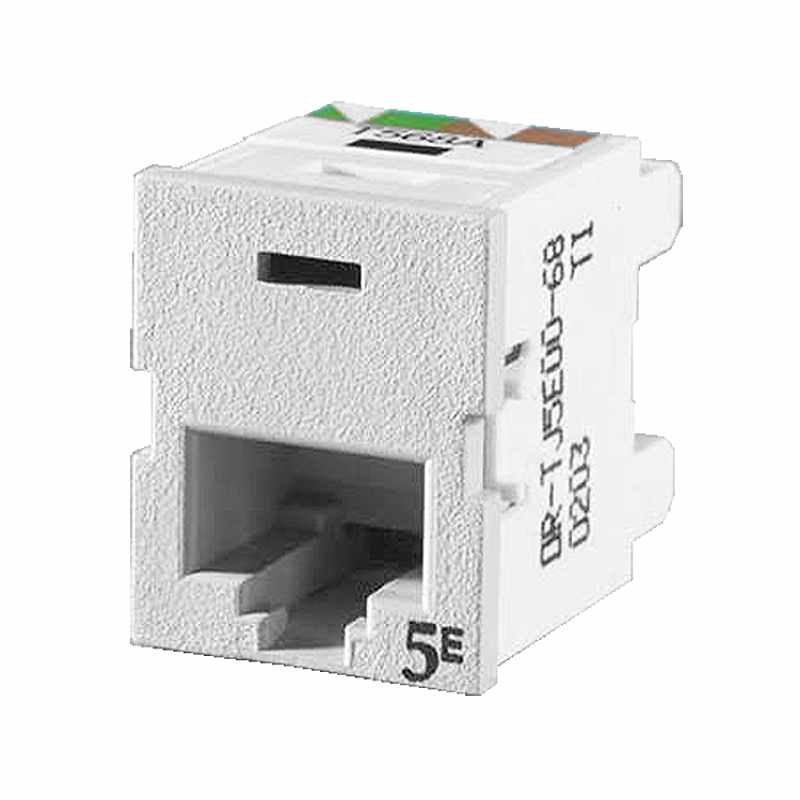

Ortronics TJ5E00 TracJack CAT5E Keystone Jack - Fog White

Reference#: 72166
Item#: OR-TJ5E00


Clarity 5E TracJack, ETL verified to TIA Category 5e component specification. Front-loading and front removable. New universal T568A/B wiring label and tapered wiring towers simplify termination. Center tuned to Clarity 5E patch cords for significant performance above Category 5e.


• ETL Verified to Category 5e component standard: Ensures standards compliance.
• Center tuned design: Transparent interface with Clarity 5e cords.
• Easy lace IDC housing: Reduces wiring time
• Easy to follow universal wiring label: Quick, user-friendly, eliminates confusion.
• Front removable: Less intrusive access for adds, moves, changes.
• Standard TracJack footprint: Fits in all Tracjack faceplates and housings.
• Icon compatible, with 5E Marking on jack face: Supports 606 designation requirements.
• RoHS compliant: Lead free.


Dimension Info
Depth Metric: 26.92 mm
Height Metric: 23.37 mm
Width Metric: 18.54 mm
Height U S: 0.92"

General Info
Product Series: Clarity
Type: Jacks and Modules
Footprint: TracJack
Color: Fog White

Technical Info
Wire Gauge: 22-26 AWG
Category Rating: Cat 5e
Performance Rating: Cat5e

Construction Info
Component2: Array of eight modular dual reactance contacts - Material2: Beryllium copper,
Finish_Plating2: Nickel plating and a minimum of 50 micro inches of selective gold plating in contact area
Component3: IDC contacts (Low noise) - Material3: Phosphor bronze, Finish_Plating3: Nickel plating with tin over plate

Listing Agency Info
UL E131600

Country of Origin: MEXICO
Buy American Act Status: Trade Agreement Act Compliant
