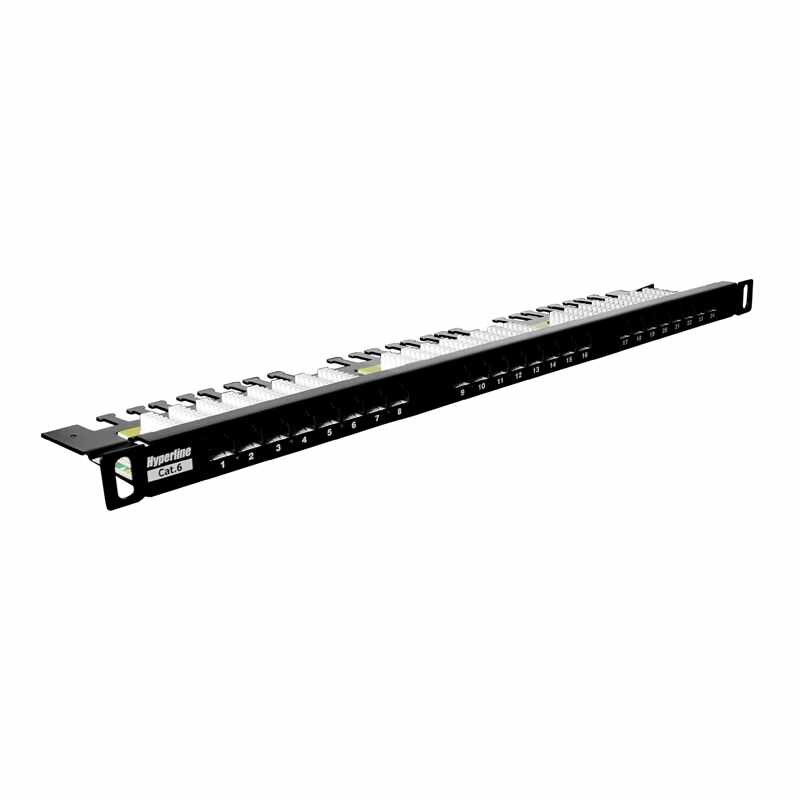

Hyperline HALF U - Cat6 24 Port Patch Panel

$89.50
Reference#: 70838
Item#: HL-PPHD-19-24-C6-110D



Description

Is that rack just about full? Need to add a patch panel? The half space 24 port Cat6 Patch Panel might be just what your looking for. 19" standard size for mounting in racks and cabinets and this patch panel is designed for 22-26 AWG solid conductors.

Features

  • Distinct numerical marking ports on the front panel and areas for additional marking
  • Bright and intuitive color coding on the rear panel in accordance with T568A and T568B
  • The design of the modules and their arrangement eliminates damage to the spring contacts
  • The IDC-connectors ensures easy termination of conductors
  • For sealing IDC-prong approach two types of tools: type 110 and Krone (LSA)
  • Built-in rear cable organizer for laying cables
  • Very compact size and light weight

Specification

  • Meets 550 Mhz certification
  • Meets ANSI/TIA/EIA-568-B.2 Category 6 requirements
  • Meets TIA/EIA TSB-40
  • Meets ISO/IEC Generic Cabling Standard 11801:2002 ed.2.0
  • Meets CENELEC Generic Cabling Standard EN50173 – 1:2002
  • Current rating: 1.5 A Max.
  • Voltage rating: 150 V
  • Contact Resistance: 20 mOhmÂ
  • Insulation Resistance: 500 MOhm
  • Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz/1min
