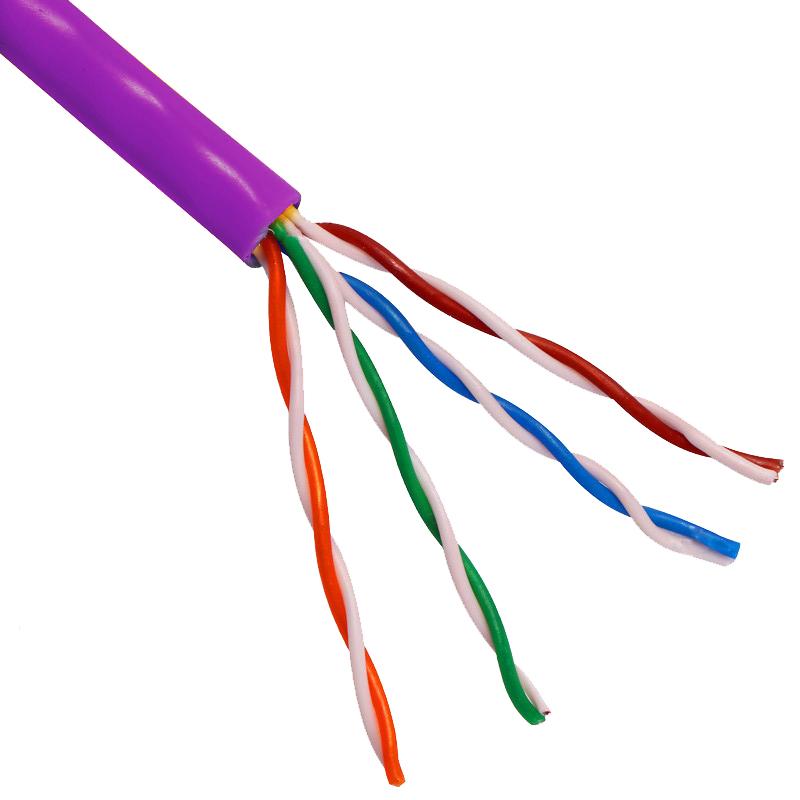

Superior Essex PowerWise 1G PoE CMR Cable for LED Lighting (PURPLE) - 1,000 ft

Reference#: 76832
Item#: PW52-H46-75


Discount Low Voltage carries Superior Essex PowerWise cable designed for LED lighting fixtures. Save $$ and time when installing or retrofitting PoE lighting. PowerWise® 1G 4P PoE cables provide superior performance and value for 4Pair Power over Ethernet applications needing as much as 100W power capacity and 1 Gigabit Ethernet transmission performance. PowerWise cables mitigate temperature build-up with extraordinary energy efficiency while maintaining 1 Gigabit Ethernet performance over the lifetime of your system.

PowerWise 1G PoE cables are the most cost effective solution to connect and power your high current PoE applications. PowerWise cables can handle up to 100 watts of power transmitted over the same copper pairs used for data. Power efficiency is increased by using 22 gauge conductors to guarantee minimal increases in cable temperature.

PowerWise is a more cost effective solution for devices such as LED fixtures that do not require 10 G data speeds. PowerWise 1G PoE cable combines the power efficiency of 22 gauge copper with the cost benefit of CAT 5e as compared to 22 gauge CAT 6 or CAT 6A cable.

The cable has an outer diameter of only 0.23 inches and is available for both riser and plenum applications. CMP rated conductors are 100% FEP insulated to guarantee performance over the life of your system. Both CMP and CMR are offered in eight colors.


  • UL Certified Environmental Product Declaration (EPD)
  • Health Product Declaration™ (HPD™)
  • Guaranteed 0.3 dB headroom for IL, ACR and PSACR
  • Tested 350 MHz
  • Tested in most severe temperature conditions in bundle of 100 cables
  • CableID® alpha numeric code printed every 2 feet
  • QuickCount® marking system in feet and meters
  • ColorTip® circuit identification system
  • HDBaseT Class A and B certified
  • UL LP listed
  • Temperature cable rating: 75°C for CMR
  • AWG 22 insulated wire offers 88% power efficiency and lowest temperature increase inside a bundle, the best of its class

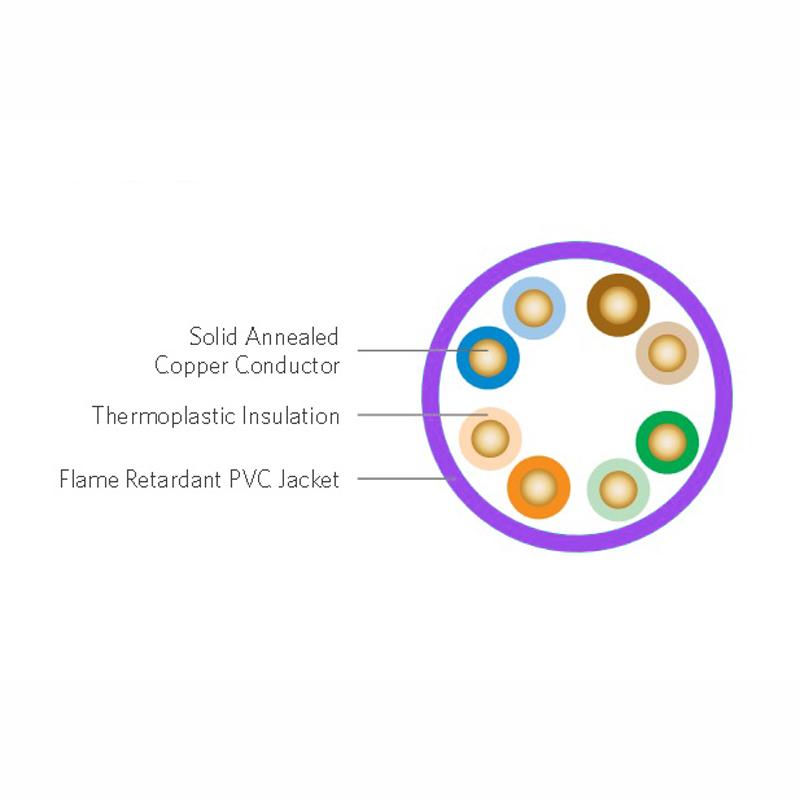

Pair Count
  • 4
  • Solid annealed copper
AWG (mm)
  • 22 (0.64)
  • CMR: Polyolefin
Insulation Colors
  • Pair 1: ColorTip Light Blue, Blue
  • Pair 2: ColorTip Light Orange, Orange
  • Pair 3: ColorTip Light Green, Green
  • Pair 4: ColorTip Light Brown, Brown
  • CMR: Flame retardant (FR) PVC
  • Characteristic Impedance
  • 100 ± 15
Nominal Velocity of Propagation %
  • CMR: 71
Performance Compliance
  • UL 444
  • CSA C22.2 No. 214-08
  • UL 1666
  • NFPA 262
  • ANSI/TIA-568-C.2
  • ANSI/ICEA S-90-661-2012
  • Article 800, NEC (NFPA 70)
  • HDBaseT Class A and B
NRTL Programs
  • UL Verified CAT 5e
  • UL listed CMR-LP (0.5)
  • c(UL) listed CMR
  • HDBaseT Certified
  • UL Certified EPD
  • HPD
  • USGBC® Member
  • RoHS-compliant/RoHS 2-compliant
  • REACH-compliant
