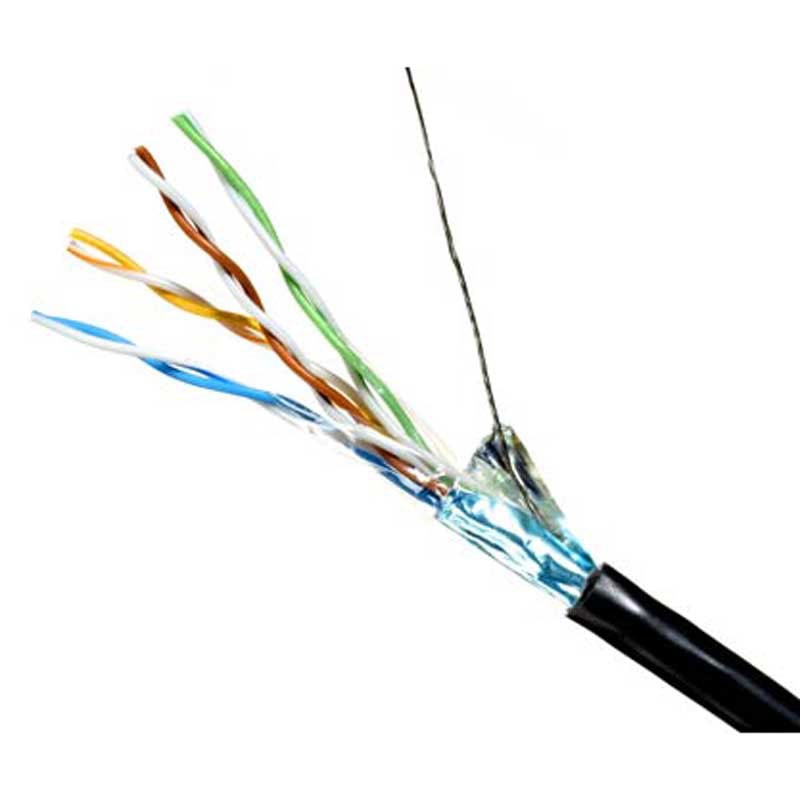

Quabbin Wire 5710 DataMax Extreme Shielded Cat5e Cable (1,000ft)

$688.00
Reference#: 72613
Item#: QU-5710



Description

DataMax® Extreme, flame retardant 4 pair, 26 AWG stranded, 1000ft, polyolefin insulation, cabled with overall clear polyester tape and foil/drain wire shield. Black pressured polyurethane jacket. For assembly of ScTP Cat 5e patch/jumper cords for use in hazardous industrial environments. RoHS compliant

Features



Listing and Ratings:

- Plug-to-plug channel 80 meters Max.

- Exceeds ScTP TIA Cat 5e and ISO Class D requirements

- Temperature rating: 75 C Max., -40 C Min.

- IP-67 cord rating with proper termination and connectors

Notes:

* Jacket may be over-molded

* Consult factory for thermal, mechanical, flex-life, and chemical resistance data

* See P/N 5730 for double shielded version

Specification



Construction Details:

Cond. Stranding: 26 AWG 7/34 tinned

Insul/Thickness: Polyolefin .010 inch (.25 mm)

Jacket/Thickness: Polyurethane (pressured) .022 inch (.56 mm)

Jacket Color: Black

Nom. Diameter: Max. 0.220 inch (5.59 mm)

Color Code:

1 - White/Blue X Blue

2 - White/Orange X Orange

3 - White/Green X Green

4 - White/Brown X Brown

Shielding: Aluminized polyester foil with 26 AWG stranded drain wire in

Package Weight: 26 lb/K ft
