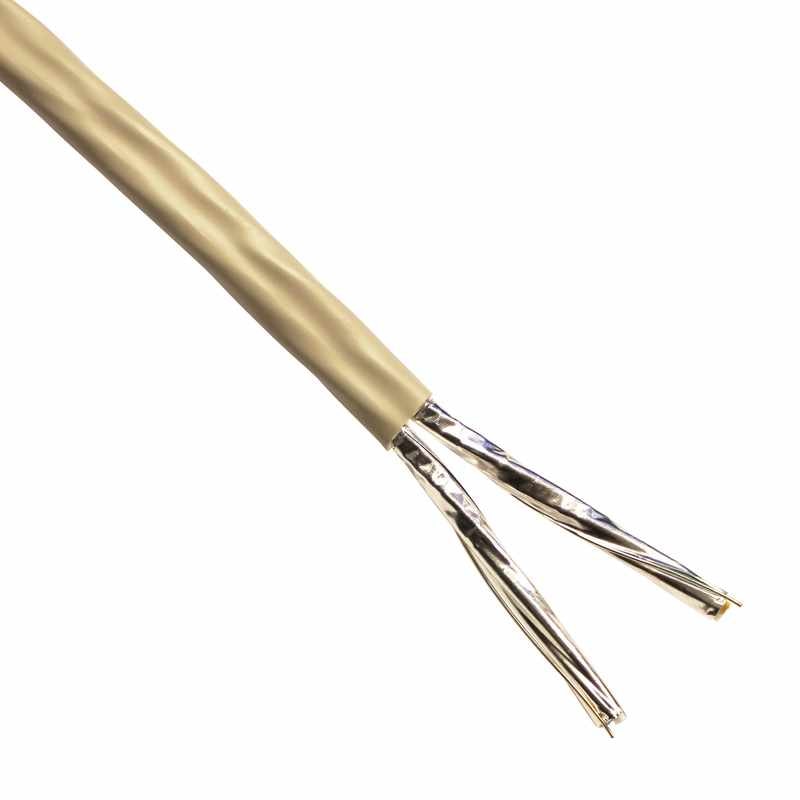

Quabbin Wire T1 Cable (1,000 ft)

Reference#: 72615
Item#: QU-9720


1,000 ft of DataMax T-1, 2 pair, 22AWG solid, 2-layer insulation, beige oval PVC jacket, each pair shielded. For T-1 (DS-1) or xDSL interconnection within and from Central Office environments using modular connectors. ANSI T1.403 and T1.102 compliant to 200 meters. RoHS compliant.


Listing and Ratings

NEC and CEC Type CMR

Attenuation -5.5 dB/1000ft @ 772 KHz

Telcordia GR 137-CORE compliant

Reduces NEBS and FCC system emissions significantly


Conductor Stranding: 22 AWG solid tinned

Insul/Thickness: 2-layer Polyolefin .020 inch (.51 mm)

Jacket/Thickness: Oval PVC .022 inch (.56 mm)

Jacket Color: Beige

Nom. Diameter: 0.178 inch x 0.315 inch (4.52 mm x 8.00 mm)

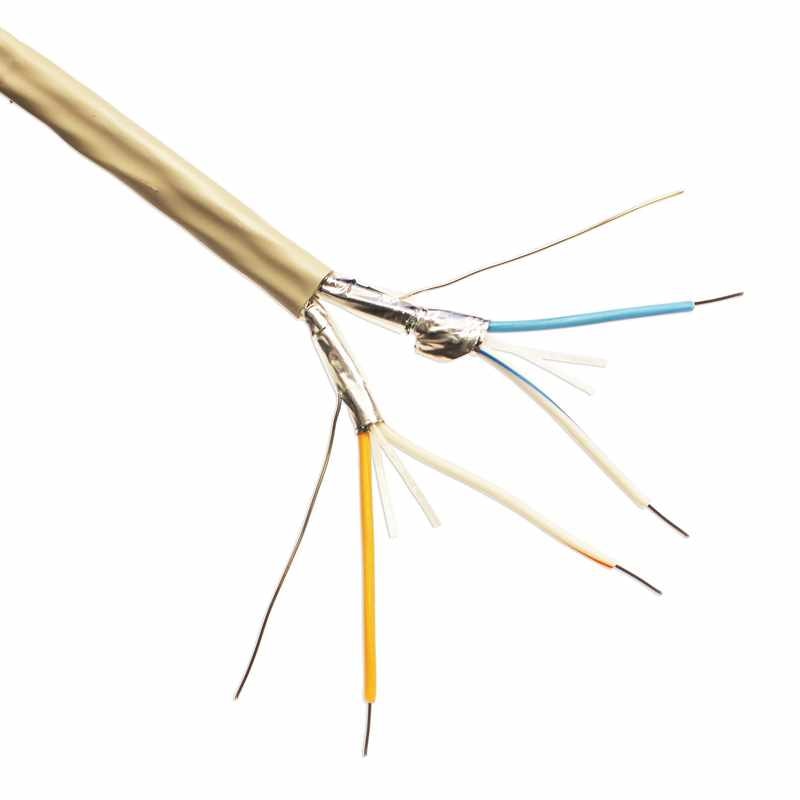

Shielding: Each pair with isolated alum./polyester tape, solid 24 AWG drain wire

Sold Per Thousand
