Specified Technologies EZ PATH Firestop Grommit (10 pack)

Penetrations for one or two small cables can be time consuming, expensive, and messy. EZ-Path® Firestop Grommets make membrane and through-penetrations through rated gypsum board walls a snap. Just drill a hole, run your cable, snap the grommet around the cable, and press it into the wall. Use a single grommet for single sided (membrane) penetrations, or drill a hole through both sides of the wall and install grommets back-to-back for through-penetrations.

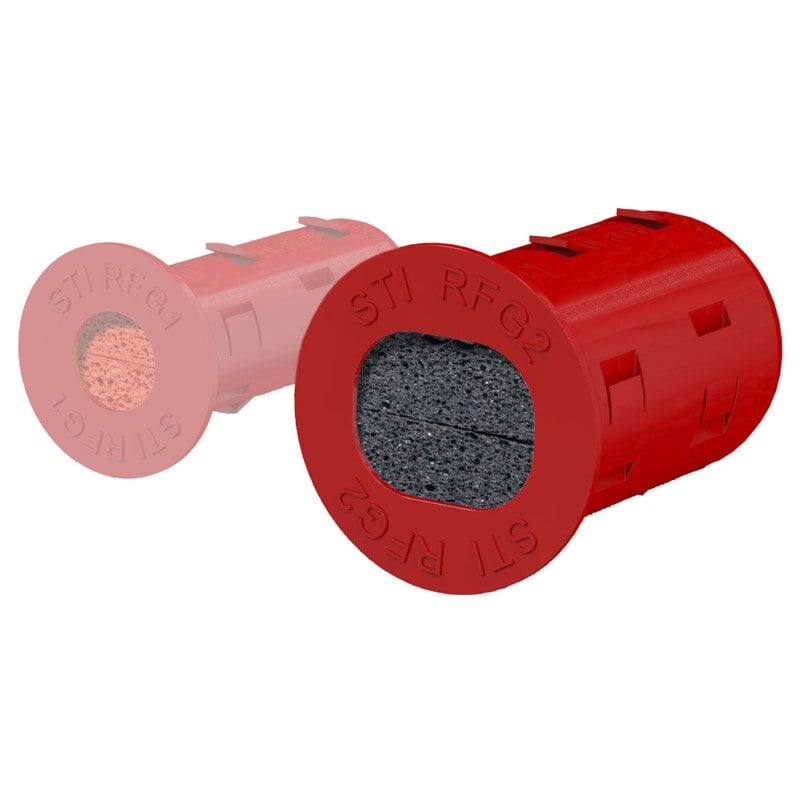

The RFG2 EZ-Path® Firestop Grommet is molded from a premium grade plenum-rated polymer. A soft foam inner core conforms to the cable to form a tight seal. The cable is smoke-sealed and firestopped in just minutes with no sleeve, sealant, or putty required!

Performance:
EZ-Path® Firestop Grommets were tested to meet the exacting criteria of ASTM E814 (UL1479) and CAN/ULC S115. Tested systems provide up to 2 hr fire ratings for small cable penetrations in gypsum board/stud wall assemblies.

Specifications:
For small cables penetrating gypsum board/stud wall assemblies, the firestop shall consist of a molded, two-piece grommet having a foam fire and smoke sealing membrane that conforms to the outside diameter of the individual cable. The grommet product shall be capable of locking into place to secure the cable penetration within the wall assembly. The grommet shall be UL Classified and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC S115.

Maintenance:
Installations should be inspected periodically for subsequent damage. Any damage should be repaired using SpecSeal® products.
