AFL Splice-on-Connector Tool-Kit (35S Splicer + Accessories)

$4,399.99
Reference#: 77934
Item#: AF-S018513



Description

AFL’s Splice-on-Connector Tool-Kit is the advanced solution for 900 μm fiber splicing on connectors. This Tool-Kit is exclusively used for 900 μm coating diameter, splice-on-connector applications but can be utilized for splicing of fiber-to-fiber of coating diameters ranging from 160 μm to 3 mm. The simultaneous fiber preparation capability is targeted to 250 μm coating diameters.

All-in-one cost-saving kit: Contains the lightweight, cost-effective, time-saving, and strong cladding alignment Fujikura 35S Fusion Splicer, the CT-16 Cleaver, best-in-line One-Click® cleaners, and preparation accessories such as Kevlar sheers, wipes, cleaning solution and many more.

Significant splicing cycle time reduction: AFL’s Fujikura 35S cladding alignment fusion splicer excels in small to mid-fiber count applications, featuring simultaneous fiber prep, sheath clamp automation, automated wind protector, and faster tube oven heating. This reduces fusion splicing cycle time by ~30% or more. The hand-held fiber coating stripper is capable of stripping two 250 μm coated fibers in one pass. AFL’s CT-16 cleaver is best known for its durable construction, lightweight form factor, easily replaceable cleaver blades, and one-click cleaver action.

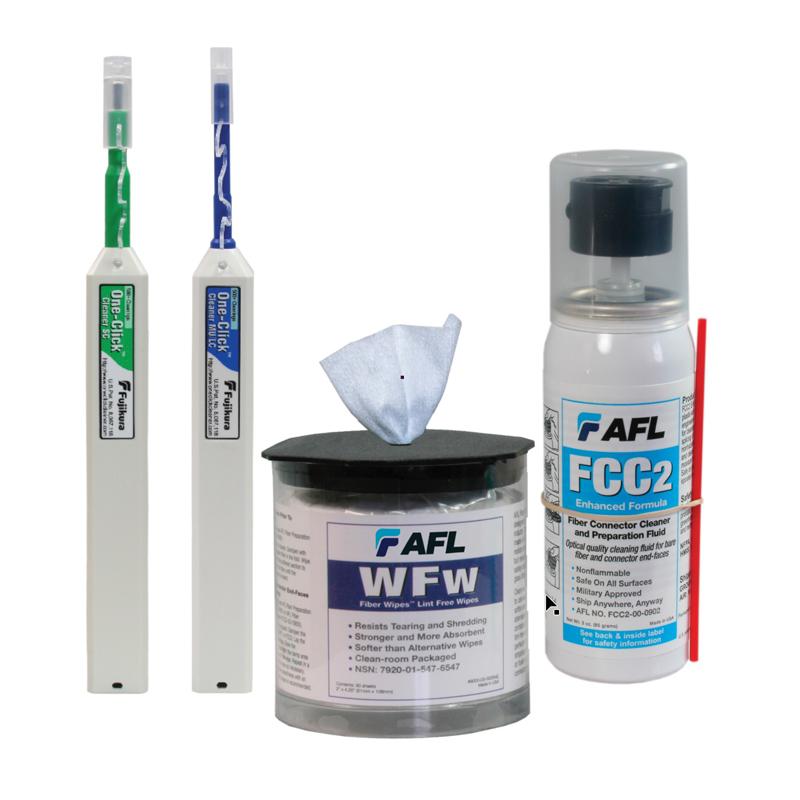

Pro-level cleaning supplies: The cleaning supplies provided in this kit are top-of-the-line Fujikura One-Click cleaners for both LC and SC style needs, FCC2 Enhanced Fiber Connector Cleaner and Preparation Fluid for easy and safe cleaning, and lint-free cleaning wipes.

Ergonomic and user-friendly: Keeping users in mind, AFL’s Fujikura splicer is designed ergonomically for the best user experience. It features an adjustable touchscreen mirror to work in abnormal positions, a compact size suitable for small tight spaces, and automatic fiber placement error adjustments. The machine can adjust the fiber automatically over the v-grooves without manual intervention. Additionally, it offers easy access to the battery with the ability to swap it when needed.

Features

  • Comprehensive tool kit for 900µm splice-on-connector (SOC) termination and cleaning
  • Novel simultaneous fiber preparation feature
  • Automatic sheath clamp and wind protector control
  • Compact, lightweight, and cube form factor splicer
  • Fully ruggedized for shock, moisture, and dust resistance
  • Pro-level Cleaning Supplies

Specification

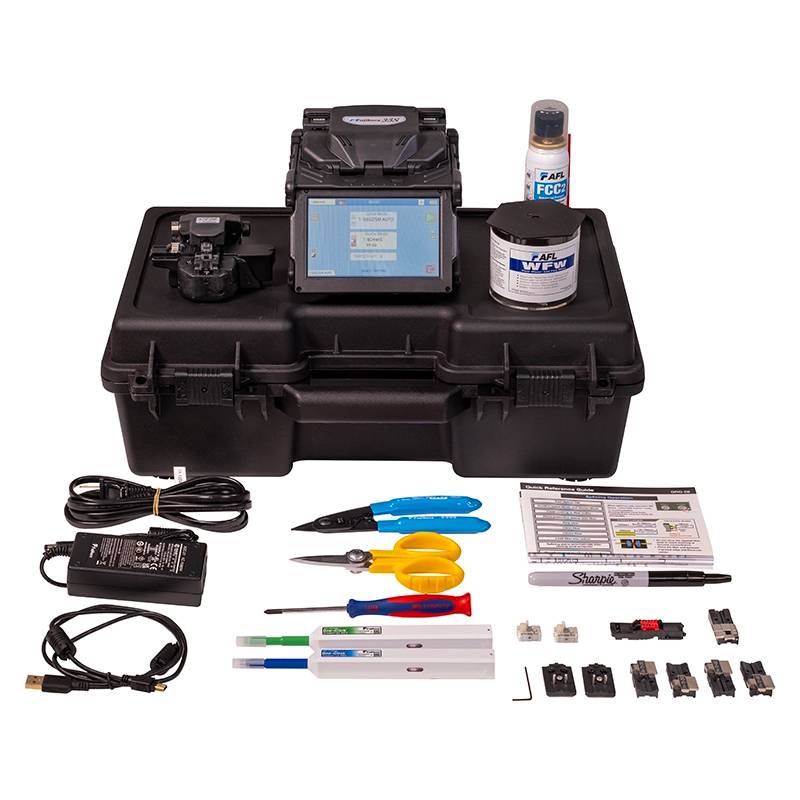

Kit Includes:

  • Fujikura 35S Fusion Splicer

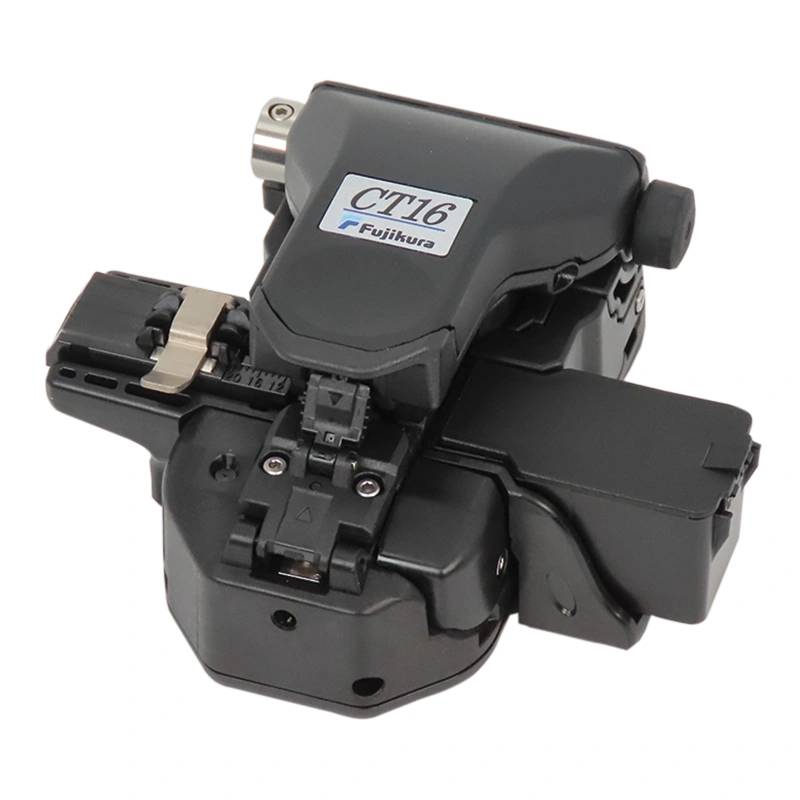

  • CT-16 Cleaver (1)

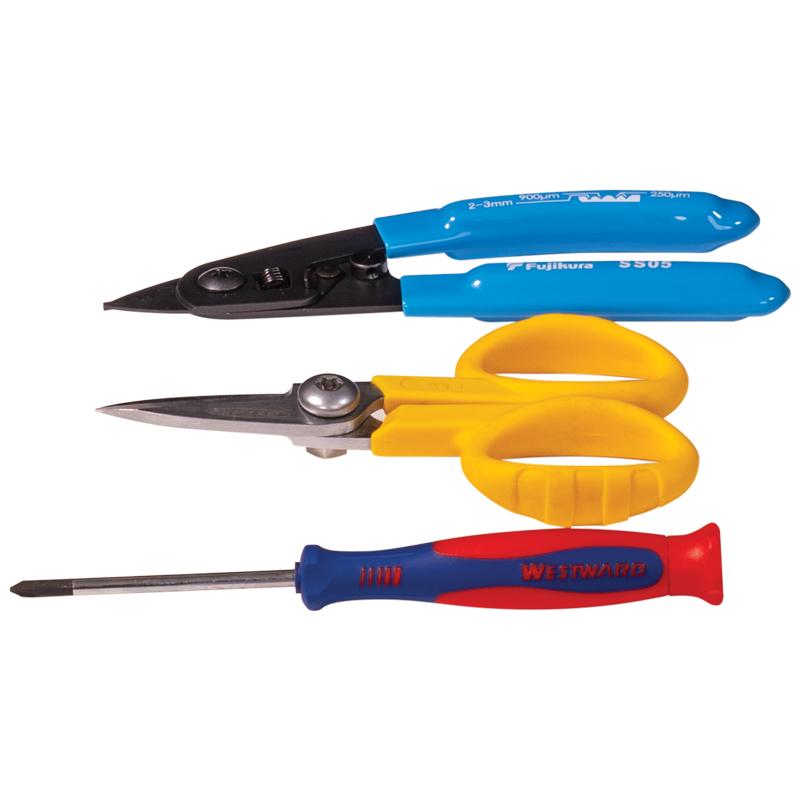

  • SS-05 Dual Fiber Stripper (1)
  • 1 pair each FH-70-250 (1) and FH-70-900 Fiber Holders (1)
  • SP-04 Set Plates
  • ELCT2-16B Spare Electrodes (Pair) (1)
  • ADC-21 AC Adapter (1)
  • BTR-17 Battery Pack (installed) (1)
  • ACC-09 Power Cord (1)
  • USB-01 USB Cable (1)
  • CC-44 Transit Case (1)
  • Cotton Swabs (4 packs of 25 units)
  • One-Click Cleaner LC (1)
  • One-Click Cleaner SC (1)
  • Kevlar Shears (1)
  • AFL Cleaning Wipes (1)
  • Fiber Cleaning Fluid (1)
  • FH-FC-900 Fiber Holder (0.9 mm cable) (1)
  • Mechanical Splicer Holder 250 um (1) and 1 pair of Loose Tube Sheath Clamps (1)
  • 1-year factory warranty and instruction manual downloaded from splicer
