Bud Industries SNB-3734 Weatherproof Metal NEMA Enclosure - 12" x 12" x 8"

$87.00
Reference#: 72775
Item#: SNB-3734



Description

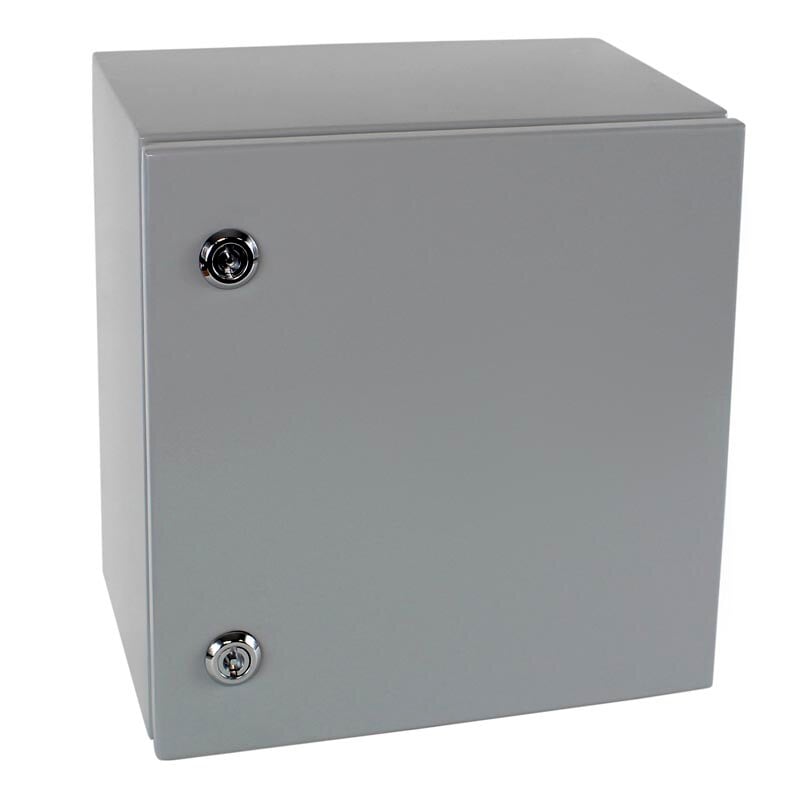

The Bud Industries SNB-3734 is a weatherproof metal NEMA 4 enclosure constructed of 16 ga. steel (exact size is 11.81" x 11.81" x 7.87").

  • Continuous seam welded 16 ga. steel construction

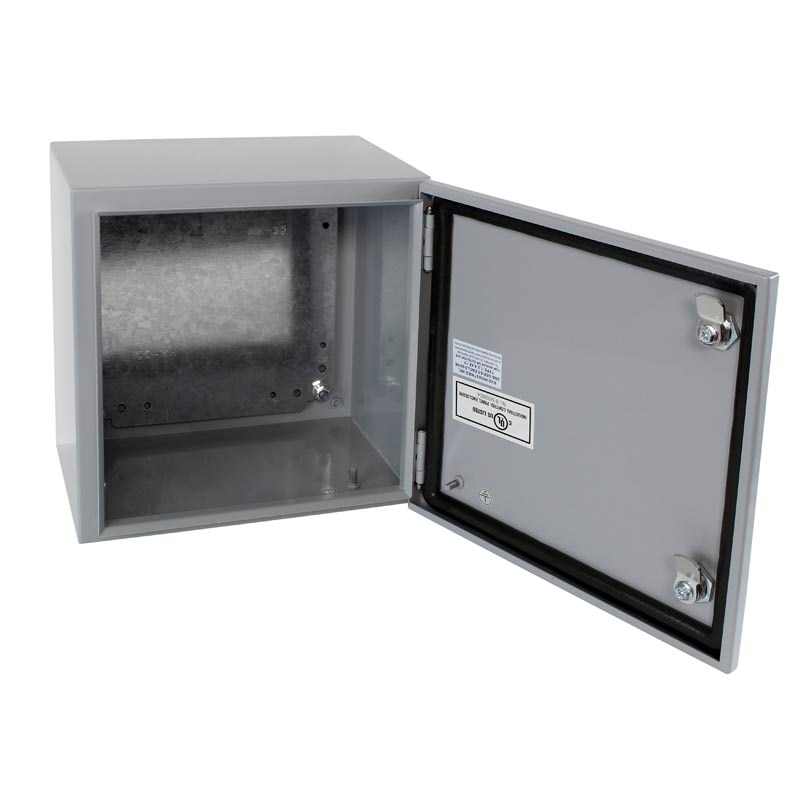

  • Hinged cover clamps to the base with keyed quarter turn latch for a watertight seal
  • External mounting brackets allow box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment
  • Bonding studs for grounding are provided on base and door

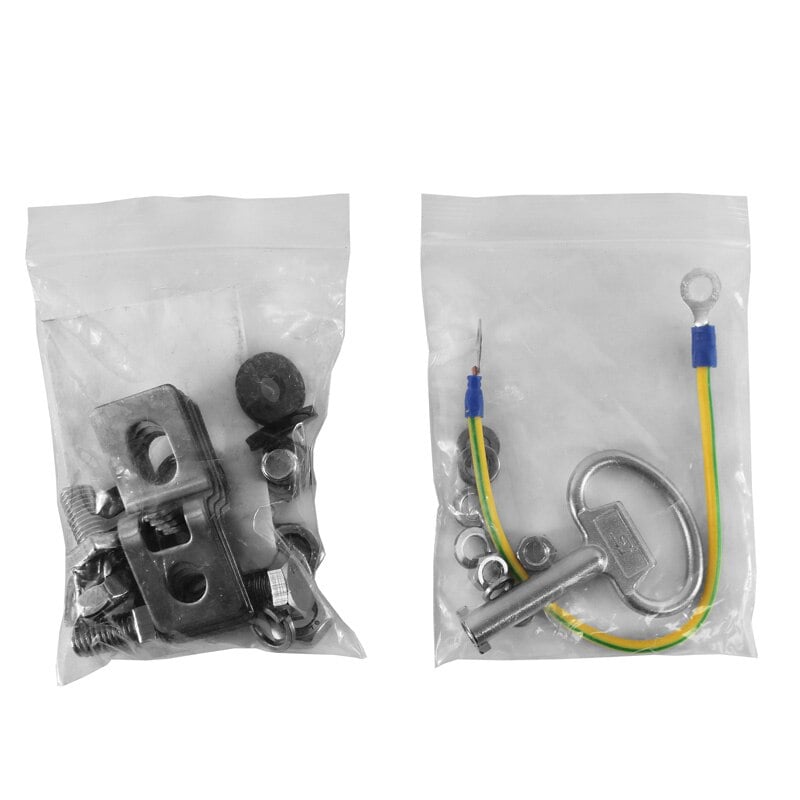

  • Internal panel and hardware included
  • UL Listed Type 1, 2, 4, 4X and 12. IP65 and IP66 ratings
  • Easily machined and modified to your particular requirements
  • Finish: Smooth Gray powder coat, Internal Panel - Clear Zinc plate

    • Features

    • Rigid door design
    • Continuous gasket
    • Bar folded flange to enhance seal performance
    • Additional rubber washer inside mounting brackets to enhance water resistant seal

    Specification

    External Dimensions (Base)

    • Height - 11.81"
    • Width - 11.81"
    • Depth - 7.87"
    Wall Mounting Dimensions
    • Height - 13.11"
    • Width - 10.35"
    Internal Panel Dimensions
    • Height - 10.43"
    • Width - 9.84"
