Bud Industries SNB-3739-SS Stainless Steel Weatherproof Metal NEMA Enclosure - 8" x 8" x 4"

Reference#: 76578
Item#: SNB-3739-SS

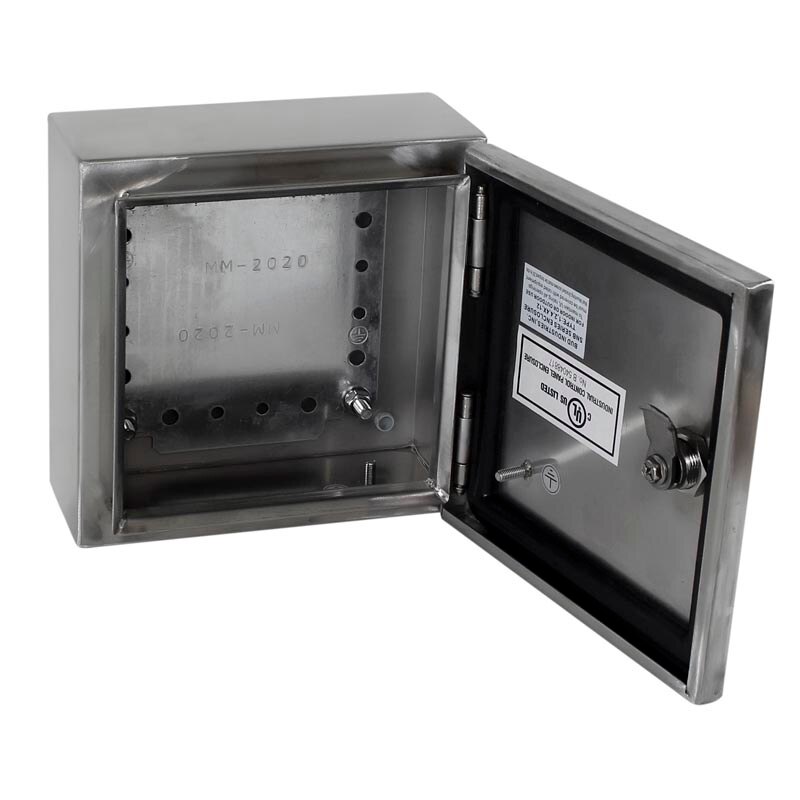

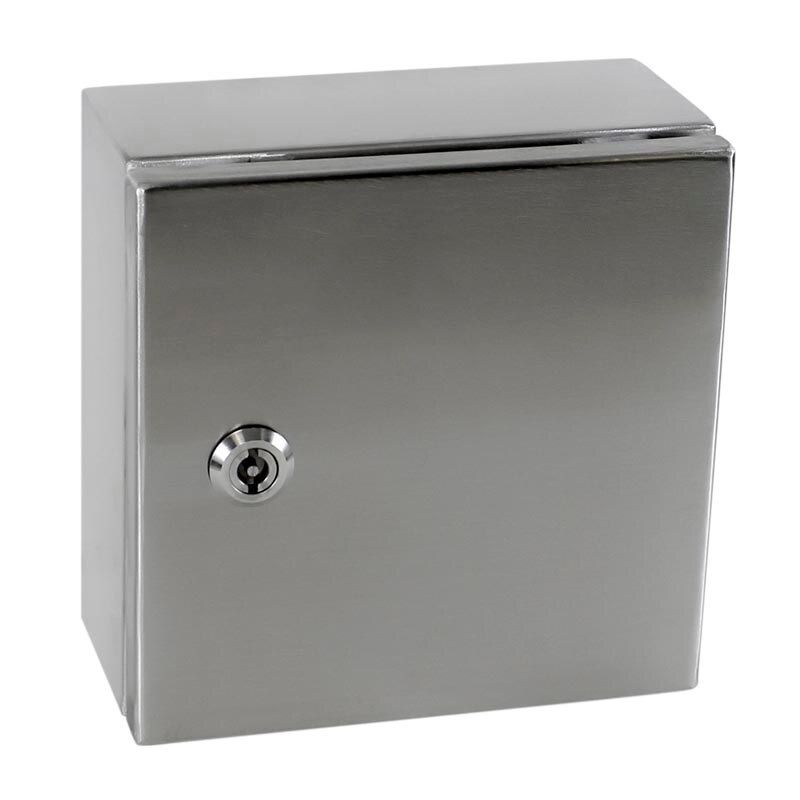

The Bud Industries SNB-3739-SS Stainless Steel NEMA enclosure maximizes protection of sensitive electronics and critical electrical controls (exact size is 7.87" x 7.87" x 3.98"). Constructed of 16 gauge 304 stainless steel, this new NEMA box is ideal for harsh environments and applications where sturdy steel, security, and a seal against moisture are required. It is suitable for outdoor applications such as wind turbines and solar power systems, as well as for housing industrial controls in wash-down, marine, and corrosive environments in the food or medical industries. The SNB-3739-SS has continuous welded seams and a hinged cover that has a water-tight seal. The hinged cover clamps to the base with a keyed quarter-turn latch that requires a non-traditional key for added security. External mounting brackets allow the box to be mounted on a wall or panel without having to remove the cover and expose internal components to the environment. Enclosures are designed to meet NEMA 1, 2, 4, 4X, 12, and 13 requirements.


  • Continuous Seam Welded 16 Gauge Steel or Stainless Steel Construction
  • Hinged Cover Clamps to the Base with Quarter-Turn Latch for a Water-Tight Seal

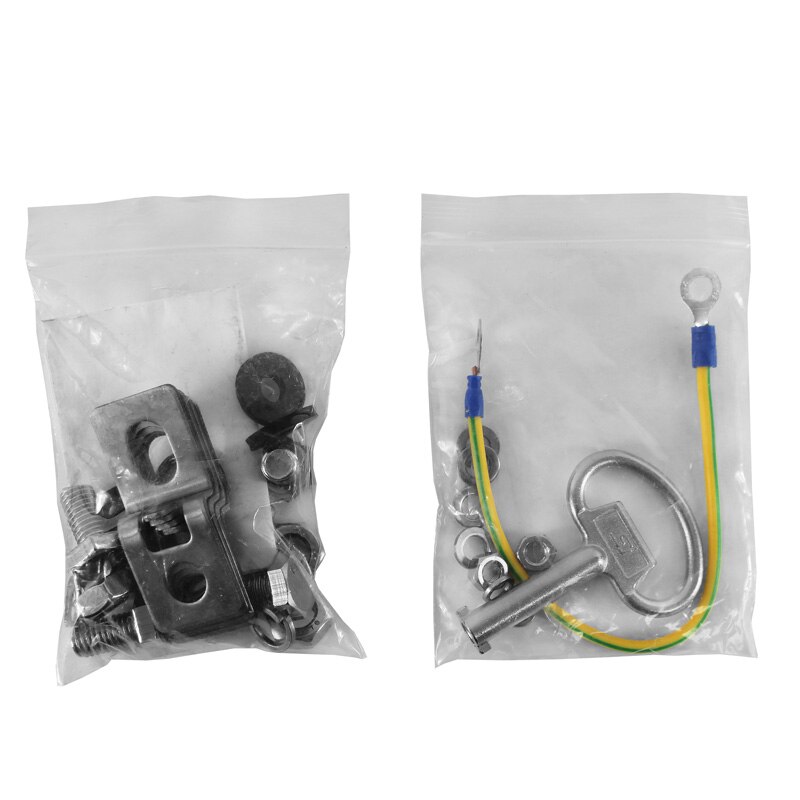

  • Internal Panel and Hardware Included
  • UL Listed Type 1, 2, 4, 4X, and 12; IP66 Rating
  • Finish: Natural Stainless steel, Internal Panel - Clear Zinc plate
  • Specification

    • SNB Series
    • Gray
    • Smooth Wall
    Cover Locking
    • Quarter-Turn Latch
    Cover Mounting
    • Hinged
    • 7.87 x 7.87 x 3.98 In. (200 x 200 x 101 mm)
    Enclosure Mounting
    • Wall Mount
    • Smooth Gray Powder Coat
    IP Rating
    • IP66
    • Steel
    NEMA Rating
    • 13
    • Small
    Size, Approximate Depth
    • 4" (102mm)
    Size, Approximate Height
    • 8" (203mm)
    Size, Approximate Width
    • 8" (203mm)
    • Junction Box
