Bud Industries SNB-3741 Weatherproof Metal NEMA Enclosure - 10" x 8" x 4"

$63.95
Reference#: 76515
Item#: SNB-3741



Description

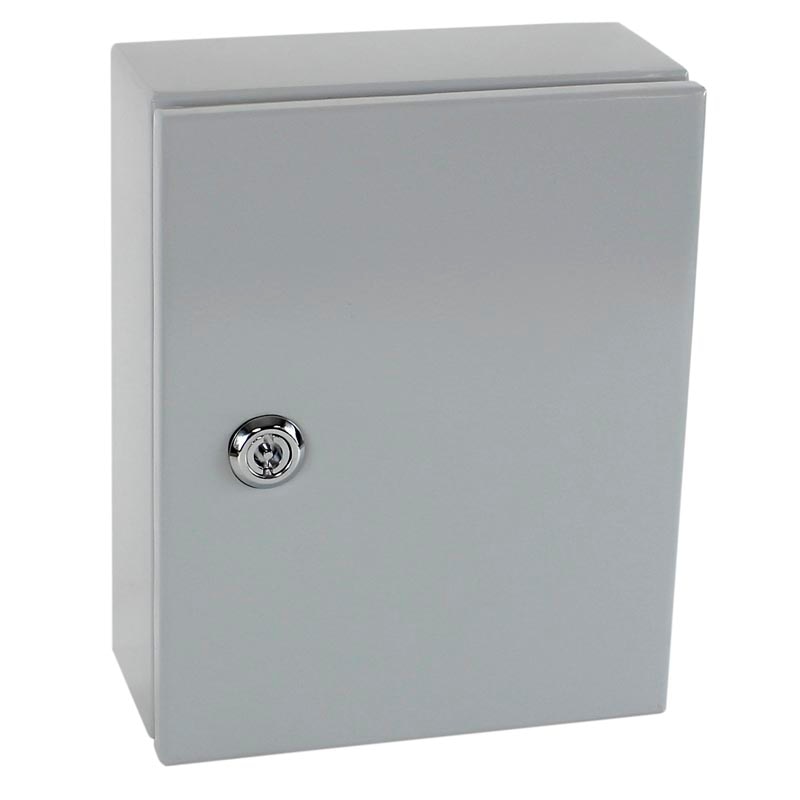

The Bud Industries SNB-3741 is a weatherproof metal NEMA 4 enclosure constructed of 16 ga. steel (exact size is 9.84" x 7.87" x 3.98").

  • Continuous seam welded 16 ga. steel construction
  • Hinged cover clamps to the base with keyed quarter turn latch for a watertight seal
  • External mounting brackets allow box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment
  • Bonding studs for grounding are provided on base and door

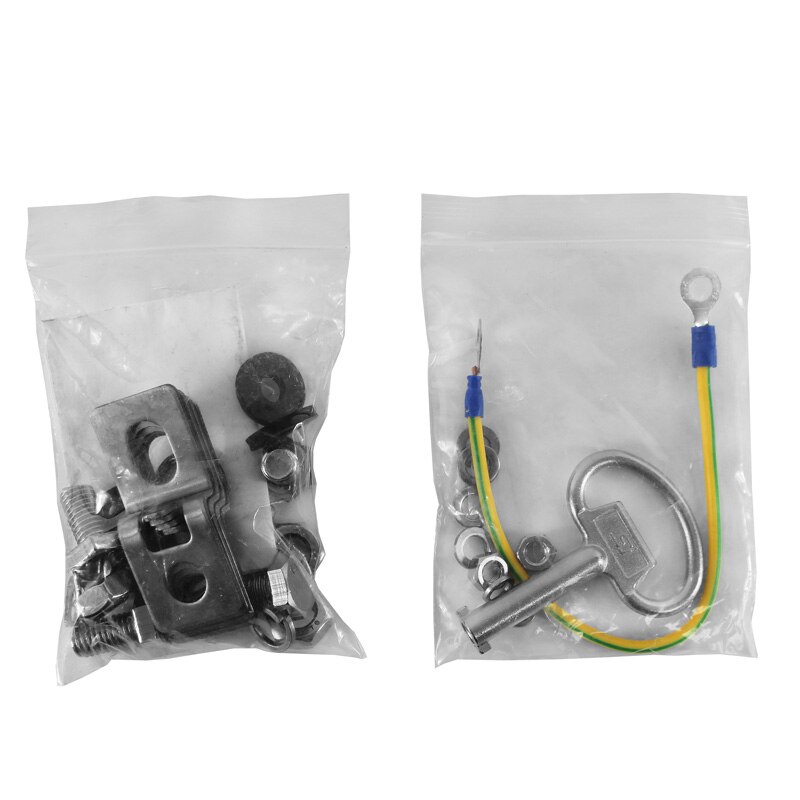

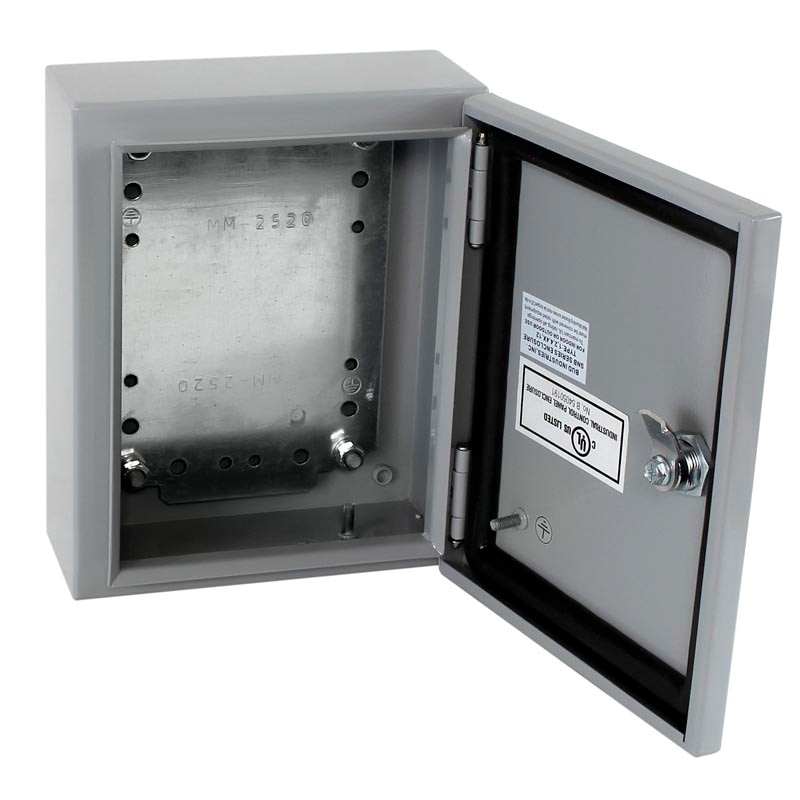

  • Internal panel and hardware included
  • UL Listed Type 1, 2, 4, 4X and 12. IP65 and IP66 ratings
  • Easily machined and modified to your particular requirements
  • Finish: Smooth Gray powder coat, Internal Panel - Clear Zinc plate

    • Features

    • Rigid door design
    • Continues gasket
    • Bar folded flange to enhance seal performance
    • Additional rubber washer inside mounting brackets to enhance water resistant seal

    Specification

    External Dimensions (Base)
    • Height - 9.84"
    • Width - 7.87"
    • Depth - 3.98"

     Wall Mounting Dimensions
    • Height - 11.14"
    • Width - 6.42"

     Internal Panel Dimensions
    • Height - 8.46"
    • Width - 5.91"
