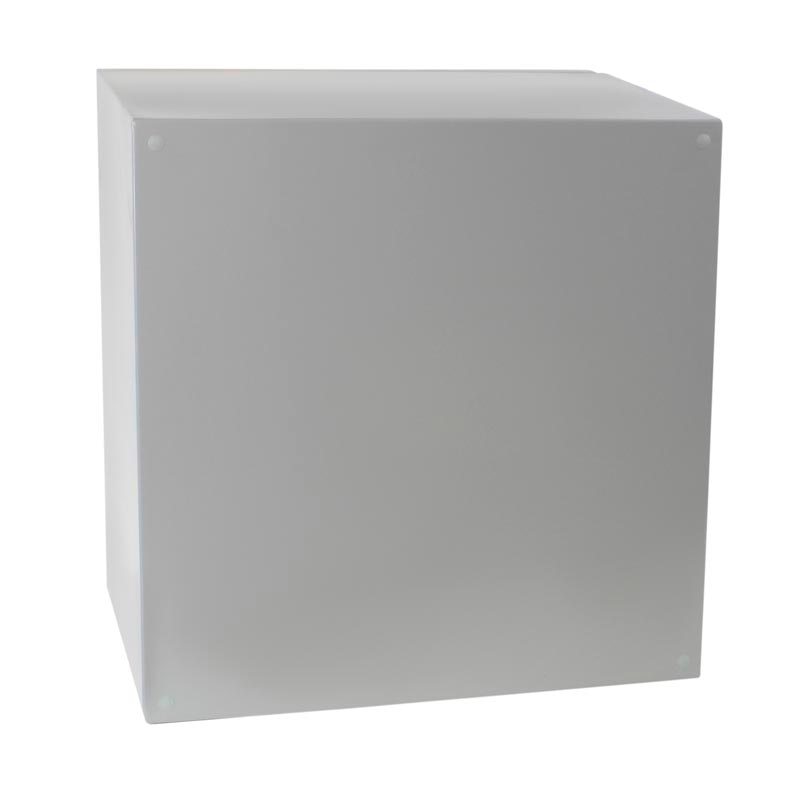

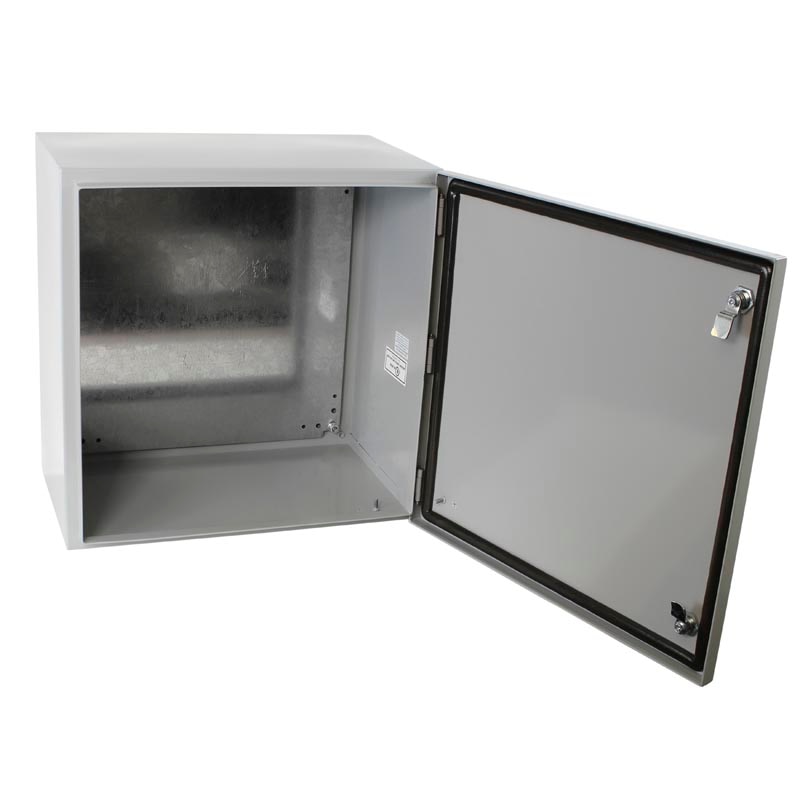

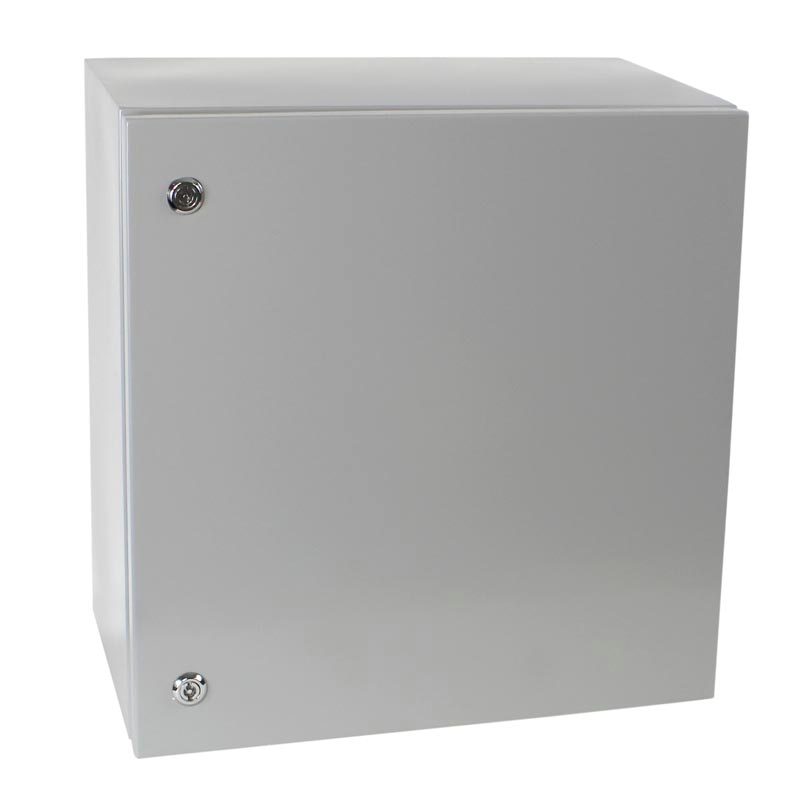

Bud Industries SNB-3749 Weatherproof Metal NEMA Enclosure - 20" x 20" x 12"

$248.00
Reference#: 76517
Item#: SNB-3749



Description

The Bud Industries SNB-3749 is a weatherproof metal NEMA 4 enclosure constructed of 16 ga. steel.

  • Continuous seam welded 16 ga. steel construction
  • Hinged cover clamps to the base with keyed quarter turn latch for a watertight seal
  • External mounting brackets allow box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment
  • Bonding studs for grounding are provided on base and door

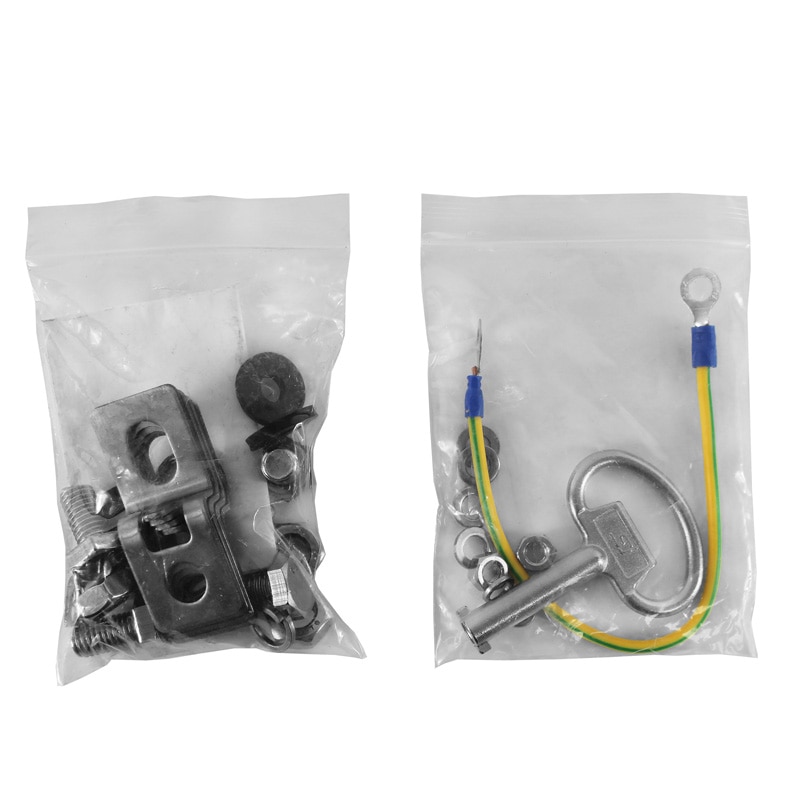

  • Internal panel and hardware included
  • UL Listed Type 1, 2, 4, 4X and 12. IP65 and IP66 ratings
  • Easily machined and modified to your particular requirements
  • Finish: Smooth Gray powder coat, Internal Panel - Clear Zinc plate

    • Features

    • Rigid door design
    • Continues gasket
    • Bar folded flange to enhance seal performance
    • Additional rubber washer inside mounting brackets to enhance water resistant seal

    Specification

    External Dimensions (Base)
    • Height - 20"
    • Width - 20"
    • Depth - 12"

     Wall Mounting Dimensions
    • Height - 21.27
    • Width - 18.54

     Internal Panel Dimensions
    • Height - 18.62
    • Width - 18.03
