Bud Industries SNB-3754 Weatherproof Metal NEMA Enclosure - 24" x 24" x 10"

$316.00
Reference#: 73279
Item#: SNB-3754



Description

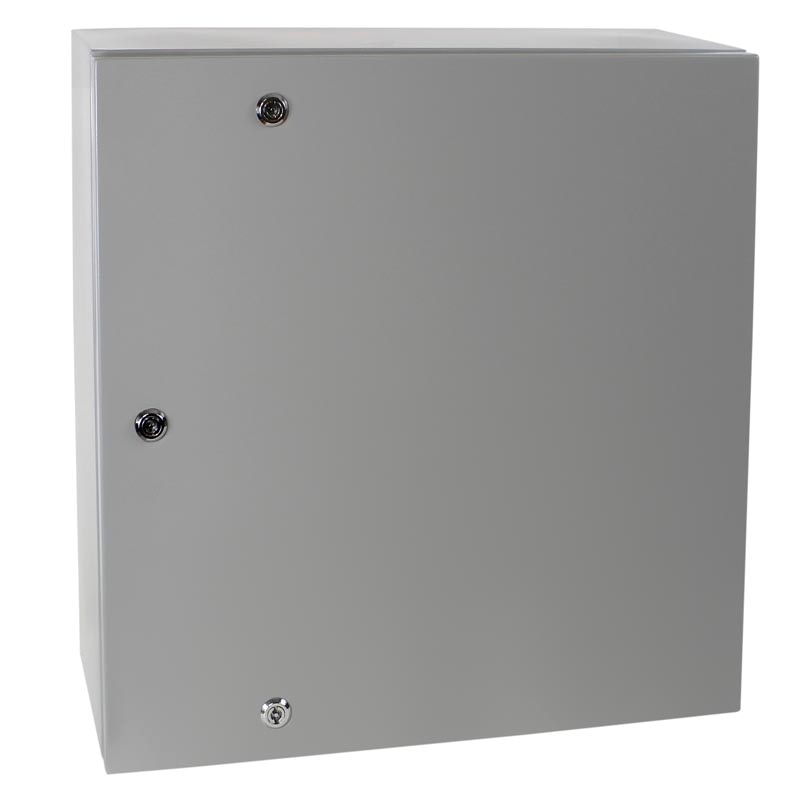

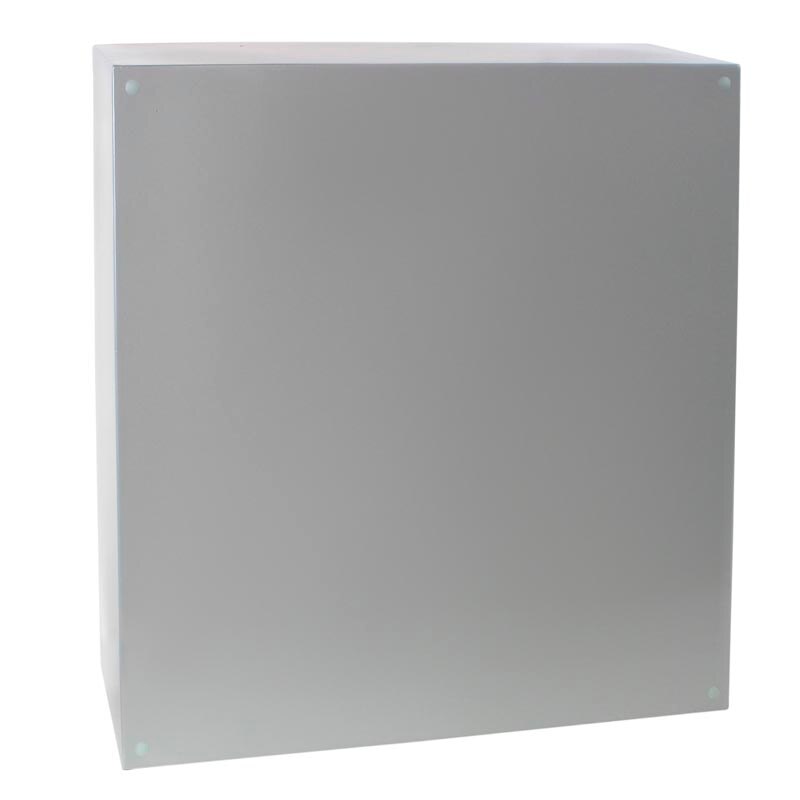

The Bud Industries SNB-3754 is a weatherproof metal NEMA 4 enclosure constructed of 16 ga. steel.

  • Continuous seam welded 16 ga. steel construction
  • Hinged cover clamps to the base with keyed quarter turn latch for a watertight seal
  • External mounting brackets allow box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment
  • Bonding studs for grounding are provided on base and door

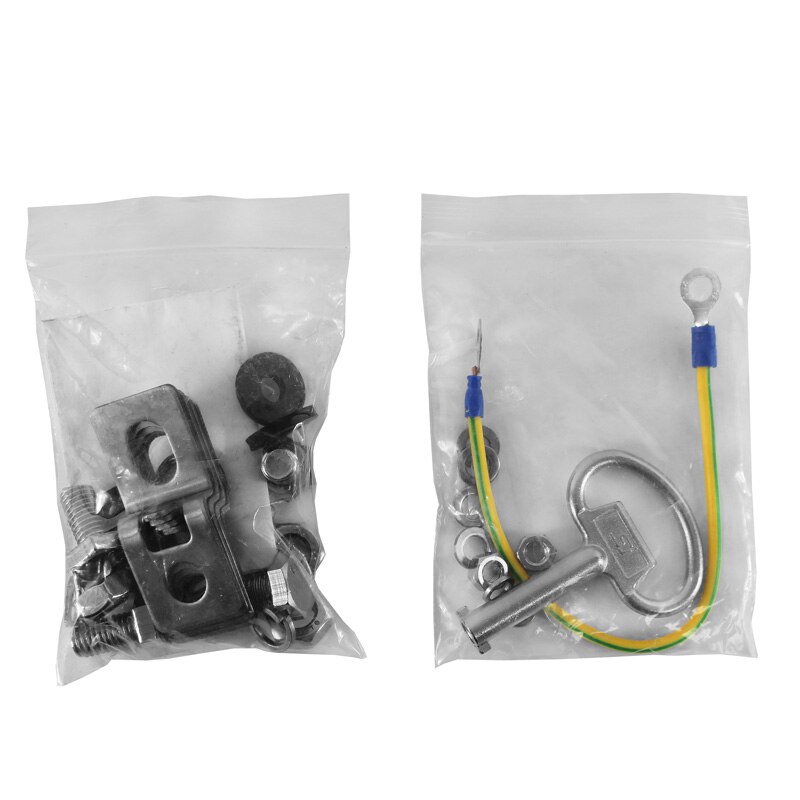

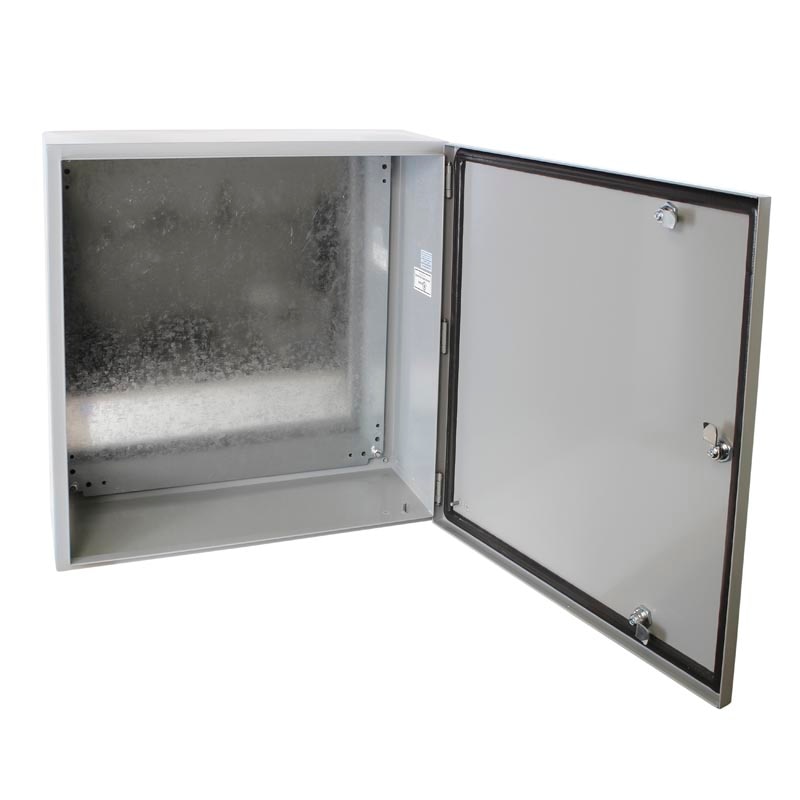

  • Internal panel and hardware included
  • UL Listed Type 1, 2, 4, 4X and 12. IP65 and IP66 ratings
  • Easily machined and modified to your particular requirements
  • Finish: Smooth Gray powder coat, Internal Panel - Clear Zinc plate

    • Features

    • Rigid door design
    • Continuous gasket
    • Bar folded flange to enhance seal performance
    • Additional rubber washer inside mounting brackets to enhance water resistant seal

    Specification

    External Dimensions (Base)
    • Height - 24"
    • Width - 24"
    • Depth - 10"

     Wall Mounting Dimensions
    • Height - 25.27
    • Width - 22.54

     Internal Panel Dimensions
    • Height - 22.62
    • Width - 22.03
