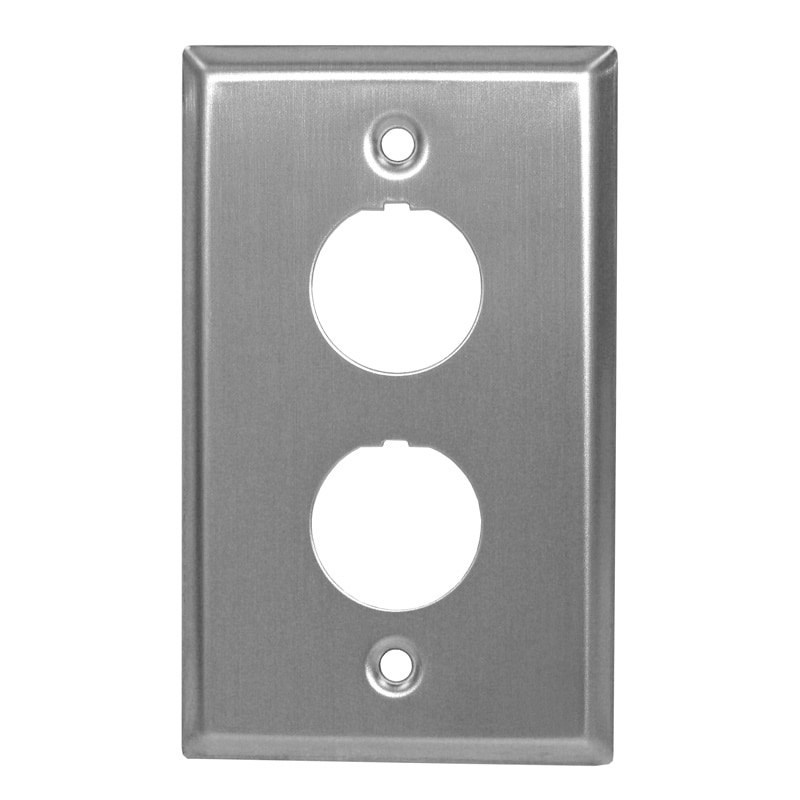

Signamax 2-Port Industrial Grade Stainless Steel Faceplate

$6.75
Reference#: 76604
Item#: SG-SSKFIG-2



Description

Single-gang industrial faceplates are available in a 1- or 2-port version and accept both category 6 and category 5e Industrial Jacks. Faceplates are supplied with a rear sealing gasket and mounting screws. Faceplates are IP44 rated.

Features

  • Single-gang design
  • 1- and 2-port versions
  • Compatible with all Signamax Industrial Jacks
  • Stainless steel
  • IP44-rated when used with Signamax Industrial Grade Jacks

Specification

Dimension

  • Faceplate:  2.75" W x 4.50" H (69.9mm x 114.3")
  • Box: 2.63" D x 5.0" H (66.8mm x 127mm x 127mm)


Mounting Dimensions

  • Panel Opening(s): 1.125" Ø (14.7mm)
  • Screw Distance: 3.28" (83.3mm)


Construction

  • Faceplate: Stainless steel with rubber gasket
  • Cover: Stainless steel
  • Box: High impact thermoplastic, UL94V-0 fire retardant with rubber gasket
