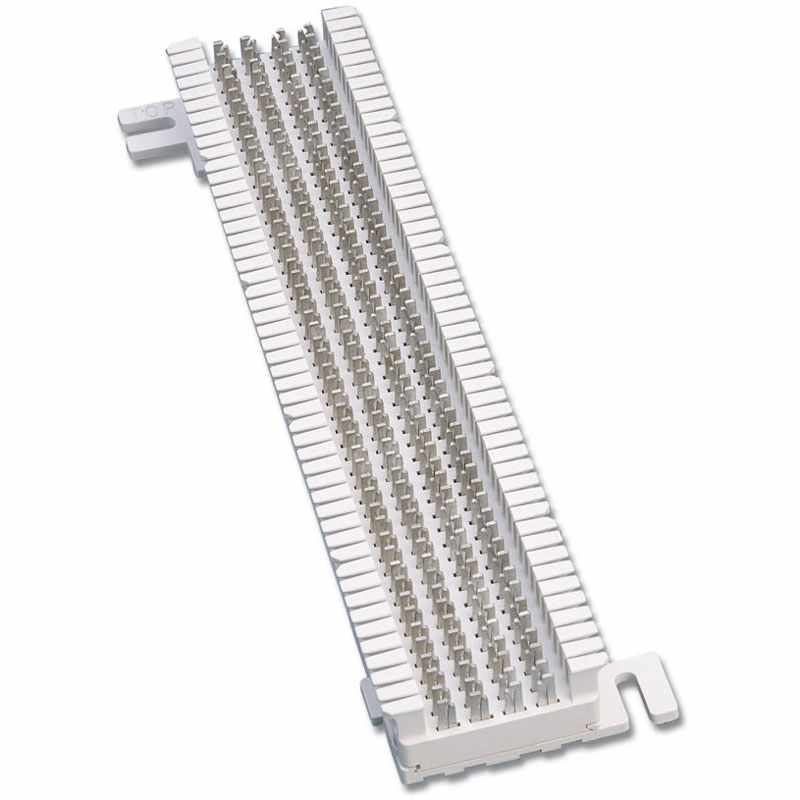

Siemon S66M1-50 66 Block, 50 Pair

$18.95
Reference#: 72765
Item#: SI-S66M1-50



Description

The Siemon S66M1-50 is fully compatible with all industry-standard accessories (sold separately) while providing a proven, economical solution for terminating high-performance cable. The wide range of mounting accessories allows the S66M1-50 to be installed in almost any environment.

Features

  • VoIP (Voice Over Internet Protocol) and 1000BASE-T Ready — Ideal for use with all category 5e applications including VoIP and Gigabit Ethernet
  • Wide AWG Range
  • Durable Design — High impact flame retardant thermoplastic
  • Integral Jumper Management — Fanning strips provide management for horizontal cabling and cross-connect jumper wires and provides a labeling surface for circuit identification
  • S89 Compatible — Mounts to S89 series stand-off brackets to provide space for routing cables behind each block

Specification

  • Terminates 22 - 26 AWG (0.81 - 0.41mm) solid insulated cable or 18 - 19 AWG (1.02 - 0.91mm) solid stripped cable
  • Height: 254mm (10 in.)
  • Width: 86.4mm (3.4 in.)
  • Depth: 30.5mm (1.2 in.)
