Signamax Cat5e Field-Installable Shielded Modular Plug

Signamax KRJS45FT-C5E Field-Installable Shielded (Screened) Modular Plugs are designed for termination of distribution cables and equipment cables connecting directly to such terminal and field devices as security cameras, industrial electronics, and for patching in environments where hardened and reliable connections are required. Plugs are also equipped for termination of stranded or solid conductor cables. PCB-based plug design guarantees high-quality termination in the field, while tool-less termination feature provides quick task completion.

Other Signamax Field Installable Shielded Jacks:
KRJS45FT-C6C Cat6
KRJS45FT-C6A Cat6a

• Guarantees ISO/IEC 11801 and ANSI/TIA-568-C.2 patch cord specifications compliance
• Shielded modular plug offers overall solid-metal shielding design for “360-degree” coverage
• Rated for at least 750 insertion cycles

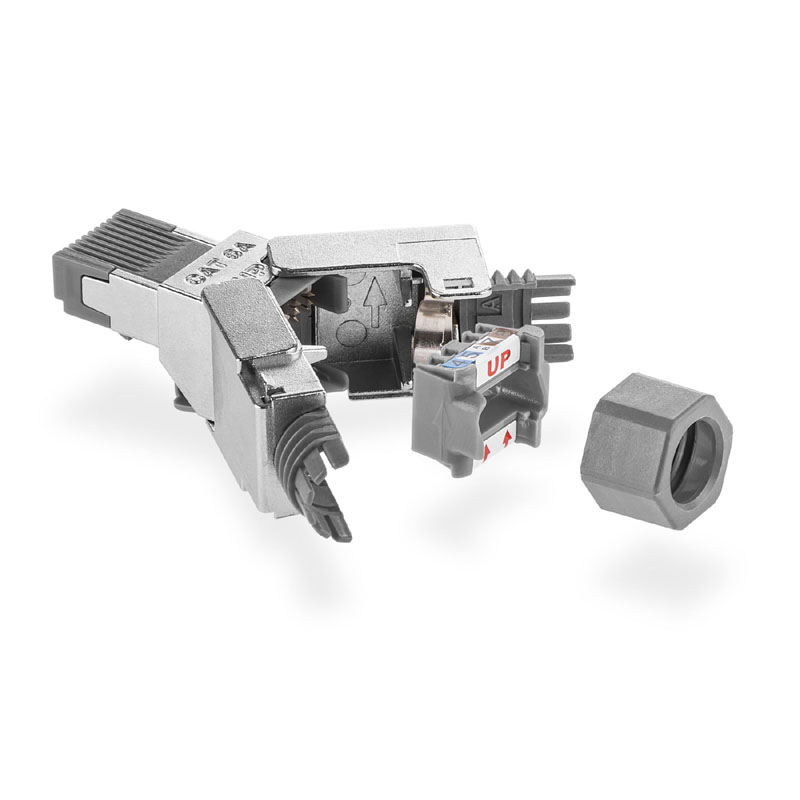

• Toolless field termination
• PCB-based electrical design
• Compatible with solid and stranded conductors
• Easy-to-read T568A/B wiring scheme color-coded label

Transmission Performance:
ANSI/TIA-568-C.2: meet category 5e (1-100 MHz)
IEC/ISO 11801: meet category 5e (1-100 MHz)

Transmission Media
Screened (U/STP, F/UTP, F/STP, S/UTP, S/STP, SF/UTP, SF/STP) twisted pair
Min Cable Diameter: 4 mm (0.16 in)
Max Cable Diameter: 6 mm (0.24 in)

Wiring Scheme
ANSI/TIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)

Electrical
Insulation Resistance: Min 500 MOhm @ 100 Vdc
Dielectric Withstanding Voltage:
1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
1,500 Vdc/ac peak contact-to-panel @ 60 Hz for 1 min (screened only)

Mechanical
Mating Cycle Life: Min 750 cycles
IDC Wire Gauge: 23 to 26 AWG

Construction
Housing:
Screened: Zinc-alloy
Contact Pin: Phosphor bronze alloy plated with 50 μin of gold
IDC: 110 type, phosphor bronze alloy with 100 μin 100% tin alloy

Dimensions
1.96” L x 0.54” W x 0.59” H (49.7 mm x 13.8 mm x 15.0 mm)

Environmental Conditions
Operation: 14 °F to 140 °F (-10 °C to 60 °C)
Storage: -40 °F to 158 °F (-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)

Warranty
5 - Year Limited Component
