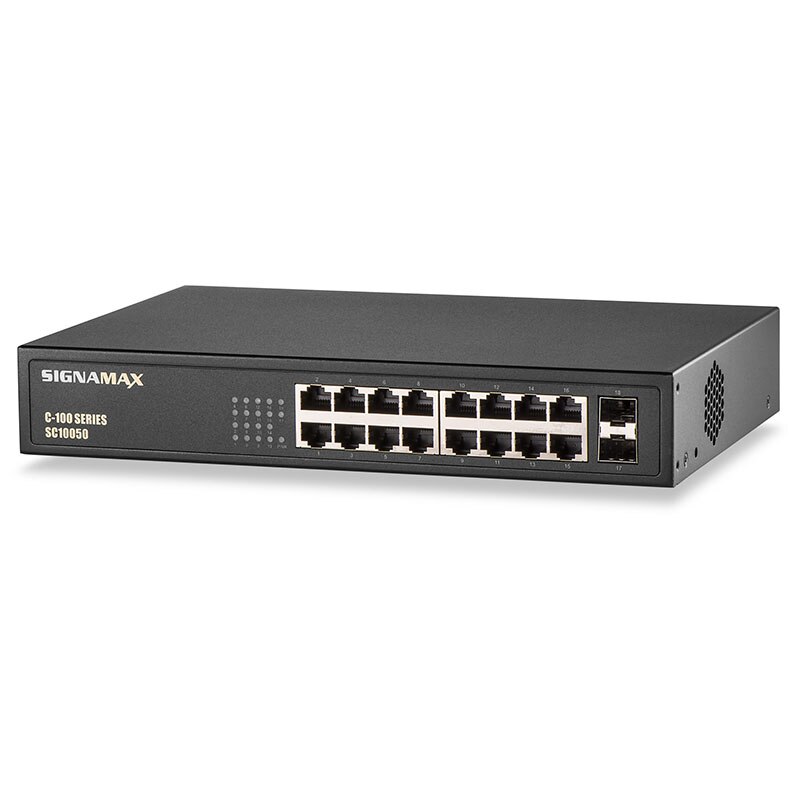

Signamax SC10050 16 Port Gigabit PoE+ Switch

$462.77
Reference#: 76924
Item#: SG-SC10050



Description

The Signamax SC10050 16 Port Gigabit PoE+ Switch provides you a cost-effective way to expand your network. Featuring 2 Gigabit uplink ports and a 235W PoE budget, this switch will exceed your expectations. Easy plug and play connectivity will get you up and running in no time. The SC10050 switch requires no configuration and can be installed in minutes for use in network racks or on desktops. The standards based C-100 switches sense and adjust for network speed and cabling type automatically, allowing the switches to connect to all other 10Mbps Ethernet, 100Mbps Fast Ethernet, or 1000Mbps Gigabit Ethernet devices. All RJ45 ports are equipped with MDI/MDI-X for easy connection to other switches as well as old hubs. The front panel LEDs keep you informed of power status, link speed and link activities.

With over 30 years’ experience designing and manufacturing network products, Signamax PoE switches offer both proven reliability and industry-leading quality. The SC10050 has a durable metal case to ensure a long product life.

  • Zero touch Plug and Play connectivity
  • Delivers up to 235W PoE with PoE+ support on all ports
  • 250W internal power supply
  • 2 Gigabit SFP uplink interfaces
  • Rugged metal case with clean black finish
  • Integrated mounting brackets for rack installation

    • Specification

    Ports:
    RJ-45 (Downlink): 16 10/100/1000
    Uplink Ports: 2 Gigabit SFP
    PoE: 16

    PoE:
    Budget: 235W
    Support IEEE 802.3af/IEEE802.3at on each port
    Dynamic Power Allocation

    PERFORMANCE:
    Switching Capacity: 36Gbps
    Forward Rate: 26.8Mpps
    4K MAC Addresses
    4Mb Packet Buffer
    Supports 10K Jumbo Frames
    Wirespeed Forwarding

    LAYER 2 STANDARDS:
    IEEE 802.3 10BaseT
    IEEE 802.3u 100BaseTX
    IEEE 802.3ab 1000BaseT
    IEEE 802.3 Auto-Negotiation
    SFP ports support IEEE 802.3u (100FX), 802.3z (1000SX/LX/LHX/ZX)
    IEEE 802.3x Flow Control
    IEEE 802.3az Energy Efficient Ethernet (EEE)

    ELECTRICAL CHARACTERISTICS:
    Max Power Consumption: 250W
    Power Supply AC Input: 100 – 240 V AC, 50/60 Hz
    MTBF: 100K hrs

    PHYSICAL CHARACTERISTICS:
    Dimensions: 10.6” W x 1.2” D x 1.7” H (26.9 cm x 18.3 cm x 4.4 cm)
    19 in rack mounting hardware included
    Weight: 3.7 lb (1.7 kg)

    ENVIRONMENTAL REQUIREMENTS:
    Operating Temperature: 14 to 131°F (-10 to 55°C)
    Storage Temperature: -4 to 158°F (-20 to 70°C)
    Operating/Storage Humidity: 5 to 95% (non-condensing)

    CERTIFICATIONS:
    CE Mark: EN 55022, Class B; FCC Part 15 Class B; VCCI Class B
    Safety: CE/LVD EN60950

    WARRANTY:
    Five years (Including power supply)
