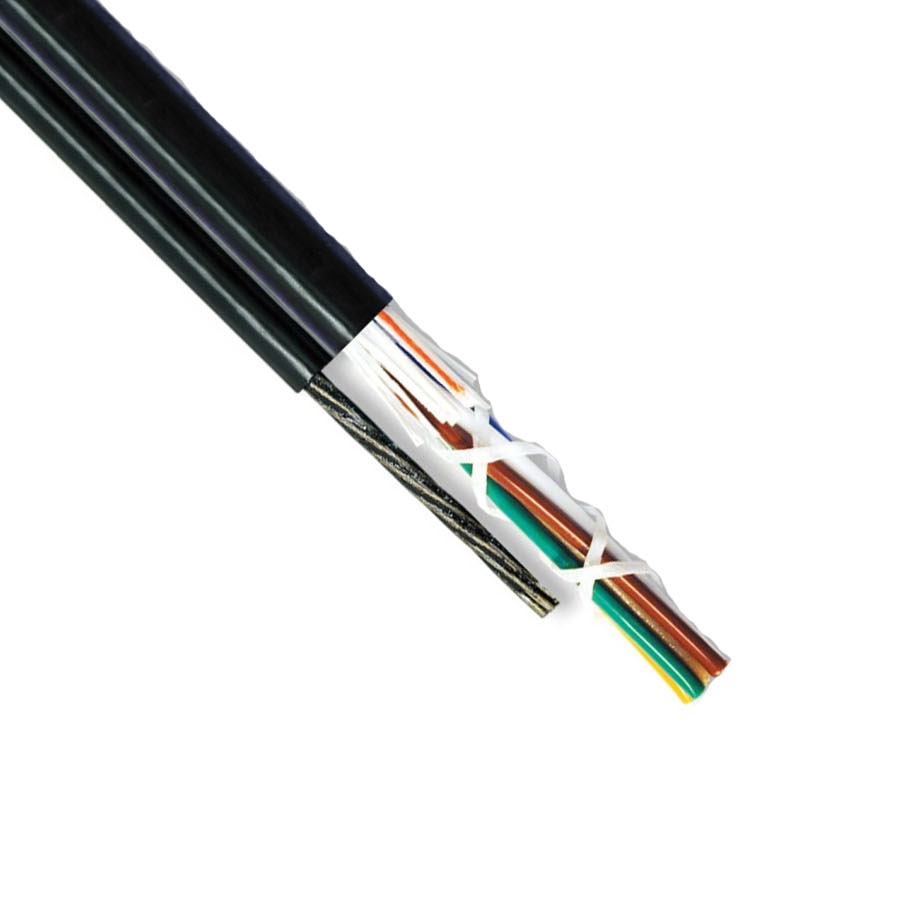

Superior Essex 24 Strand Figure 8 Self-Supporting Singlemode Outdoor Dri-Lite Loose Tube Single Jacket Fiber - Black (Per Foot)

$1.15
Reference#: 77765
Item#: 11024RDM1



Description

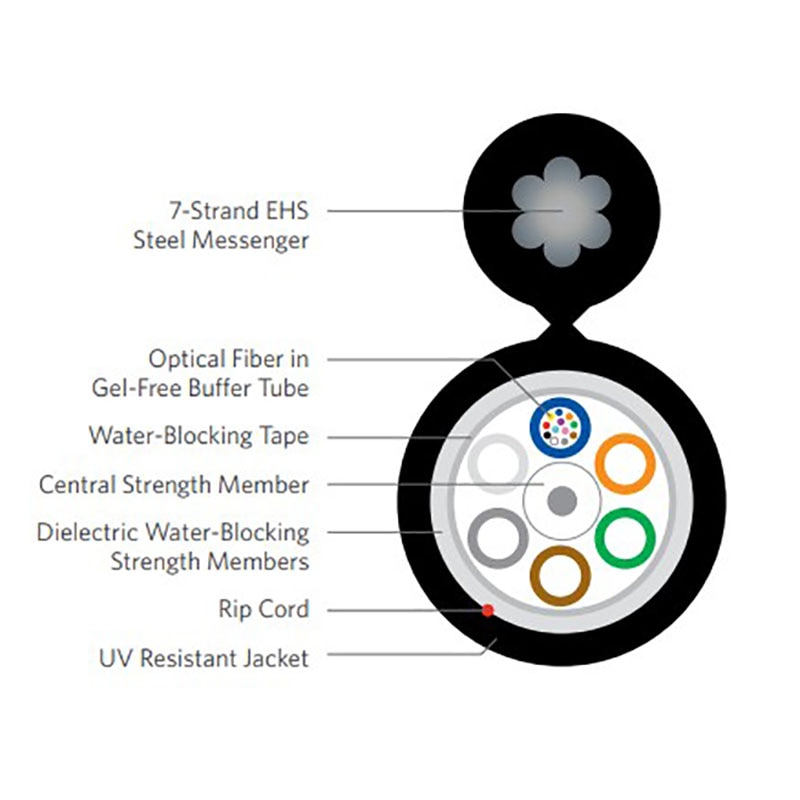

Superior Essex Loose tube cables are the product of choice as the backbone in Outside Plant (OSP) applications. Loose tube self support (figure-8) cables are designed for use in aerial applications as an alternative to lashing. These cables reduce installation time and costs. This Superior Essex 11024RDM1 self support cable can be used for spans up to 700 feet. The loose tube design offers reliable transmission performance over a broad temperature range. The durable loose tube design features optical fibers placed inside gel-free buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). The core is wrapped with flexible strength members, a water-blocking tape and then encased with a black jacket and an integrated EHS steel messenger. A rip cord is included under the jacket for ease of entry.

Features

• Available with up to 288-fiber (call to order other strand counts not listed online)

• High fiber density

• Multiple network applications

• Dry (SAP) core standard

• Reduces cable prep and installation time

• Standard tube size for all fiber counts

• Reduces the number of tools required

• Conforms to standard pole attachment hardware • Standard installation practices

• Gel-free construction

• Speeds fiber access and clean-up

Specification

Standards Compliance:

Telcordia® GR-20-CORE

RDUP PE-90 Designation MLT-8

ICEA S-87-640-2011

RoHS-compliant

Technical:

Fiber Count - 12

Fiber Cable Component Maximum Tensile Loading - Install lbs (N) 600 (2,700)

Fiber Cable Component Maximum Tensile Loading - Long Term lbs (N) 200 (890)

Support Messenger Breaking Strength lbs - 6,650

Minimum Bend Radius - Install in (mm) 8.2 (208)

Minimum Bend Radius - Long Term in (mm) 4.1 (104)

Operation/Storage -40°C to +70°C

Installation -30°C to +70°C

Glass - Corning glass
