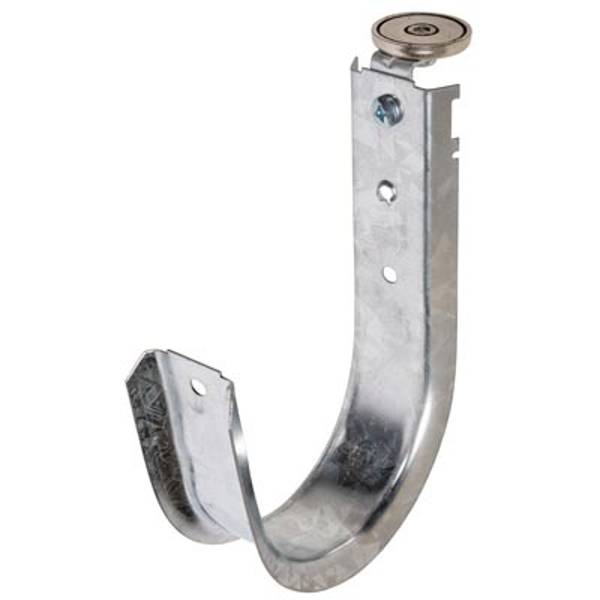

Winnie Industries 6" J-Hook, 100lb Magnet, Overhead Mount

$15.75
Reference#: 77869
Item#: WJH96ACMAG



Description

The WJH96ACMAG 6" J-Hook is a high-capacity cable management solution designed to meet the demands of modern installations in telecommunications, networking, and low-voltage applications. This J-Hook offers a time-saving and cost-effective alternative to traditional mesh cable baskets and ladder trays, ensuring efficient organization and support for extensive cable bundles.

Features

  • Time-saving and cost-effective alternative compared to using mesh cable basket or ladder tray
  • Super-strong neodymium rare earth magnet provides a secure hold onto any ferromagnetic surface
  • Protective steel cup directs magnetic field to fastening surface increasing magnetic pull force
  • Nickel-plated cup provides excellent wear resistance & hardness
  • Sticks through oil, grease, and dirty areas
  • Magnets will not interfere with ethernet or Wi-Fi signals
  • Heavy-duty pre-galvanized steel
  • Smooth rounded edges for the proper bend radius of cables
  • Use with category cable, low-voltage wire, coax, innerduct, and flexible conduit & tubing
  • Provides excellent support for CAT5e, CAT6, CAT6A, CAT7 and fiber optic cables
  • Includes wire cable retainer clip
  • UL & CUL listed
  • Complies with NEC® and TIA/EIA requirements for structured cabling systems

    • Specification

    Application:
    Provides support in the distribution of wire & cable bundles
  • Telcom/Voice
  • Network/Data
  • Fiber
  • Broadband, Satellite, CCTV
  • Low Voltage/Security
  • Flexible Conduit

    Cable Capacity:

  • 370 Cat5e cables
  • 230 Cat6 cables
  • 150 Cat6A cables
  • 125 Cat7 cables
  • 300 Fiber optic cables

    Installation:

  • Attaches to steel beams, metal joists, and other ferromagnetic surfaces

    Magnet Specifications:
    Size: 53 x 10mm
    Threaded Hole: ¼ x 20
    Magnet Grade: N35
    Material: Nickel (NiCuNi)
    Temperature Tolerance: -40°F – 176°F (-40°C – 80°C)
    Cup: Nickel-plated steel

    Safety:

  • Please handle neodymium magnets with care
  • Keep neodymium magnets away from anyone with a pacemaker
  • Magnets are not toys and should be kept away from children and pets
  • Large powerful magnets can pinch your fingers or cause other injuries, use caution
