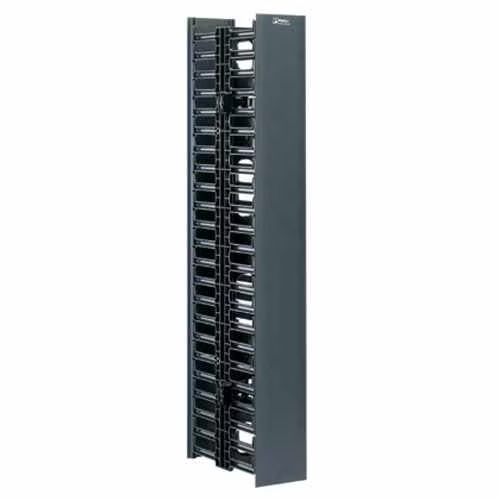

Panduit NetRunner Front and Rear Vertical 22U Manager
$192.50
Reference#: 72221
Item#: PA-WMPV22E
Item#: PA-WMPV22E
Description
Panduit WMPV22E vertical cable management panel. Black in color, sold individually at Discount-Low-Voltage.com
- Note: Dimensional weight applies to this item. Actual item weight is 6 lbs.
Features
• Large finger openings accommodate up to 24 Category 6 cables
• Integral cable retainers on the end of each finger to help contain cables within each rack unit

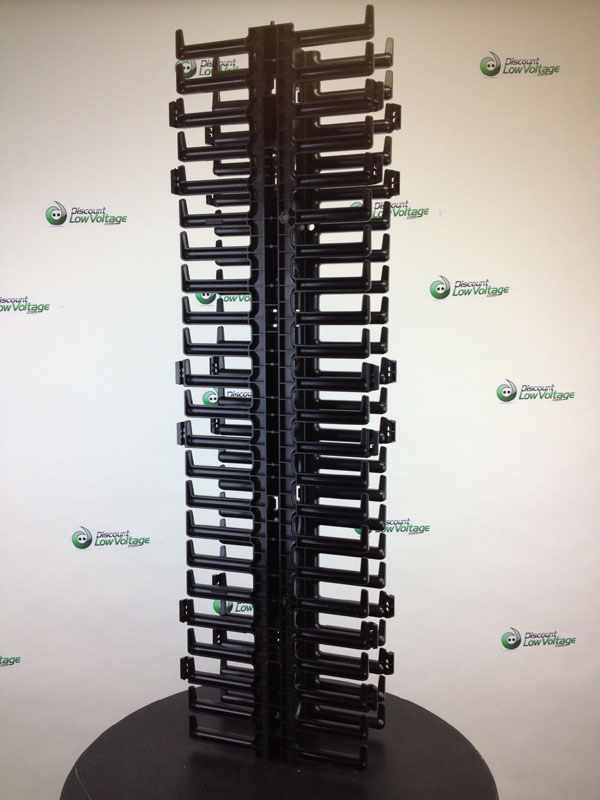

• Bend radius fingers align with rack spaces to support cables as they transition to the vertical pathway
• Dual hinged covers can be opened 110° to the left or right to provide complete access to the cables inside the vertical pathway
• Snap-on cable retainers can be placed on to fingers to help retain cables in channel during installation and maintenance
• Vertical managers include hinged covers, cable retainers, mounting brackets and #12-24 screws
• Integral cable retainers on the end of each finger to help contain cables within each rack unit
• Bend radius fingers align with rack spaces to support cables as they transition to the vertical pathway
• Dual hinged covers can be opened 110° to the left or right to provide complete access to the cables inside the vertical pathway
• Snap-on cable retainers can be placed on to fingers to help retain cables in channel during installation and maintenance
• Vertical managers include hinged covers, cable retainers, mounting brackets and #12-24 screws
Specification
Part Number - WMPV22E
RoHS Compliancy Status - Compliant since June 1, 2006
Part Description - Front and rear vertical manager.
Dimensions: 41.5"H x 4.9"W x 12.0"D (1054mm x 125mm x 306mm)
Product Type - Vertical Manager
Color - Black
Depth (In.) - 12.0
Depth (mm) - 306
Height (In.) - 41.5
Height (mm) - 1054
Width (In.) - 4.9
Width (mm) - 125
Cable Capacity - Cat 6 (.250) 131 Front and 131 Rear
CE Compliant - No
No. of Rack Spaces - 22
Pricing Description - NetRunner Vertical Cable Manager Front and Rear 22 RU
Rack System Width (In.) - 19,23
Min. Order UOM - PC
Min. Order Qty.- 1
RoHS Compliancy Status - Compliant since June 1, 2006
Part Description - Front and rear vertical manager.
Dimensions: 41.5"H x 4.9"W x 12.0"D (1054mm x 125mm x 306mm)
Product Type - Vertical Manager
Color - Black
Depth (In.) - 12.0
Depth (mm) - 306
Height (In.) - 41.5
Height (mm) - 1054
Width (In.) - 4.9
Width (mm) - 125
Cable Capacity - Cat 6 (.250) 131 Front and 131 Rear
CE Compliant - No
No. of Rack Spaces - 22
Pricing Description - NetRunner Vertical Cable Manager Front and Rear 22 RU
Rack System Width (In.) - 19,23
Min. Order UOM - PC
Min. Order Qty.- 1
