Winnie Industries 6" J-Hook, 150lb Magnet, Wall Mount

$35.10
Reference#: 77847
Item#: WUMAG-WJH96



Description

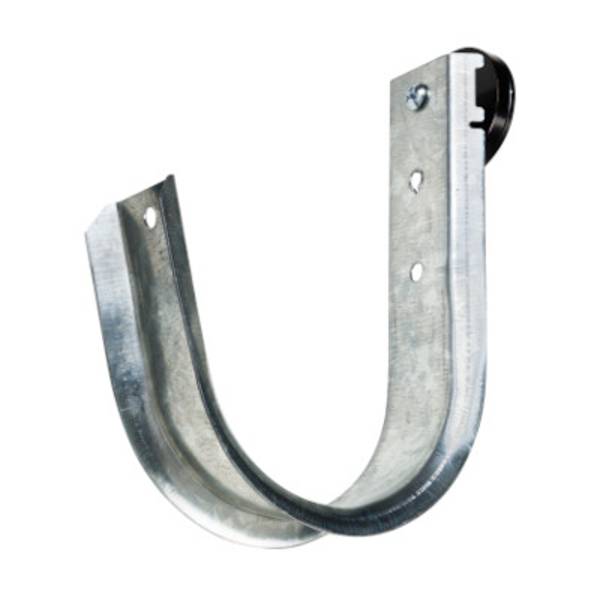

The WUMAG-WJH96 6" J-Hook, is an innovative solution for organizing and securing cable bundles in various applications. This wall mount features a powerful permanent nine-pole charged rare earth neodymium magnet, designed for exceptional strength and reliability. With a vertical pull force of up to 150 lbs on sheet metal, this J-Hook performs better than conventional neodymium pot magnets.

Features

  • Permanent nine-pole charged rare earth neodymium magnet
  • Exceptionally strong when compared to conventional neodymium pot magnets
  • Vertical pull force up to 150 lb on sheet metal
  • Due to the intense magnetic attraction at the surface, will not easily slide like other magnets
  • Sticks through oil, grease, and dirty areas
  • Magnet’s black epoxy coating provides corrosion resistance
  • J-Hook is crafted from heavy-duty pre-galvanized steel
  • Smooth rounded edges for the proper bend radius of cables
  • For all types of category cable, low-voltage wire, coax, innerduct, and flexible conduit & tubing
  • Provides excellent support for CAT5e, CAT6, CAT6A, CAT7 and fiber optic cables
  • Includes wire cable retainer clip
  • Complies with NEC® and TIA/EIA requirements for structured cabling systems

    • Specification

    Application:
    Provides support in the distribution of wire and cable bundles
  • Telcom/Voice
  • Network/Data
  • Fiber
  • Broadband, Satellite, CCTV
  • Low Voltage/Security
  • Flexible Conduit

    Cable Capacity:

  • 370 Cat5e cables
  • 230 Cat6 cables
  • 150 Cat6A cables
  • 125 Cat7 cables
  • 300 Fiber optic cables

    Installation:

  • Secures to steel beams, ceiling decks, sheet metal, metal joists, van walls & other ferromagnetic surfaces
  • Engineered for max attachment to thin metal

    Magnet Specifications:
    Size: 2” x 3/8” (50.8mm x 9.5mm)
    Threaded Hole: ¼ x 20
    Vertical Pull Force: 150 lb
    Coating: Epoxy
    Material: Magnet: Neodymium (NdFeB); Fender Washer: Steel
    Temperature Tolerance: -40°F – 176°F (-40°C – 80°C)

    Safety:

  • Please handle neodymium magnets with care
  • Keep neodymium magnets away from anyone with a pacemaker
  • Magnets are not toys and should be kept away from children and pets
  • Large powerful magnets can pinch your fingers or cause other injuries, use caution
