Cat 5e Low Voltage Shielded PVC Cable (1000ft) - WHITE
$195.00
Reference#: 72909
Item#: WA-2906
Item#: WA-2906
Description
Cat5e Shielded Cable - Bulk 1,000ft Box
Our bulk cat5e shielded cable is for use in voice, data and security applications and is foil shielded for EMI protection. This cat5e shielded cable comes in a 1,000ft easy-pull box, and is white in color. To ensure complete coverage, make sure to use cat5e shielded patch panels at the termination point.
Features
Foil shield for EMI protection. 1000 BASE-T Gigabit Ethernet E52/155 Mbps ATM E100/10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5) TI Voice

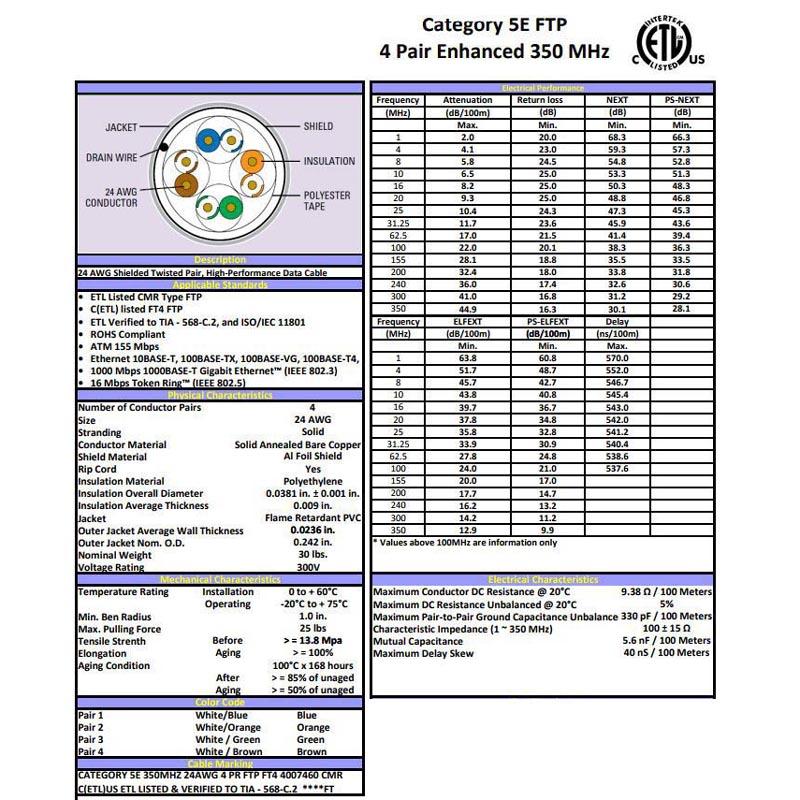

Specification
ANSI/TIA/EIA 568B (Category 5e) ANSI/ICEA S-90-661 (Category 5e) NEC/CEC Type CMR for Non-Plenum
Conductors: 4 pairs of 24 AWG solid bare annealed copper Drain Wire: 24 AWG stranded 7/32 solid tinned copper
Shield: Polyester backed aluminum foil (Aluminum side in)
Conductors: 4 pairs of 24 AWG solid bare annealed copper Drain Wire: 24 AWG stranded 7/32 solid tinned copper
Shield: Polyester backed aluminum foil (Aluminum side in)
