AFL 2 Strand Zip Singlemode Plenum Ultra Duplex 2mm Jacket Fiber Optic Cable
$0.14
Reference#: 73165
Item#: AF-ZP0024202901
Item#: AF-ZP0024202901
Description

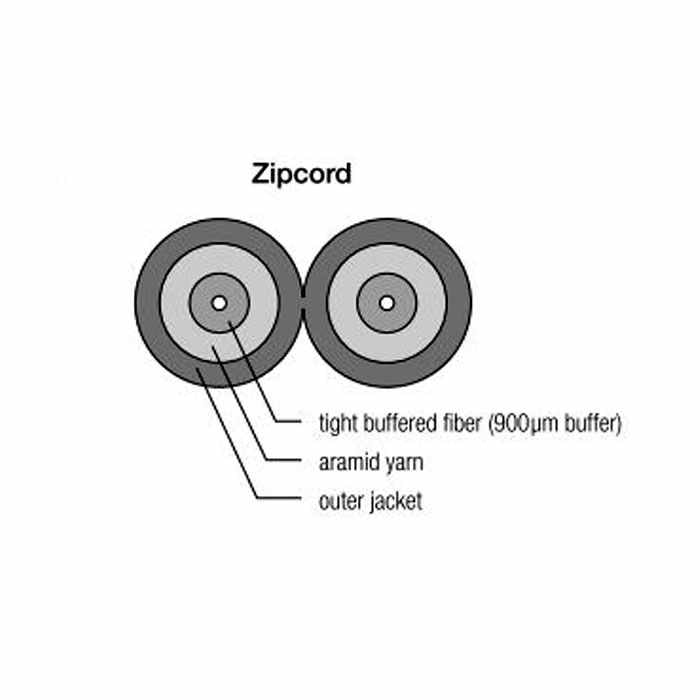

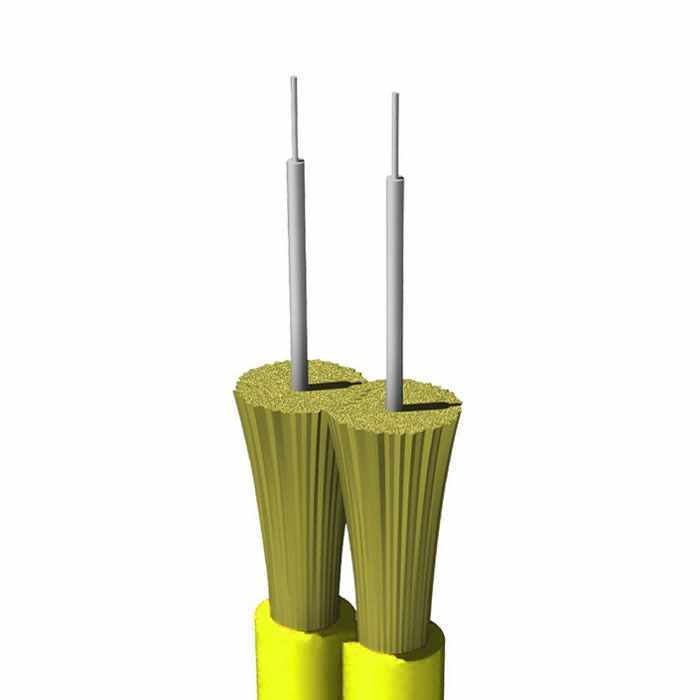

2 strand zipcord fiber optic cable manufactured by AFL is a plenum rated 2 strand zipcord fiber cable design, with a 2MM jacket.
Connections are easy to terminate with this flexible, two-fiber design. AFL offers the broadest selection of duplex cordage including Plenum, Riser and LSZH in all diameters. LSZH jacketed cables are OFNR listed. One design for global companies that don’t want to maintain multiple cable types for varying global standards. Compliant with Directive 2002/95/EC (RoHS).
Connections are easy to terminate with this flexible, two-fiber design. AFL offers the broadest selection of duplex cordage including Plenum, Riser and LSZH in all diameters. LSZH jacketed cables are OFNR listed. One design for global companies that don’t want to maintain multiple cable types for varying global standards. Compliant with Directive 2002/95/EC (RoHS).
Features
- Yellow jacket color
- Tight Buffer strippability (easy strip option allows removal of up to 1 meter of 900 µm material without stripping the fiber’s 250 µm coating)
- Tested to meet or exceed EIA/TIA 568-133 and Telcordia GR-409-CORE
- LSZH meets the requirements of IEC 61034-1, 61034-2, 60332-1-1, 60332-1-2, 60754-1, 60754-2
- Compliant to Directive 2002/95/EC (RoHS)
Specification
Nominal Weight
- 7lbs per 1,000ft
- 0.08 in
- Loaded: 3.0 cm (1.2 in)
- Installed: 5.0 cm (2.0 in)
- Short-Term: 100 N (22 lbf)
- Long-Term: 30 N (7 lbf)
Temperatures
- Storage: -40° to +70°C
- Installation: 0° to +70°C
- Operation: 0° to +70°C
