Hyperline Cat 5e 350 MHz 4pr 24awg Unshielded Plenum Gray 1,000 ft

Reference#: 70842

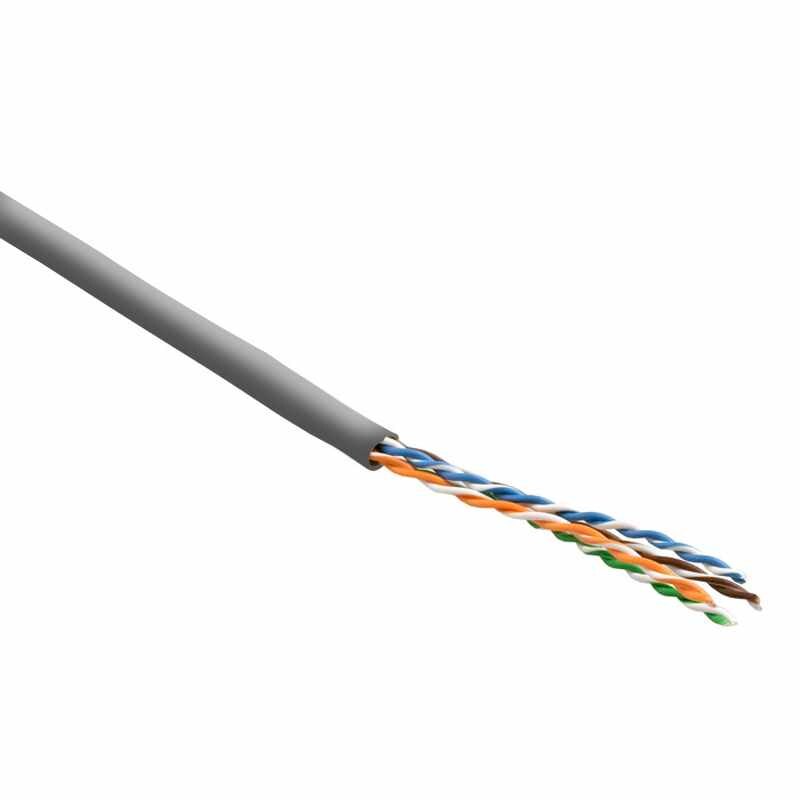

Hyperline 4 Pair 24awg 350 MHz Cat5e 1,000ft Unshielded cable, with a Gray Plenum indoor jacket.

Our Hyperline Cat5e bulk 1,000ft Ethernet cable comes in an easy-to-use pull box and is UL Certified. Hyperline Cat5e cable is made with top quality copper and insulative materials to insure high performance in your networking application. All cables meet or exceed ANSI/TIA/EIA standards for efficient data transfer.

All Category 5e cables sold at Discount-Low-Voltage.com are made of 100% pure bare copper wire, as opposed to copper clad aluminum (CCA) wire, and are therefore fully compliant with UL Code 444 and National Electrical Code TIA-568-C.2 fire and safety standards, which require pure bare copper wire in communications cables.


  • 100% Pure Bare Copper Wire
  • Easy-to-Use 1,000ft Pull Box
  • Cable Length Clearly Marked on Jacket Starting from 1,000ft
  • Bright, Easy to Identify Colors on the Conductors
  • Meets ANSI/EIA/TIA 568-B.2-1 requirements
  • Fire protection – CMP
  • The cable meets UL 1581 VW-1 fire safety standard
  • Specification

    • annealed bare copper 0.51±0.01 mm, 24 AWG
    • Teflon, minimum average thickness 0.19 mm, minimum thickness at any point 0.18 mm
    • Insulated conductor diameter: 0.9±0.01 mm
    • Blue-White/Blue,
    • Orange-White/Orange,
    • Green-White/Green,
    • Brown-White/Brown
    • 4 twisted pairs
    • PVC, minimum average thickness 0.45 mm, minimum thickness at any point 0.4 mm
    Outer cable diameter:
    • 5.1±0.2 mm
    Minimum bend radius:
    • 8xØ while installation, 6xØ while vertical cabling, 4xØ while horizontal cabling
    Standard package:
    • 18.5x37.5x36.5 cm (WxHxD) - 305 m
    Weight of cable without package:
    • 9.7 kg
    Weight of cable with package:
    • 10.5 kg
    Weight per 1 km:
    • 31.8 kg
    Rating temp:
    • 75°C
    Flame test:
    • CMP
    • UL444/UL910, TIA/EIA 568A
