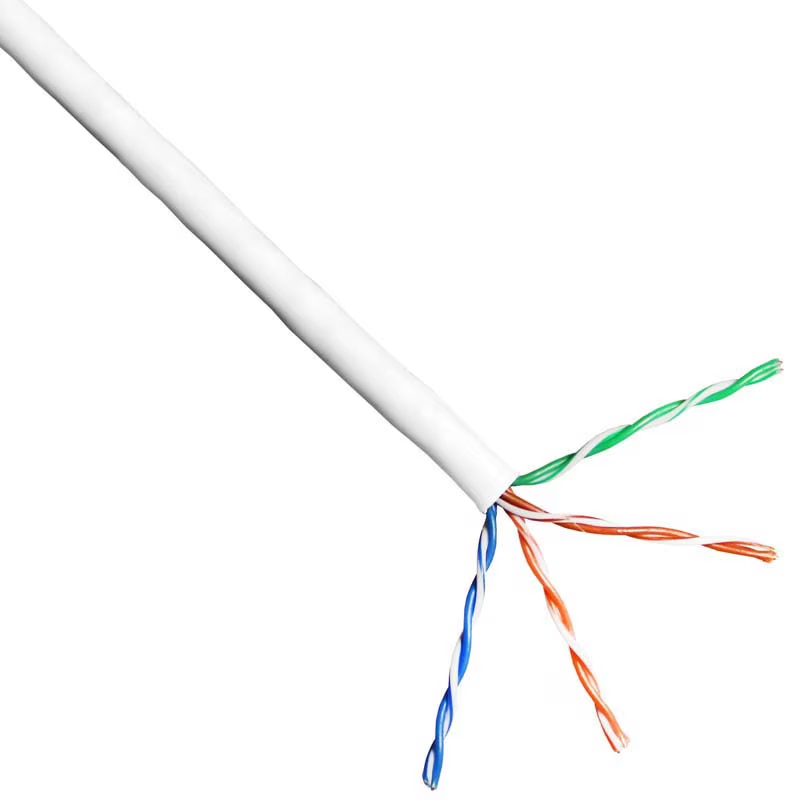

PureNet Plenum Cat6 500MHz 4 Pair 23awg Solid Copper, Unshielded Ethernet Cable, White (1,000 ft)

Reference#: 77043
Item#: U6500-004-PWH2


PureNet Category 6 Plenum rated cables provide exceptional performance and value for jobs that require standards compliance at a competitive price. While this cable meets all of the ANSI/TIA-568-C.2 specifications, it also offers a “fillerless” design which makes it easier to use, saves on installation time and expense, and ensures product quality during the installation. The no-splice design also reduces the overall cable diameter. At just 0.205" OD, you can fit more cables in a bundle, use smaller cable management accessories, and reduce the overall weight of your bundles.

The 100% pure solid copper conductors on this Cat6 cable offer superior performance and reliability for permanent in-wall applications. Fully compliant with UL Code 444 and National Electrical Code TIA-568-C.2 fire and safety standards, PureNet Cat6 cable should be your go to cable for jobs of all sizes. And with 7 different color options, there's sure to be an option that fits your needs.

In addition, this U6500-004-PWH2 Category 6 UTP cable has footage markings (in feet and meters) so you'll always know exactly how much you have left in the box. Don't bother writing notes on the box each time you pull some cable out, it's as simple as looking at the print on the jacket. All PureNet category 6 Plenum cables are UL verified, UL listed and RoHS Compliant.

• Horizontal Distribution & Backbone Cabling
• 155Mbps ATM, 100Mbps TP-PMD
• 10/100/1000BASE-T (IEEE 802.3)
• 10GBASE-T up to max. 55 m
• ATM LAN 1.2G
• PoE, PoE+ (IEEE 802.3af, IEEE 802.3at)


• Lightweight, easy-pull Reelex II packaging eases installation
• 90°C UL Listed; 0.5A-LP Rating for CMP
• Filler-less design simplifies installation (no spline)
• Capable of handling full broadband and baseband video signals
• Every master reel is tested for electrical performance compliance
• Dual length marking in feet and meters from 1000 ft (305 m) to 0 ft (0 m)
• Slim cable outer diameter of 0.205 in.


Click the 'Downloads' tab to find the "PureNet Cat6 Ethernet Cable Data Sheet (CMR/CMP)" with full product specifications.
