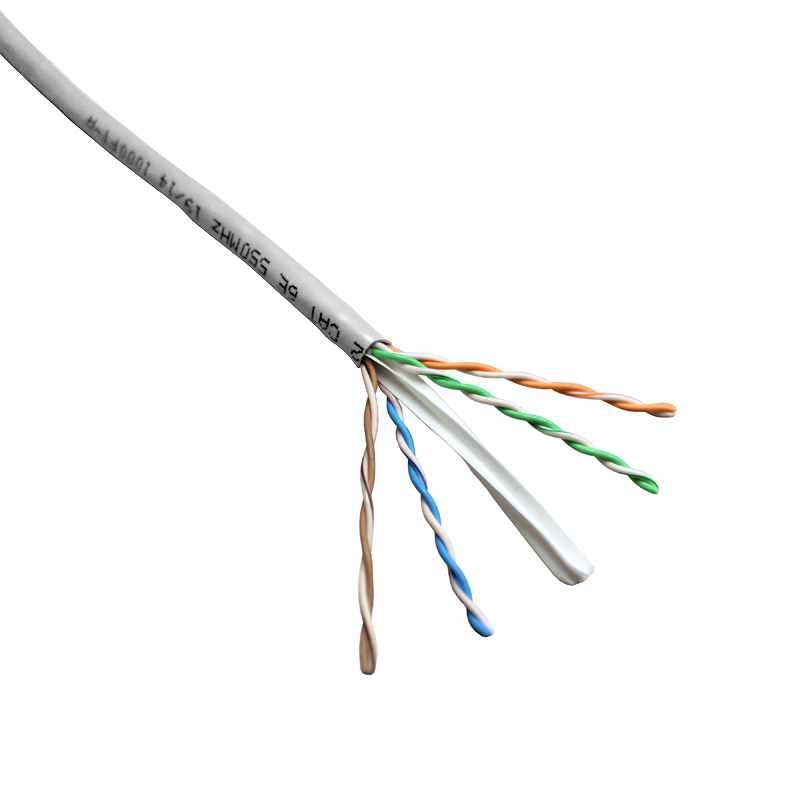

Hyperline Cat6e 550MHz 4pr 23awg Unshielded PVC Ethernet Cable, White (1000 ft)

Reference#: 70862



The White Hyperline Cat 6e 550MHz 4pr 23awg Unshielded PVC Ethernet Cable available from Discount Low Voltage features solid conductors, which provide better electrical properties than stranded conductors. That makes this Ethernet cable a good choice of use in permanent, in-wall installations and for longer cable runs. The center spline in this cable helps reduce alien crosstalk.

Sold in boxes containing 1,000’ rolls, Hyperline Cat 6e cables are available in your choice of 10 colors. The cable is marked from 1,000 feet to zero feet, letting you know exactly how much remains in the box while you work.

Hyperline Cat 6e cables don’t use cheap, copper-clad aluminum or CCA wire. Instead, these quality cables are made of 100 percent bare copper wire. That makes them fully compliant with UL Code 444 and National Electrical Code TIA-568-C.2 fire and safety standards.


Each box includes 1,000 feet of cable:

·White Hyperline Cat 6e 550MHz 4pr 23awg Unshielded PVC Ethernet Cable – 1,000’

Orders of $200 or more are eligible for free shipping which typically takes two to five business days. Rush shipping is also an option to choose from.


Take advantage of quantity discounts we offer on these boxes of cable to save even more over our already low prices. For quick answers to any of your questions, email or call our expert customer service staff.


- 550MHz Cat6e Cable with Center Separator (spline)
- Solid Copper Conductors
- Sturdy 1,000ft Pull Box
- Available in 10 Different Colors


Conductor diameter:

  • 0.54 ± 0.01 mm (24 AWG)

Insulated conductor diameter:

  • 0.99 ± 0.2 mm (0.038" ± 0.008")

Outer cable diameter:

  • 6.2 ± 0.2 mm (0.24" ± 0.008")

Jacket thickness:

  • 0.4 mm (0.015")

Pulling strength:

  • 130 N

Minimum bend radius:

  • 4 outer cable diameters

Operating temperature:

  • -20°C to +75°C (-4°F to +167°F)

Weight per 1000 ft:

  • 12.9 kg (28.4 lbs)

Standard package:

  • 305 m (1000 ft)

Conductor resistance at 20°C (68°F)9.38 Ohm/100 m (2.9 Ohm/100 ft)
DC Resistance Unbalance 5%
Pair-to-Ground Capacitance Unbalance 330 pF/100 m (101 pF/100 ft)
Impedance 0.772-100 MHz85-115 Ohm
Mutual Capacitance5.6 nF/m (1.7 nF/ft)
Spark Test2.5 kV
