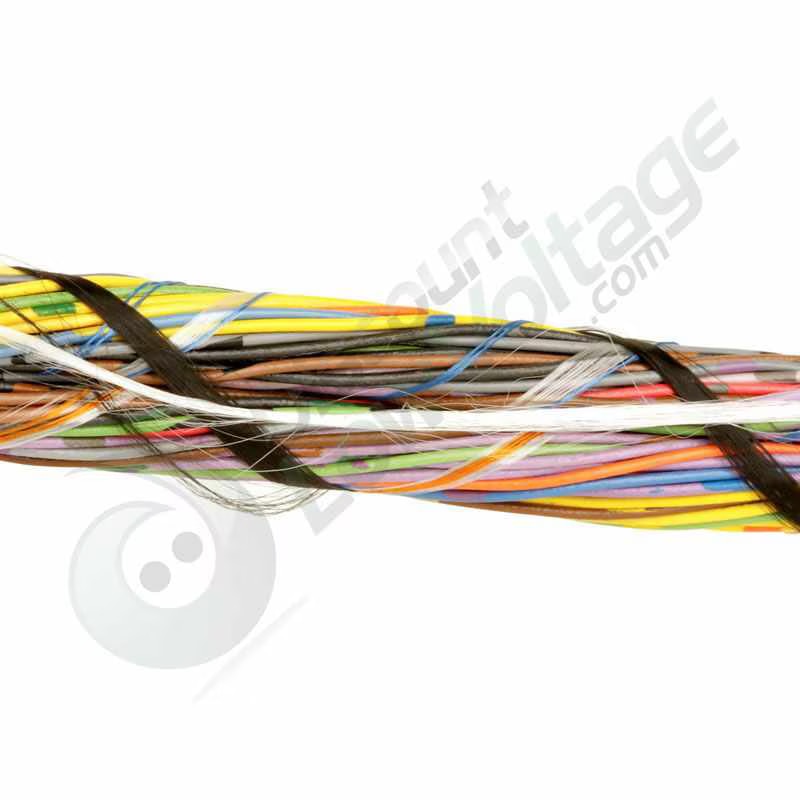

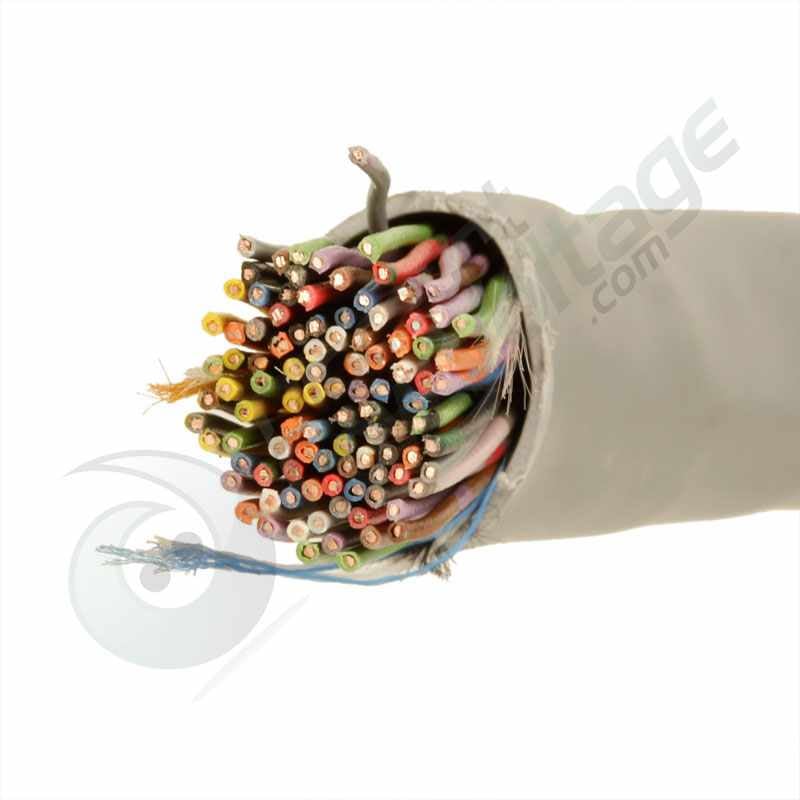

Marmon 50 Pair Telephone Cable Cat 3 PVC/CMR Gray – 100% US Made (per foot)
$2.82
Reference#: 69284
Item#: CT-33572
Item#: CT-33572
Description
The Marmon 50-Pair Category 3 Riser Cable (Part Number: 33572) is engineered to meet the demands of modern voice communication systems within building infrastructures. Its robust construction and adherence to industry standards make it a reliable choice for various applications.
AVAILABILITY
Get free shipping on qualified orders of $200 or more. Delivery usually takes two to five business days. Quicker shipping options are also available.
VALUE
The more you buy, the more you save, thanks to our quantity discounts on this best-selling product. Questions? Call our expert staff toll-free during normal business hours.
Click for all of our 25 pair telephone cable as well as 50 pair telephone cable.
Features
Suitable for:
Voice
T1
4Mbps Token Ring (IEEE 802.5)
10 Base-T (IEEE 802.3)
52 Mbps ATM
VG-AnyLAN
ISDN
Voice
T1
4Mbps Token Ring (IEEE 802.5)
10 Base-T (IEEE 802.3)
52 Mbps ATM
VG-AnyLAN
ISDN
Specification
Application: Suitable for backbone wiring for both voice and data applications in Local Area Networks. Most commonly used with 66 blocks
Suitable for: Voice T1 4Mbps Token Ring (IEEE 802.5) 10 Base-T (IEEE 802.3) 52 Mbps ATM VG-AnyLAN ISDN
Compliances: UL Listed Type MPR/CMR TIA 568-B.2 Category 3 (4 pair verified UL and ETL)
Insulation: Semi-rigid PVC
Jacket: Flame Retardant Chrome Gray PVC with sequential footage markings
Ripcord: Applied longitudinally under jacket
Operating Temperatures: -10c to +60c
Voltage Rating: 300 volts
Conductors: Solid bare copper
Electrical Characteristics DC Resistance (max) 9.38 Ohms/100m @ 20C Mutual Capacitance (nom) 18 pF/ft @ 1 kHz Characteristic Impedance 100 +/- 15 Ohms from 1.0-16.0 MHz
Structural Return Loss (SRL): 12dB (min) from 1.0-10.0 MHz 12-10 log (f/10) from 10.0-16.0 MHz
Suitable for: Voice T1 4Mbps Token Ring (IEEE 802.5) 10 Base-T (IEEE 802.3) 52 Mbps ATM VG-AnyLAN ISDN
Compliances: UL Listed Type MPR/CMR TIA 568-B.2 Category 3 (4 pair verified UL and ETL)
Insulation: Semi-rigid PVC
Jacket: Flame Retardant Chrome Gray PVC with sequential footage markings
Ripcord: Applied longitudinally under jacket
Operating Temperatures: -10c to +60c
Voltage Rating: 300 volts
Conductors: Solid bare copper
Electrical Characteristics DC Resistance (max) 9.38 Ohms/100m @ 20C Mutual Capacitance (nom) 18 pF/ft @ 1 kHz Characteristic Impedance 100 +/- 15 Ohms from 1.0-16.0 MHz
Structural Return Loss (SRL): 12dB (min) from 1.0-10.0 MHz 12-10 log (f/10) from 10.0-16.0 MHz
