Fujikura 70S+ Fusion Splicer Kit (with CT50 cleaver, battery and cord)
Item#: S015591
Description

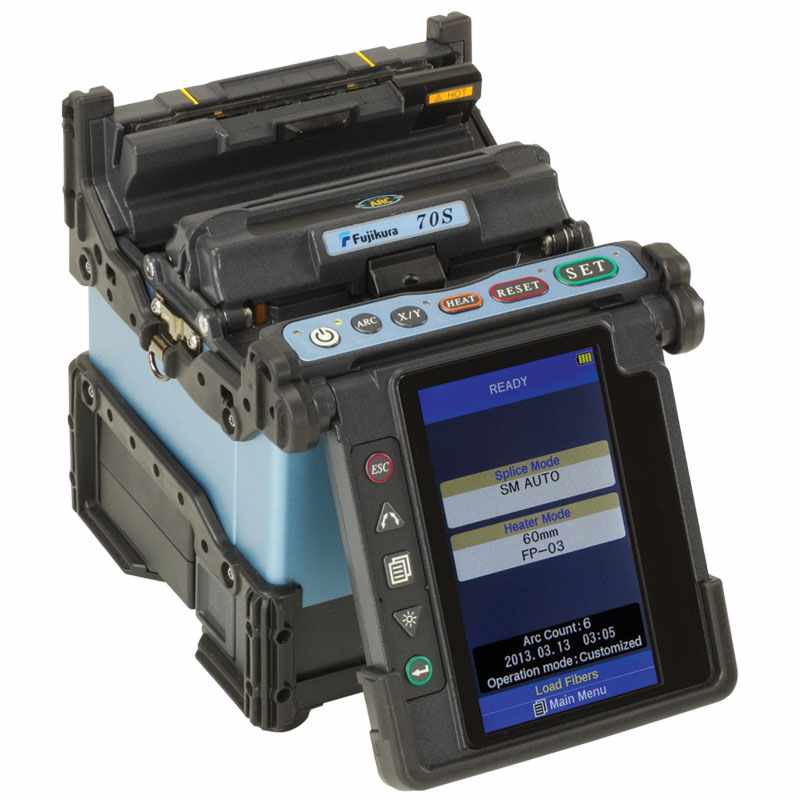

The Fujikura 70S+ is the world’s fastest and most robust core alignment fusion splicer. Incorporating the proven ruggedized features pioneered by Fujikura, the 70S+ has added automated and enhanced user control features to increase splicing efficiency. A user programmable, automated wind protector expedites the splicing process by automatically closing to initiate the splice process, and opening upon splice completion. Fully programmable “auto open sheath clamps” open one or both sheath clamps, after the tensile test, to prepare the fiber for removal. A new automated “clamshell design” tube heater applies heat to both sides of the splice protection sleeve resulting in a 13-second shrink time. The result is a total splice process time of approximately 21 seconds! Ruggedness and durability are greatly enhanced by a mirror-less optical system and "severe-impact resistant" monitor. Battery capacity is now 200 splices/shrinks. An innovative transit case doubles as a built-in or mobile workstation and makes splicing easier than ever before. In an industry first, the 70S+ is also equipped with Bluetooth® technology. This allows the splicer to actively communicate with Bluetooth enabled fiber preparation accessories making maintenance of fiber preparation tools easier than ever! The 70S+ will also be available without Bluetooth functionality
AVAILABILITY
Contractors who do a lot of fiber cable splicing will love the ease-of-use, fast splicing time and durable construction of the AFL 70S+ Fusion Splicer. This S015591 kit from Discount Low Voltage has everything you need to start fusion splicing like a pro.
Kit Includes:
• BTR-09 Battery
• DCC-18 Battery Charge Cord
• CT50 Cleaver
• ADC-18 AC Adapter
• ACC-14 AC Cord
• ELCT2-20A Spare Electrodes (pair)
• S70C Sheath Clamp
• USB Cable
• Alcohol Dispenser
• Screw Driver
• Splicer Carrying Strap
• Quick Reference Guide

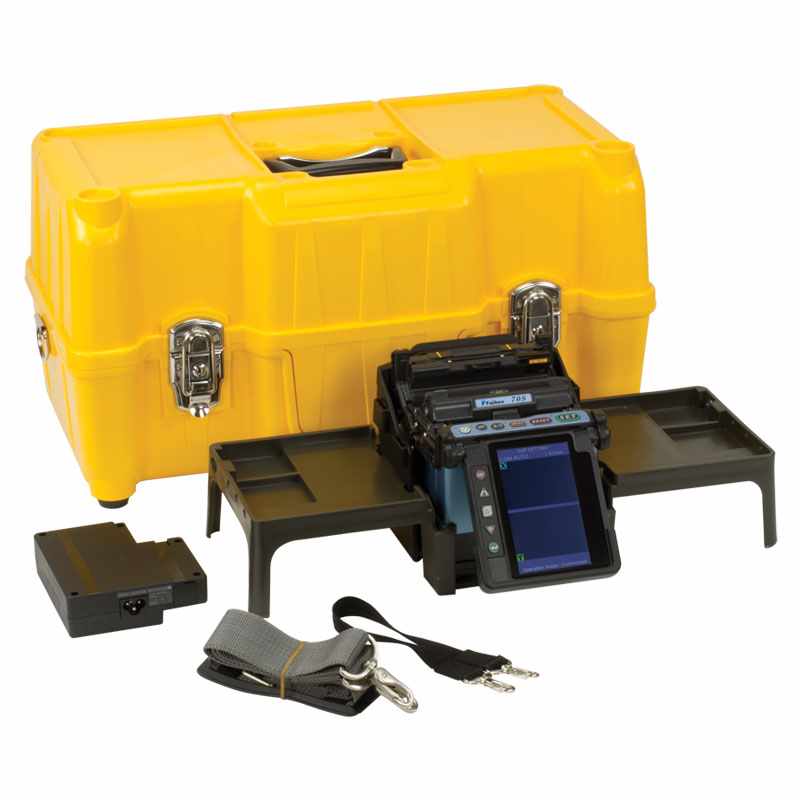

• Video Instruction Manual and CC30 Transit Case with Carrying Strap
VALUE
If you install fiber optics for a living, then the AFL Fujikura 70S is an essential machine. This item qualifies for free ground shipping anywhere in the lower 48 U.S. states. And, like everything we sell, it has a full satisfaction guarantee.
RESOURCES
Download the manufacturer datasheet below or call our trusted tech experts to learn more about how this fusion splicer can make your job easier and save time on installations.
Features
• Bluetooth wireless communication
• Automated and programmable wind protector
• 13-second automated tube heater
• Fully ruggedized for shock, dust and moisture
• Li-ion battery with 200 splices/shrinks per charge
• 5 mm cleave length for splice on connector or small package needs
• Sheath clamp or fiber holder operation
• On-board training and support videos

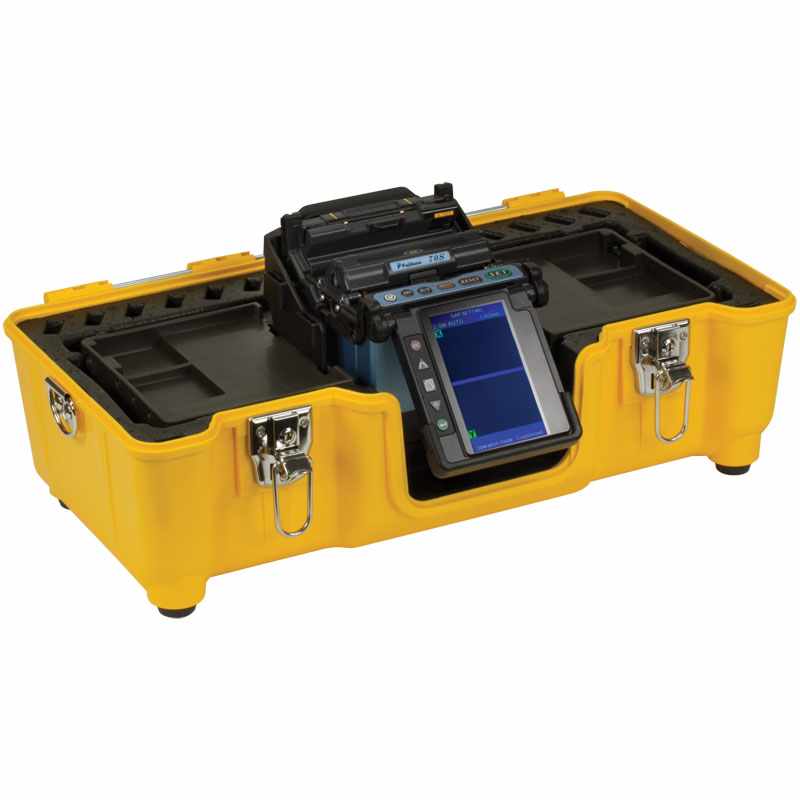

• Multi-function transit case with integrated workstation
Specification
Model: 70S+ Fusion Splicer
Applicable Fibers: Single-mode (G.652 & G.657), Multimode (G.651.1), DS (G.653), CS (G.654), NZDS (G.655 & G.656) and Erbium-doped fiber
Cladding Diameter: 80 - 150 μm
Coating Diameter: 100 μm to 3,000 μm
Fiber Cleave Length: 5 to 16 mm
Typical Average Splice Loss: 0.02 dB with SM, 0.01 dB with MM, 0.04 dB with DS, 0.04 dB with NZDS, measured by cut-back method relevant to ITU-T standards
Splicing Time: ULTRA FAST mode — 6 seconds; SM FAST mode — 7 seconds; SM AUTO mode — 10 seconds; AUTO mode — 15 seconds with SM fiber
Arc Calibration Method: Automatic, real-time and by using results of previous splice when in AUTO mode, manual arc calibration function available
Splicing Modes: 100 preset and user programmable modes
Splice Loss Estimate: Based upon dual camera core axis alignment data
Storage of Splice Result: Last 2,000 results stored in the internal memory
Fiber Display: X or Y, or both X and Y simultaneously. Front or rear monitor display options with automated image orientation
Magnification: 320X for single X or Y view, or 200X for X and Y view
Viewing Method: Dual cameras with 4.7 inch TFT color LCD monitor
Operating Condition: 0 to 5,000 m above sea level, 0 to 95%RH and -10 to 50°C respectively
Mechanical Proof Test: 1.96 to 2.25N
Tube Heater: Built-in tube heater with 30 heating modes; auto-start function
Tube Heating Time: Typical 13 seconds with FP-03 sleeve, 17 seconds with FP3 (40), 5-16 seconds with Fujikura micro sleeves
Protection Sleeve Length: 60 mm, 40 mm, micro
Splice/Heat Cycles with Battery: Typical 200 cycles with power save functions activated
Electrode Life: 5,000 Arc Discharges
Power Supply: Auto voltage selection from 100 to 240 V AC or 10 to 15 V DC with ADC-18, 14.8 V DC with BTR-09 battery
Terminals: USB 1.1 (USB-B type) for PC communication. Mini-DIN (6-pin) for HJS-02/03
Wind Protection: Maximum wind velocity of 15 m/s. (34 mph)
Dimensions: 146 W x 159 D x 150 H (mm) / 5.75 W x 6.25 D x 5.9 H (inches)
Weight (splicer only): 2.5 kg (5.5 lbs) with AC adapter ADC-18; 2.7 kg (5.95 lbs) with BTR-09 battery
