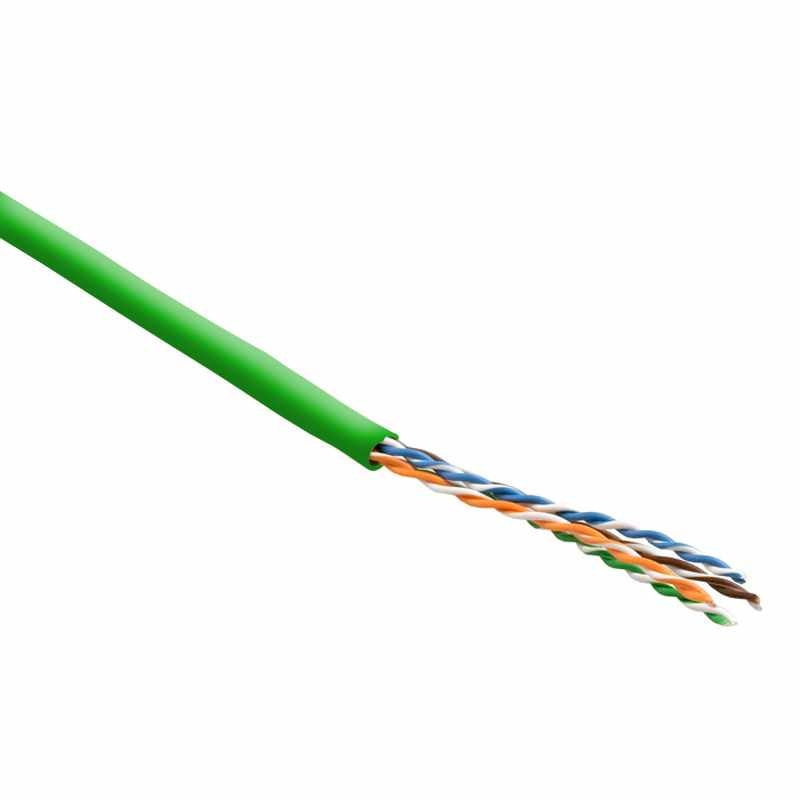

Hyperline Cat 5e 350 MHz 4pr 24awg Unshielded Riser Green (1,000 ft)

Reference#: 70847


Hyperline 4 Pair 24awg 350 MHz Cat5e 1,000ft Unshielded cable, with a Green PVC indoor jacket.

Our Hyperline Cat5e bulk 1,000ft Ethernet cable comes in an easy-to-use pull box and is UL Certified. Hyperline Cat5e cable is made with top quality copper and insulative materials to insure high performance in your networking application. All cables meet or exceed ANSI/TIA/EIA standards for efficient data transfer.

All Category 5e cables sold at Discount-Low-Voltage.com are made of 100% pure bare copper wire, as opposed to copper clad aluminum (CCA) wire, and are therefore fully compliant with UL Code 444 and National Electrical Code TIA-568-C.2 fire and safety standards, which require pure bare copper wire in communications cables.


  • 100% Pure Bare Copper Wire
  • Easy-to-Use 1,000ft Pull Box
  • Cable Length Clearly Marked on Jacket Starting from 1,000ft
  • Bright, Easy to Identify Colors on the Conductors
  • Meets ANSI/EIA/TIA 568-B.2-1 requirements
  • Fire protection – CM
  • The cable meets UL 1581 VW-1 fire safety standard
  • Specification

    Conductor resistance at 20°C (68°F)9.38 Ohm/100 m (2.9 Ohm/100 ft)
    DC Resistance Unbalance5%
    Pair-to-Ground Capacitance Unbalance 330 pF/100 m (101 pF/100 ft)
    Impedance 0.772-100 MHz85-115 Ohm
    Mutual Capacitance 5.6 nF/m (1.7 nF/ft)
    Spark Test 2.5 kV
