Ideal Industries CAT6 Feed-Thru RJ45 Modular Plugs (50-Pack)

$33.65
Reference#:
Item#: ID-85-376



Description

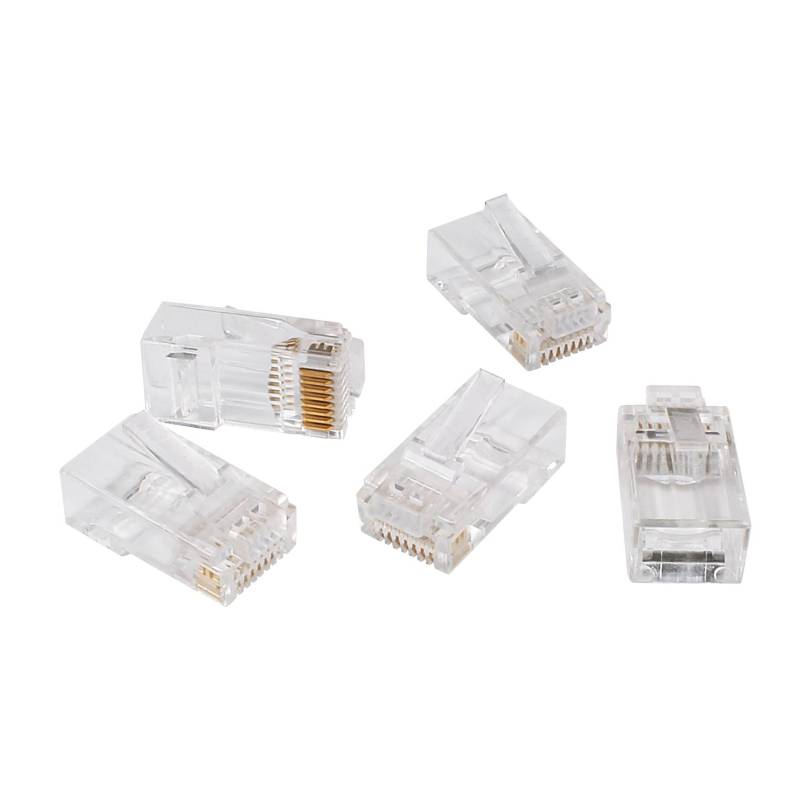

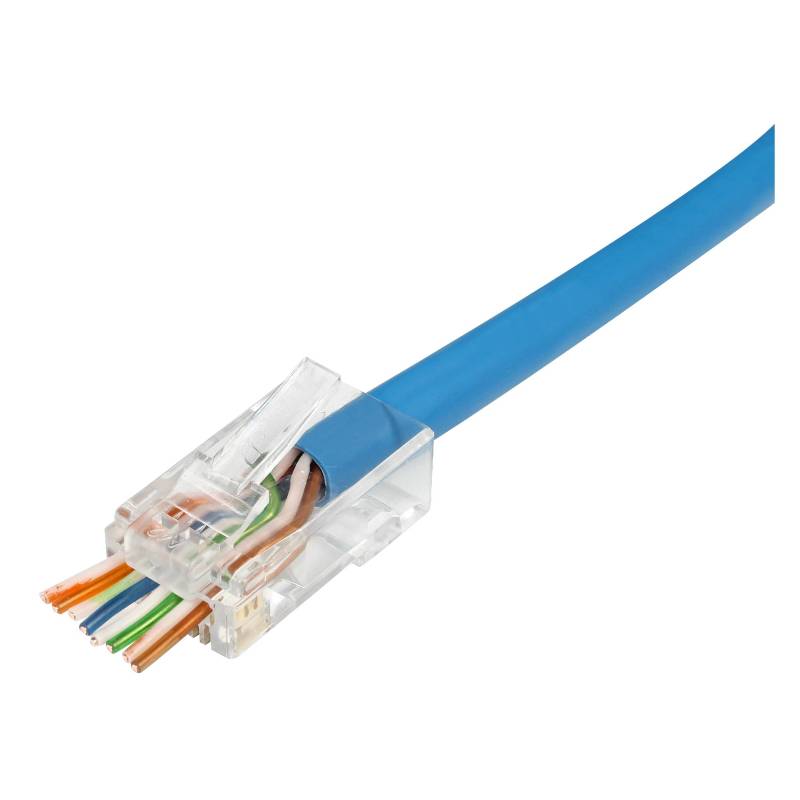

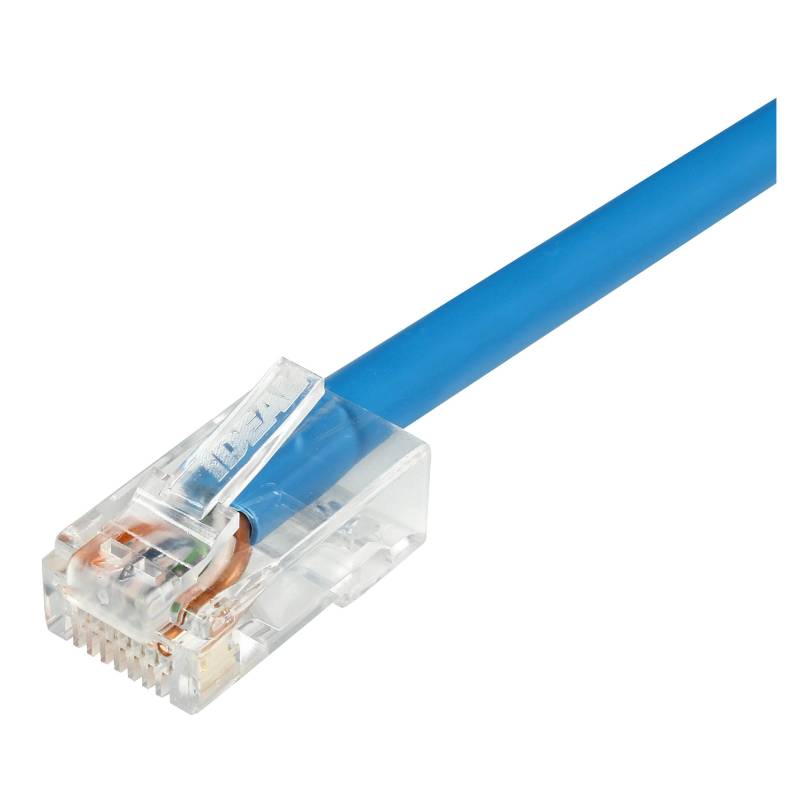

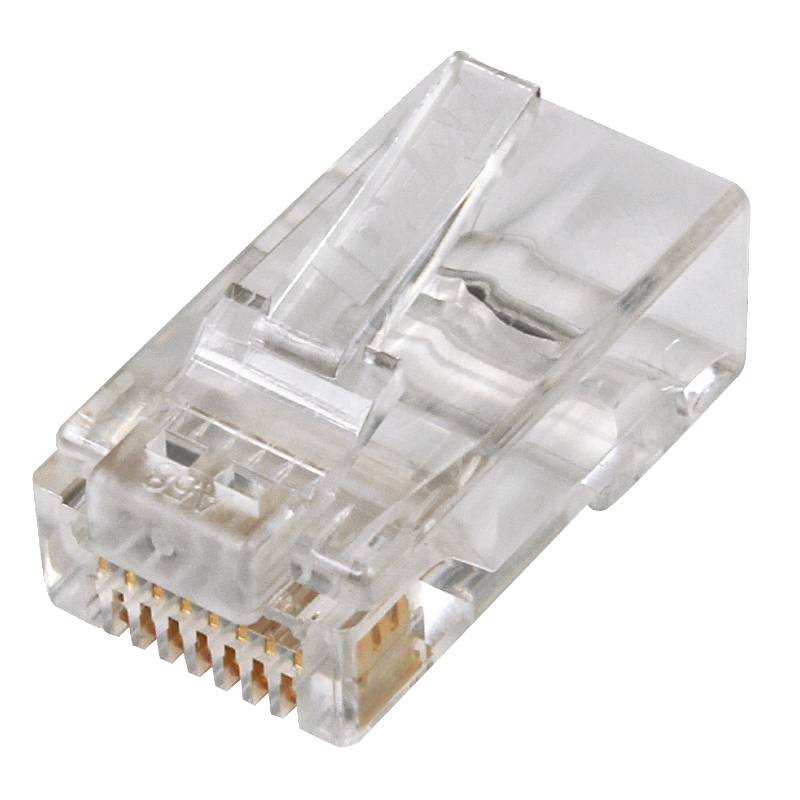

The IDEAL 85-376 Feed-Thru CAT6 8P8C (eight position/eight contact) modular plug connector is the first feed-thru style connector and tool solution to offer a flush cut of the excess conductor to the face of the modular plug. A patent pending design enables conductors to be cut flush with the end face of the connector when used with the FT-45™ tool (30-495). The flush cut eliminates inadvertent contact among adjacent conductors or with the mating jack. Conductor spacing is maintained for reliable performance in PoE and data applications.

Features

  • NEW! Feed-Thru design simplifies connector to cable assembly
  • Flush cut of excess conductors minimizes inadvertent contact outside of the plug
  • Designed for best performance when used with the IDEAL FT-45 Crimp Tool (30-495)
  • 8 position, 8 contact RJ-45 modular plug for CAT6 twisted pair cables
  • 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles

    • Specification

    Pack Size: 50 pack
    Cable Type: CAT6
    Feed-Thru: Yes
    Shielded: No
