Ideal RJ45 8P8C CAT6 Feed-Thru Modular Plug (100 pieces)

$59.95
Reference#: 76816
Item#: PLUG-611



Description

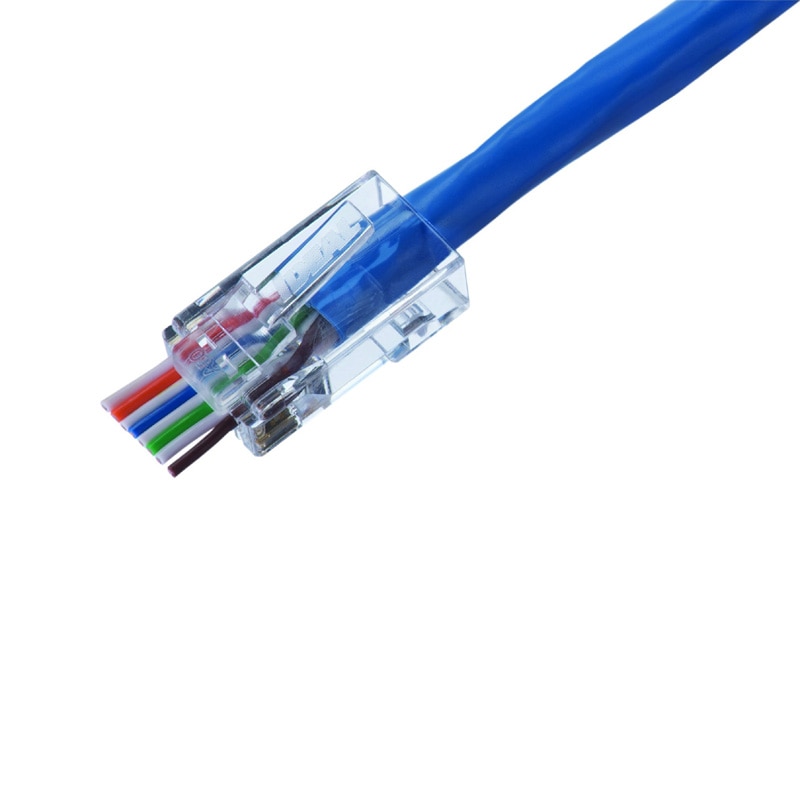

The IDEAL 85-377 Cat6 Feed-Thru RJ-45 Modular Plugs are designed to simplify and improve the consistency of cable to connector termination of CAT6 modular plugs to twisted pair cables. Anyone who has assembled traditional standard or multi-piece modular plugs knows it is a time consuming and often error-prone process.

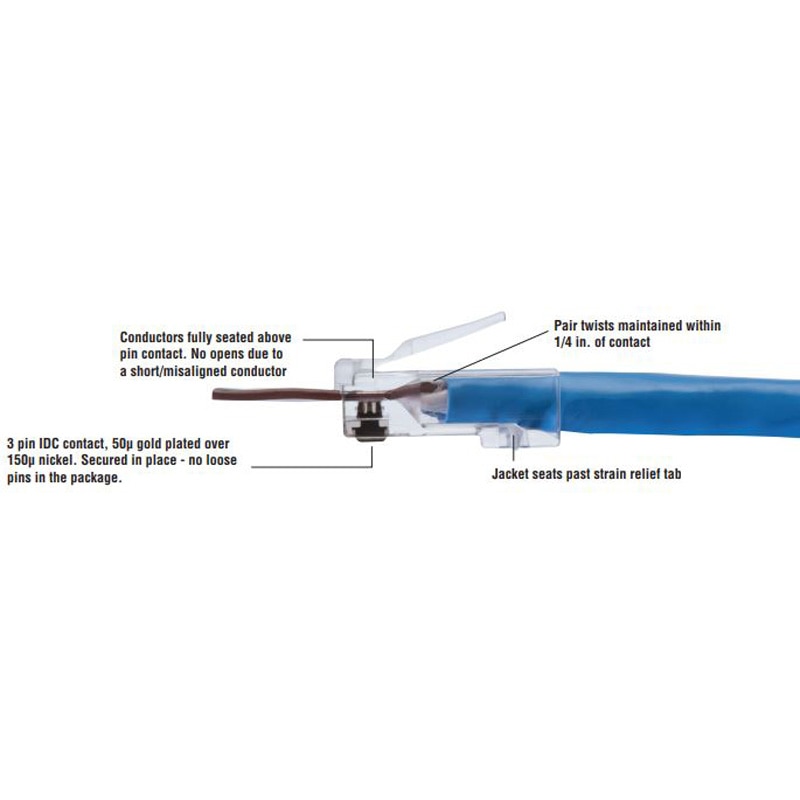

Ideal 85-377 Open-end Feed-Thru connectors offer several advantages over standard closed end connectors. Conductor order can be verified prior to crimping. Conductors that feed-thru the connector are inserted far enough to be pierced by the pin below. The cable can be pushed or pulled into the connector to ensure that the twisted pairs are as close to the pin contacts as possible and that the jacket is seated beyond the primary strain relief for a secure connection. A patent pending design enables conductors to be cut flush with the end face of the connector when used with the Ideal FT-45 Feed-Thru Crimp Tool (part # ID-30-495). These CAT6 feed-thru RJ-45 connectors are single piece connectors that use the same assembly process.

As SIMPLE as:
• Align wires
• Insert into connector
• Verify wire order
• FT-45 Tool does the rest

Features

  • NEW! Feed-Thru design simplifies connector to cable assembly

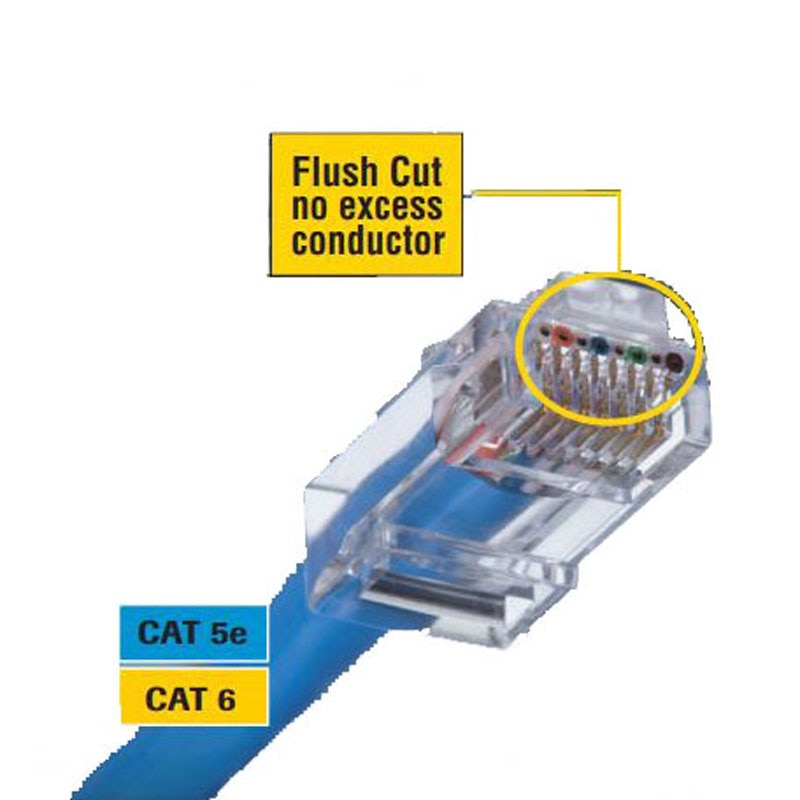

  • Flush cut of excess conductors minimizes inadvertent contact outside of the plug
  • Designed for best performance when used with the IDEAL FT-45 Crimp Tool (30-495)
  • 8 position, 8 contact RJ-45 modular plug for CAT6 twisted pair cables
  • 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
