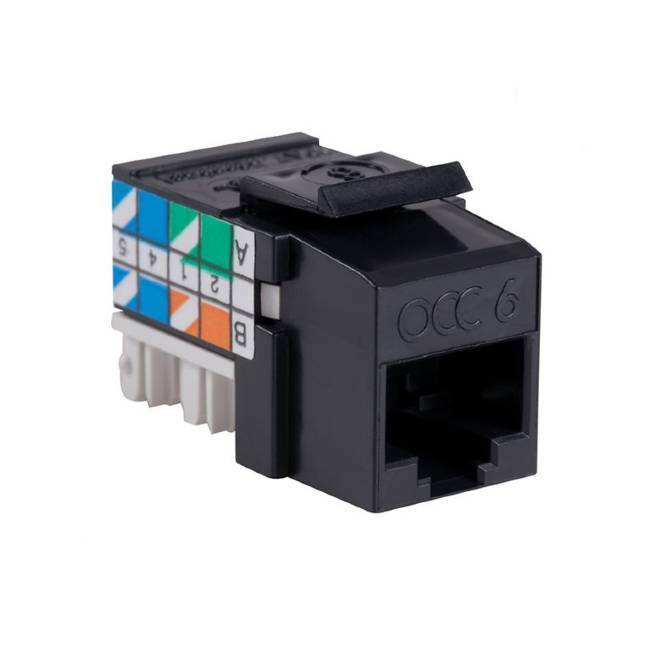

Optical Cable Corporation Category 6 KMJ Keystone Jack - Black

$5.70
Reference#: 77378
Item#: OCC-KMJA602



Description

The KMJA602 Category 6 KMJ Jack in black is a high-performance keystone jack designed for use in a variety of network and telecommunications applications. Engineered to meet and exceed industry standards, it offers reliable connectivity for high-speed data transmission and voice communications over Category 6 cabling. Featuring OCC's best-in-class printed circuit board (PCB) technology, this jack ensures long-term application confidence, outstanding performance, and compliance with modern networking protocols, including Power over Ethernet (PoE).

Features

  • Mounting flexibility
  • Large easy to read color code labels
  • Universal T568A/B wiring for easy installation
  • Long-term application confidence
  • TERMA Grip conductor retention for easy wiring
  • Fits all OCC Keystone faceplates and surface mount boxes
  • Slimline design allows up to 48 ports in 1RU
  • One-piece stuffer cap included

Applications

  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet
  • 10BASE-T Ethernet
  • Broadband Video
  • 270 Mbps digital video
  • 155/622 Mbps ATM
  • 100 Mbps TP-PMD
  • 100 Mbps TP-PMD
  • 4/16 Mbps Token Ring
  • Voice
  • All other applications developed for operation over Category 6 cabling

Specification

Insulation resistance: 500MΩ minimum
Dielectric withstand: 1000 VAC RMS, AC 60Hz or 1414 VDC P-P
DC current rating: 1.5A per conductor at 20°C ambient de-rated to 0.75A at 60°C ambient
Meets IEC 60603-7 requirements
ETL Verified to TIA 568-C.2 Cat 6
Category 6 component-compliant
110-style IDC contacts exceed TIA 568-C.2 requirements
Compliant with Power over Ethernet (PoE) requirements
Backward compatible, Cat 3, 5, and 5e compliant
Compliant with Power over Ethernet (PoE+) requirements
