Hyperline Cat6e 550MHz 4pr 23awg Unshielded PVC Ethernet Cable, Orange (1000 ft)

Reference#: 70859


1,000ft 23AWG Cat6e PVC 550MHz UTP Solid, Bulk Ethernet Cable - Orange

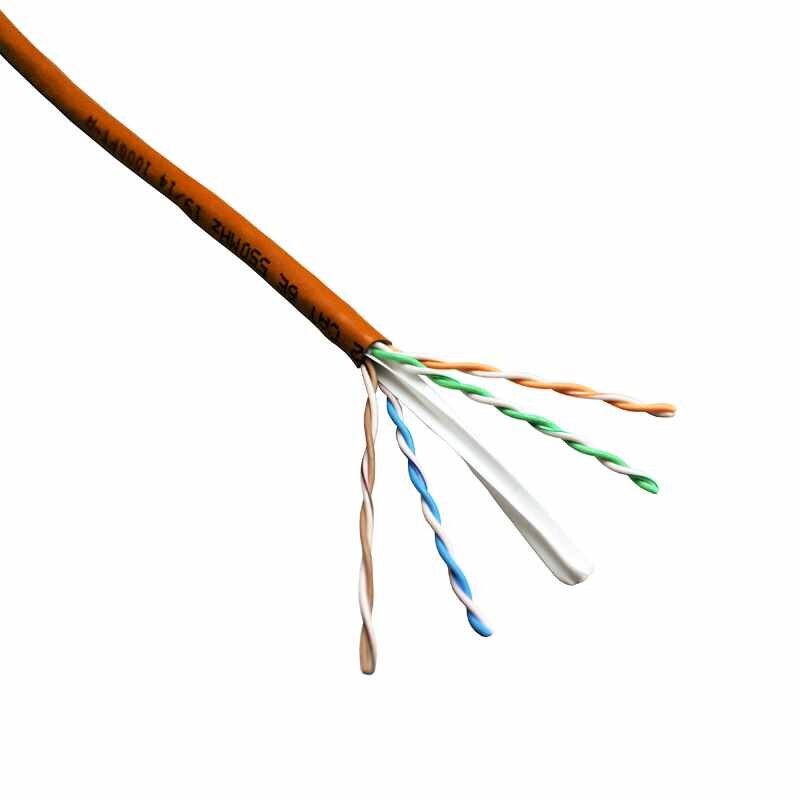

This 1,000 foot roll of unshielded (UTP) Cat6e cable uses solid conductors and features 550MHz bandwidth capacity. Solid conductors have slightly better electrical properties than stranded conductors, making solid cables well suited for use in permanent, in-wall installations and for longer cable runs. Hyperline Cat6e cable also has a center spline, for reduced alien crosstalk.

Hyperline Cat6e cables are made of 100% bare copper wire, as opposed to copper clad aluminum (CCA) wire, and are therefore fully compliant with UL Code 444 and National Electrical Code TIA-568-C.2 fire and safety standards, which require pure bare copper wire in Cat5e and Cat6 communications cables.


- 550MHz Cat6e Cable with Center Separator (spline)
- Solid Copper Conductors
- Sturdy 1,000ft Pull Box
- Available in 10 Different Colors


Conductor diameter:

  • 0.54 ± 0.01 mm (24 AWG)

Insulated conductor diameter:

  • 0.99 ± 0.2 mm (0.038" ± 0.008")

Outer cable diameter:

  • 6.2 ± 0.2 mm (0.24" ± 0.008")

Jacket thickness:

  • 0.4 mm (0.015")

Pulling strength:

  • 130 N

Minimum bend radius:

  • 4 outer cable diameters

Operating temperature:

  • -20°C to +75°C (-4°F to +167°F)

Weight per 1000 ft:

  • 12.9 kg (28.4 lbs)

Standard package:

  • 305 m (1000 ft)

Conductor resistance at 20°C (68°F)9.38 Ohm/100 m (2.9 Ohm/100 ft)
DC Resistance Unbalance 5%
Pair-to-Ground Capacitance Unbalance 330 pF/100 m (101 pF/100 ft)
Impedance 0.772-100 MHz85-115 Ohm
Mutual Capacitance5.6 nF/m (1.7 nF/ft)
Spark Test2.5 kV
