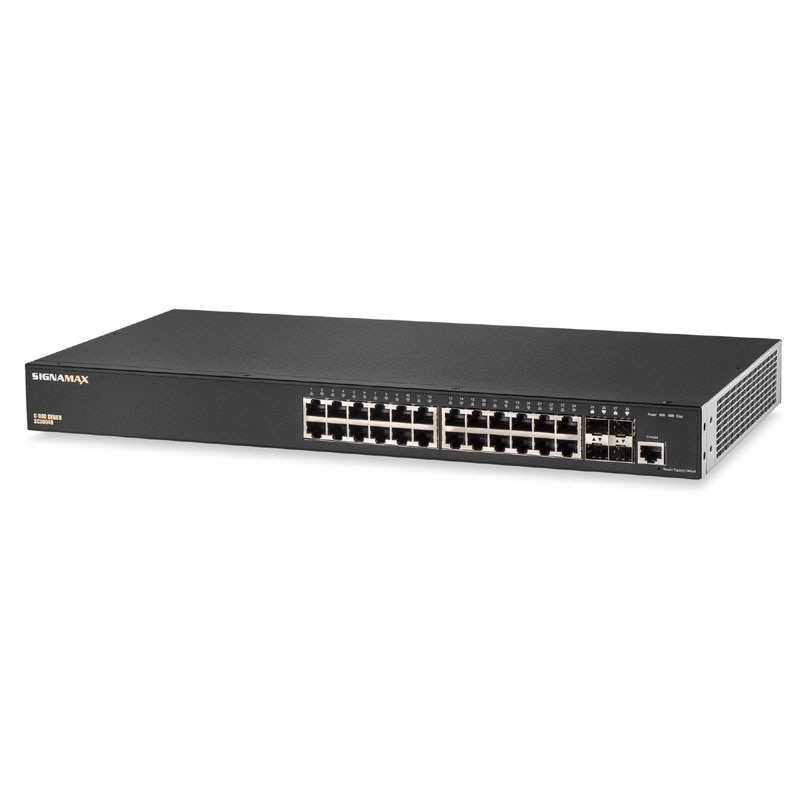

Signamax C-300 24 Port Gigabit Managed Switch

The Signamax C-300 series SC30040 24-Port Switch delivers full Layer 2 capabilities with enhanced access security, ACLs, traffic prioritization, and IPv6 support. The security & reliability provided by this series is ideal for branch and campus implementations. The C-300 Series switches are built from the ground up for easy deployment and management without compromising any of the power and flexibility traditionally found in enterprise-class switches.

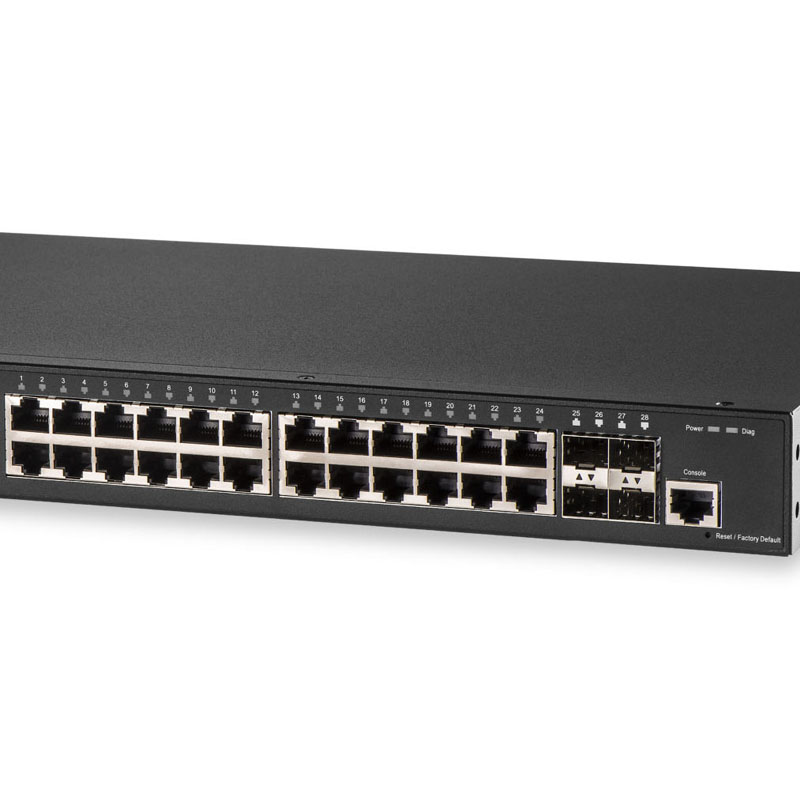

The SC30040 switch is a Gigabit Ethernet switch with (24) 10/100/1000BASE-T ports, and four Small Form Factor Pluggable (SFP) transceiver slots for fiber connectivity. The SC30040 switch includes a SNMP-based management agent, which provides both in-band and out-of-band access for managing the switch. Further, the switch supports both web and CLI-based configurations.

PORTS
RJ-45 (Downlink): 24 10/100/1000
SFP Uplink Ports: 4

PERFORMANCE
Switching Capacity: 56Gbps
Forward Rate: 41.7Mpps
MAC Address Table: Up to 8K
256MB DRAM
Up to 12Mb Packet Buffer
32MB Flash memory
Supports 10K Jumbo Frames
Wirespeed forwarding
IPv4/IPv6 Dual Protocol Stack

SECURITY
DDOS Protection
CPU Guard (CPU Protection)
Port Isolation
Storm Control
Broadcast/Multicast/Unknown Storm Control
Up to 512 Access Control Lists (ACL) based on L2/L3/L4
Port Security
MAC Authentication
Dynamic ARP Inspection
AAA (IEEE 802.1X RADIUS/TACACS+)
IP Source Guard
Web Authentication
DHCP Snooping
Encrypt switch access with SSH and SSL

LAYER 3 STANDARDS
Up to 56 Static routes
RIPv1/RIPv2(apart from SC30010)
DHCP v4/v6 Client / DHCP Relay
Static Multicast Routing

LAYER 2 STANDARDS
SFP ports support IEEE 802.3u (100FX), 802.3z (1000SX/LX/LHX/ZX)
IEEE 802.3x Flow Control
Spanning Tree:
IEEE 802.1D Spanning Tree Protocol (STP),
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP),
IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP,64 instances)
Loopback Detection
BPDU Filter/Guard
BPDU Forward
Root Guard
Up to 4094 IEEE 802.1Q (802.3ac) Vlans:
Port-Based/MAC-Based/Protocol-Based(IEEE 802.1v)
Guest VLAN
Auto Voice VLAN
Dynamic VLAN Assignment
802.3ad Link Aggregation (static and LACP)
Multicast:
IGMP v1/v2/v3 snooping
IGMP Filtering/Throttling:
IGMP Queries
IGMP Immediate leave
MLD Snooping
mDNS
IEEE 802.1AB LLDP/LLDP-MED
IEEE 802.3az Energy Efficient Ethernet
Q-in-Q

MANAGEMENT
Web-based Graphical User Interface (GUI)
Industry-standard CLI (Telnet/SSH) with context-sensitive help
Console management port on the front panel for ease of access
Switch Cluster allows up to 36 switches to be managed from a single switch
Comprehensive SNMP MIB support for standards based device management
Dual Image/Configuration
RMON (groups 1,2,3 and 9)
NTP/SNTP
Auto Firmware Upgrade
SNMP v1/v2/v3

QoS
Rate Limiting (Ingress/Egress Port-Based)
Priority Queues Schedule (WRR/Strict Priority/Hybrid QoS)
Port-Based QoS
IPv4/IPv6 DSCP
DiffServ
Auto VOIP
8 HW Queues per port for 802.1p priority tagging
Policy based dynamic QoS

DIAGNOSTIC TOOLS
Diag LED
Cable Test
Digital Diagnostic Monitoring (DDM) on SFP Ports
Ping polling for IPv4 and IPv6
TraceRoute for IPv4 and IPv6
Port Mirror (One to One, One to Many)
Remote Mirror
Event/Error Log/Syslog/SMTP Alerts
SFlow
Trace multi port

ELECTRICAL CHARACTERISTICS
Max Power Consumption: 20W
Acoustic Noise: 0 dB (A)
Power Supply AC Input: 100 – 240 V AC, 50/60 Hz
MTBF: 564K hrs

PHYSICAL CHARACTERISTICS
Dimensions: 17.3” W x 8.6” D x 1.7” H (44 cm x 22 cm x 4.4 cm)
19 in rack mounting hardware included
Weight: 4.86 lb (2.52 kg)

ENVIRONMENTAL REQUIREMENTS
Heat Dissipation: 68 (Btu/H)
Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -40 to 158°F (-40 to 70°C)
Operating/Storage Humidity: 10 to 90% (non-condensing)

CERTIFICATIONS
Emissions: CE Mark: EN 55022, Class A; FCC Part 15 Class A
Immunity: IEC 61000-3-3, 61000-4-2/3/4/5/6/11

WARRANTY
Five years (Including power supply)
