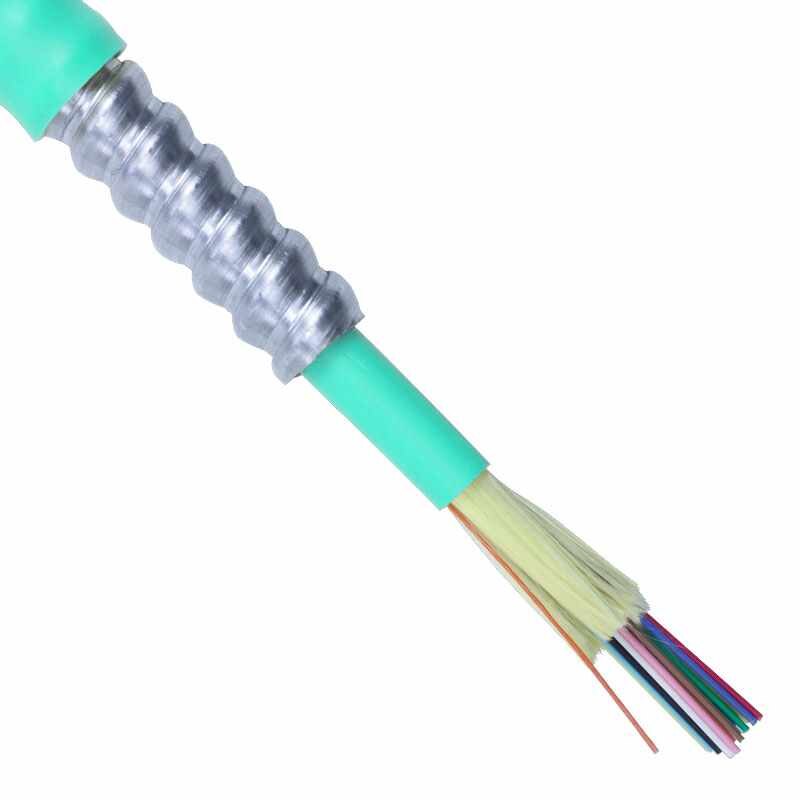

Superior Essex 12 Strand 50/125 Multimode OM3 Indoor Armored Plenum Fiber Optic Cable - Aqua (Per Foot)

$2.66
Reference#: 77173
Item#: L4012N401



Description

Superior Essex L4012N401 OM3 Interlock Armored Optical Fiber Cables provide for an extremely well protected cable package ideally suited for harsh environments. This design offers the system designer a product that can be installed in high traffic areas where added mechanical protection and security are required. The flexible interlock armored cable design is also popular for retrofit applications and eliminates the need to install rigid conduit while still meeting building code guidelines.

Benefits:

  • Contributes toward 1 LEED point under the Material and Resources credit (MRc)
  • Reduce incidences of circuit disruption due to rodents or mechanically abusive applications
  • Eliminates the need for multiple cables for installation

    • Features

  • UL® Certified Environmental Product Declaration (EPD)
  • Health Product Declaration™ (HPD™)
  • Thick, flexible metallic armor
  • Flame retardant, UL Listed designs

    • Specification

    Interlock Armored:

  • Flexible, heavy duty interlocking aluminum tape helically applied over the inner cable core; further protection is provided by an optional flame retardant outer jacket

    Environmental Specifications:
    Operation: 0°C to +75°C
    Storage/Shipping: -40°C to +75°C
    Installation: 0°C to +65°C

    Performance Compliance:

  • UL 1569
  • UL 1651
  • CSA C22.2 No. 232
  • UL 1666
  • NFPA 262
  • Telcordia® GR-409-CORE, Issue 1
  • Telcordia GR-409-CORE, Issue 2
  • ANSI/ICEA S-83-596
  • ANSI/TIA-568.3-D

    NRTL Programs:

  • UL, c(UL) Listed OFCP

    Sustainability:

  • UL Certified EPD
  • HPD
  • USGBC® Member
  • RoHS-compliant/RoHS 2-compliant
  • REACH-compliant
