Tempo 930XC-30F Singlemode (1310/1550/1625nm) OTDR w/ Power Meter, Laser Source, and VFL

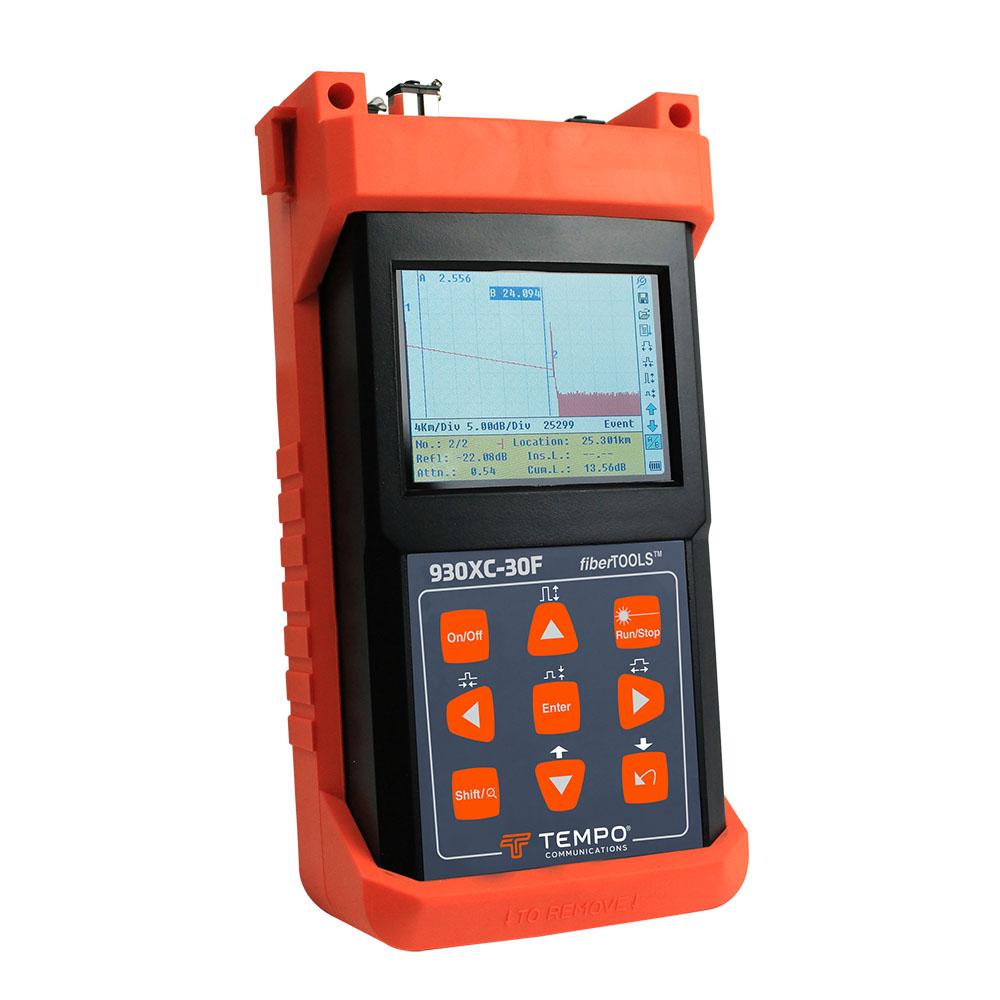

930XC-30F-UPC-SC Optical Time-Domain Reflectometer (OTDR)

The 930XC-30F-UPC-SC is a high-performance Optical Time-Domain Reflectometer (OTDR) designed for efficient and accurate fiber optic testing. Featuring a triple-wavelength design (1310nm, 1550nm, and 1625nm), it is optimized for a wide range of single-mode fiber testing applications, including troubleshooting, installation, and maintenance. With its 38dB (1310) / 37dB (1550) / 37dB (1625) dynamic range, the device ensures precise detection of fiber faults, bends, and splices, making it a critical tool for field technicians and network engineers. The built-in Optical Power Meter (OPM), Visual Fault Locator (VFL), and Stabilized Laser Source (SLS) provide comprehensive testing capabilities, reducing the need for additional tools.

The 930XC-30F-UPC-SC offers a user-friendly interface, automated test functions, and advanced reporting features. Its Auto Test mode optimizes test parameters for accurate and efficient measurements, while the Link Viewer presents results in an intuitive pass/fail format. This device is equipped with high-resolution event viewing, enabling detailed fiber analysis with 0.1m sampling resolution. With an 8-hour battery life, durable construction, and compliance with CE, FCC, and UL standards, this OTDR is a reliable solution for fiber network diagnostics.

Included Accessories:

• Rechargeable battery
• OTDR Trace Viewer software
• Data transfer cable
• AC adapter
• Protective cover

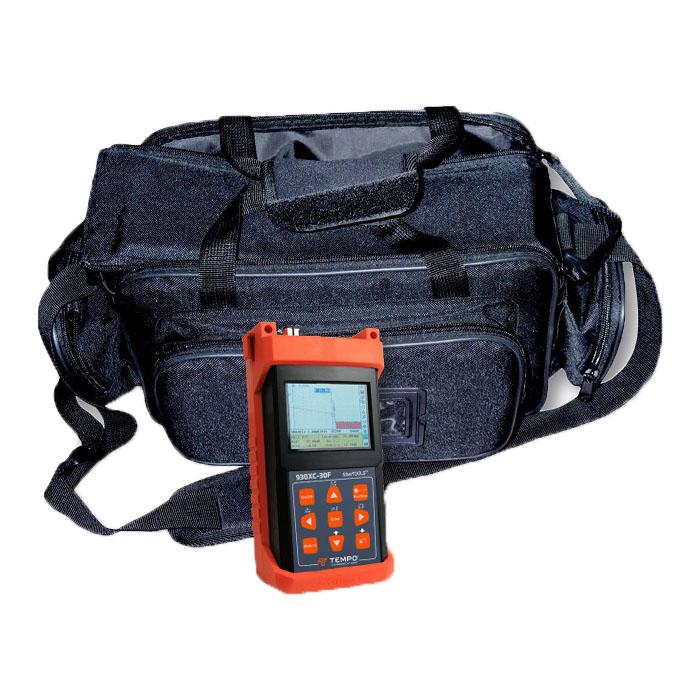

• Carrying case
• Warranty card

The 930XC-30F-UPC-SC is a powerful, compact, and efficient OTDR solution for fiber optic testing, offering advanced diagnostics, ease of use, and long-term reliability in the field.

• Triple-Wavelength OTDR: Supports 1310nm, 1550nm, and 1625nm for versatile single-mode fiber testing.
• High Dynamic Range: 38 dB at 1310nm, 37 dB at 1550nm/1625nm for detailed trace analysis.
• Fast and Automated Testing: One-button Auto Test optimizes test settings for accurate results.
• Live Fiber Testing: Allows testing without disrupting active services.
• Graphical Interface & High-Resolution Viewing: Easy-to-read display, even in bright conditions, with 0.1m sampling resolution.
• Integrated Tools: Built-in OPM, VFL (-3dBm at 650nm), and SLS for comprehensive fiber diagnostics.
• Link Viewer Analysis: Annotated fiber link report with automated pass/fail assessment.
• Macrobend Detection: Identifies fiber bends and losses at 1550nm.
• Event & Attenuation Deadzones: 1m event deadzone and 4.5m attenuation deadzone for precise fault location.
• Multiple Pulse Widths & Ranges: Supports 5ns to 20µs pulse widths and 0.3km to 240km measurement ranges.
• User-Defined Thresholds: Customizable alert settings for efficient fault detection.
• Data Storage & Connectivity: Stores up to 1,000 test curves, with USB data transfer capability.
• Extended Battery Life: Over 8 hours of continuous operation on a single charge.

• Connector Type: UPC SC
• Measurement Accuracy: ±(1m + 5×10⁻⁵×distance + sampling space)
• Reflection Detection Accuracy: ±4 dB
• Linearity: ±0.05 dB/dB
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 0-95% (non-condensing)
• Weight & Dimensions: 1.9 lbs (0.87 kg), 7.7” H x 3.9” W x 2.4” L
• Compliance: CE, FCC, UL
• Password Protection: Owner-defined password security (recoverable)
