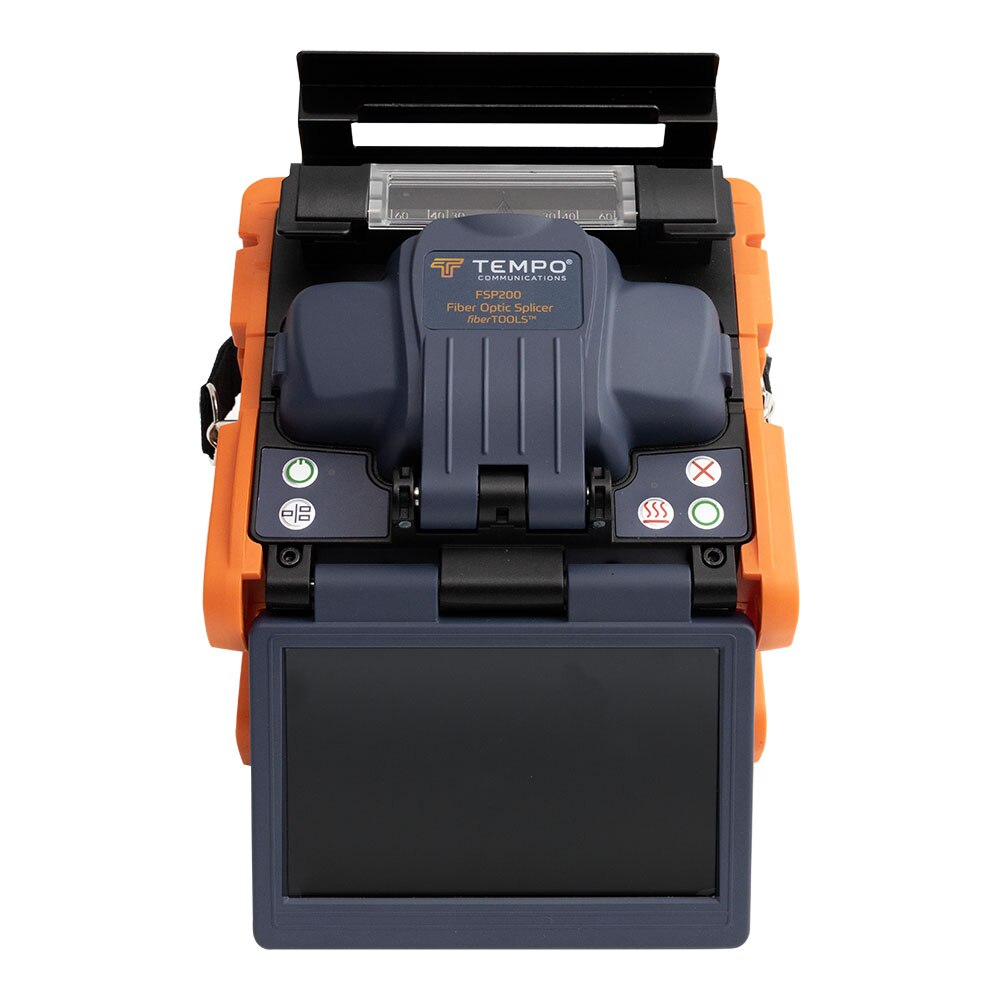

Tempo FSP200 Optical Fusion Splicer

FSP200 Optical Fusion Splicer – Precision and Performance for Fiber Splicing

The Tempo FSP200 Optical Fusion Splicer is a top-tier core alignment fusion splicer designed for fast, reliable, and low-loss splicing across diverse fiber optic applications. Whether working on FTTx deployments, backhaul, cellular networks, or LAN installations, the FSP200 ensures superior splicing efficiency and precision.

Key Features & Benefits:

• Advanced Core Alignment Technology - Six-motor core alignment system ensures exceptional precision for complex fiber geometries. - Achieves low splice loss even in challenging conditions.
• Fast & Efficient Splicing - 7-second splice time for quick fiber connections. 18-second tube heating time accelerates workflow. Automatic & Manual Arc Calibration for consistent performance.
• Broad Fiber Compatibility - Supports single-mode (SM), multi-mode (MM), dispersion-shifted (DS), non-zero dispersion-shifted (NZDS), bend-insensitive (BIF), and erbium-doped fibers (EDF). Compatible with SC, LC, FC, and ST splice-on connectors from leading brands including Tempo Communications, AFL, Belden, Corning, Sumitomo, FIS, and Hubbell.
• Rugged & Field-Ready Design - IP52-rated for dust and water resistance, ensuring durability in tough environments. Built to withstand 76cm drop test and vibration resistance from 10Hz to 500Hz. Lightweight (3.74 lbs with battery), compact (4.9” x 4.9” x 5.3”)** for portability.
• Powerful Battery Life - 200 splices per charge, including 60mm heat shrink cycles. 5-second boot-up minimizes downtime.

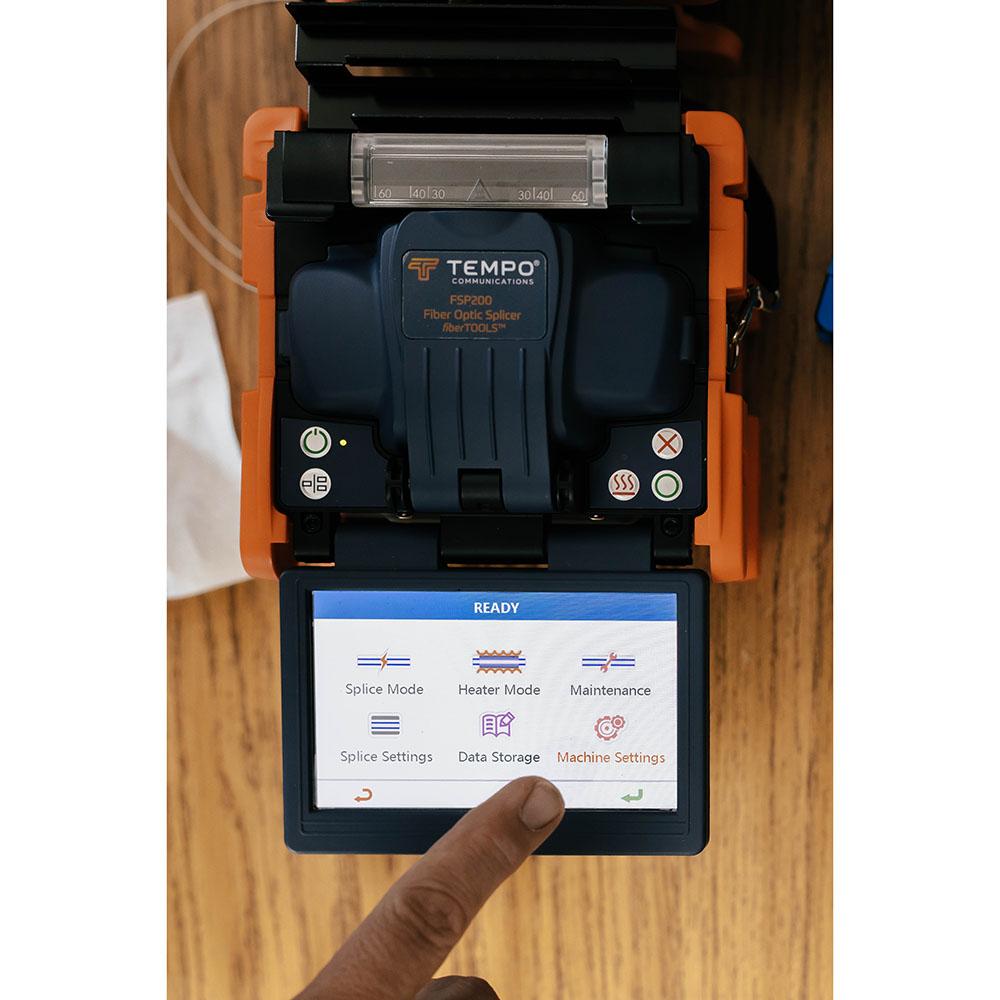

• User-Friendly Interface - 5.0” Color Touchscreen LCD for intuitive operation. On-board instruction manual for real-time guidance. Stores 5,000 splice results and 100 screenshots for easy data management.
• Security & Protection - Password protection enhances device security.

Each FSP200 Optical Fusion Splicer comes with a full set of essential tools for professional splicing, including:

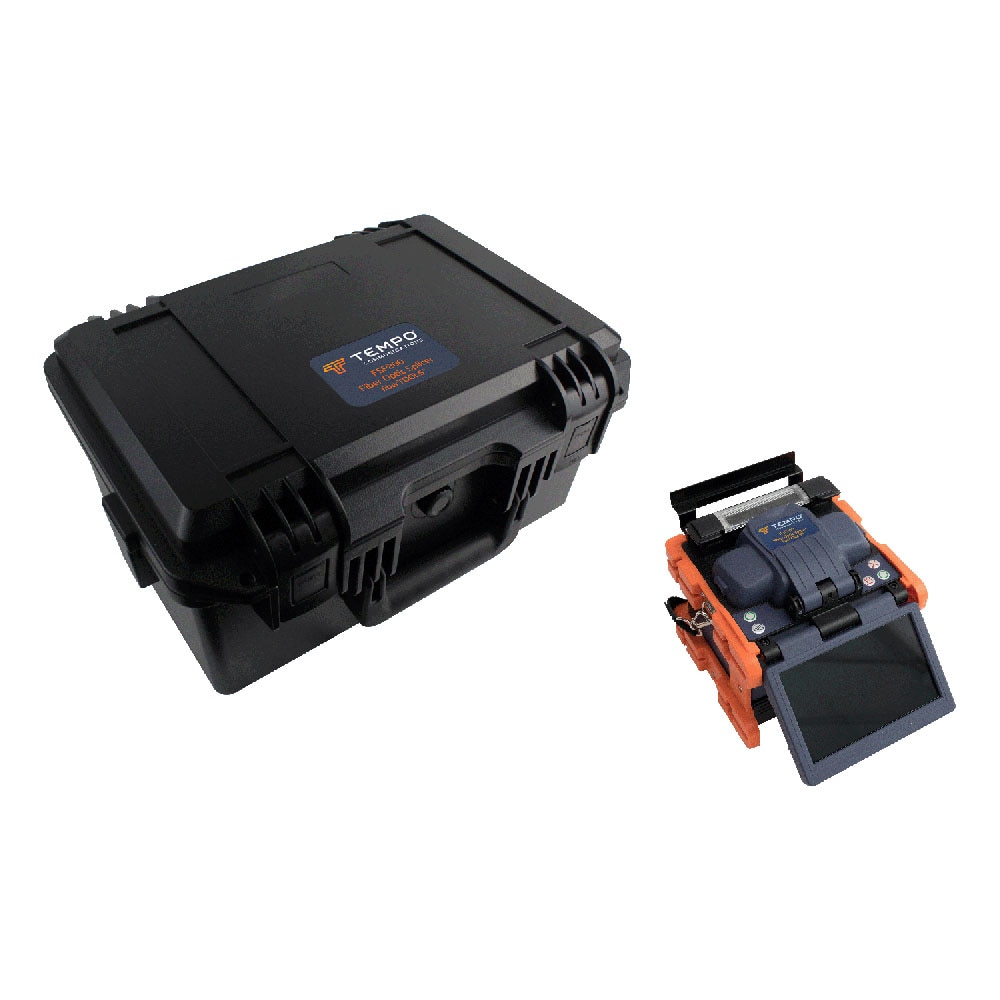

• Black carrying case
• Tweezers
• Extra set of electrodes
• USB cable
• 200/250µm Adapter (Pair)
• 900µm Adapter (Pair)
• Splice-on Connector oven insert
• Allen key
• Power supply with line cord
• Quick reference card
• Carrying strap
• Cooling tray
• Battery
• Electrode cleaner
• 3-Year Warranty

Why Choose the Tempo FSP200? This Optical Fusion Splicer is an advanced solution for fiber optic professionals who demand speed, accuracy, and reliability in every splice. With state-of-the-art core alignment technology, rapid splicing, robust construction, and extensive fiber compatibility, the FSP200 is built to handle the most challenging jobs.
