Tempo OFL100 Singlemode (1310/1550nm) OTDR w/ One-Button Auto Test

OFL100 Singlemode Fiber Optic OTDR

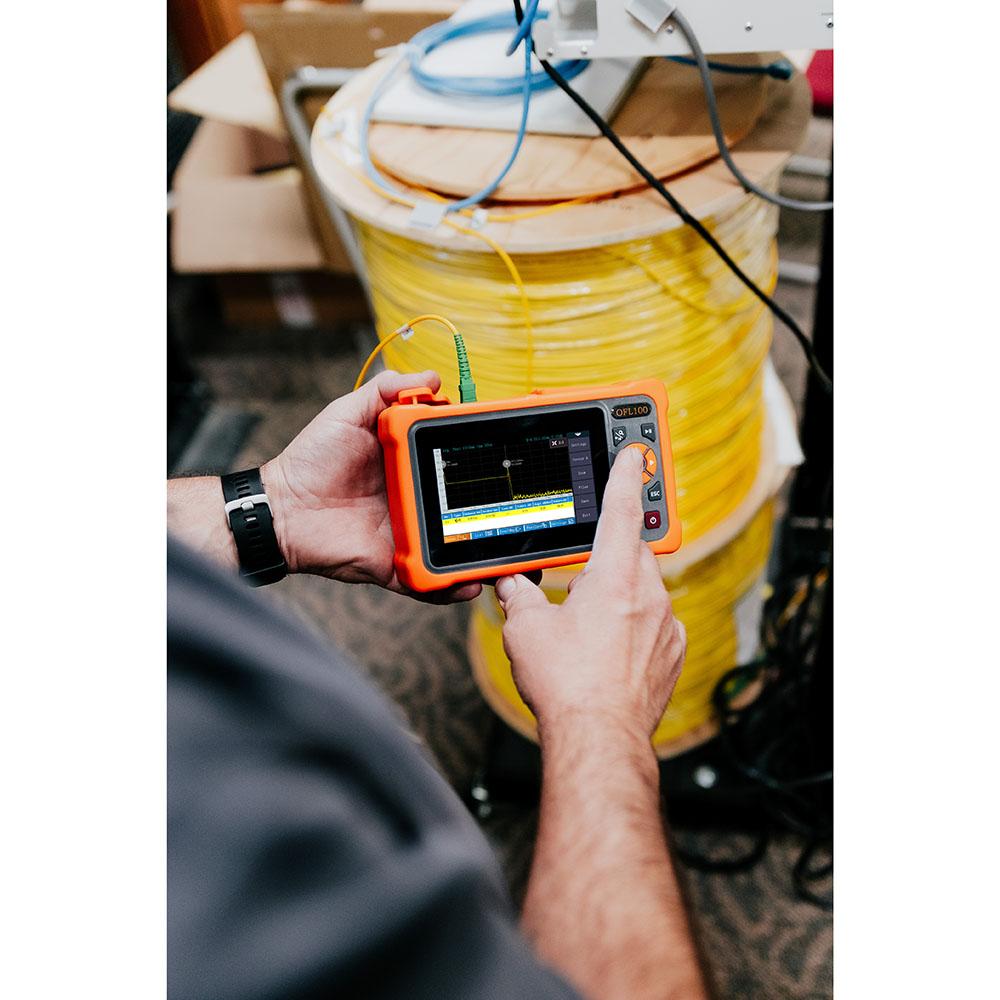

The Tempo OFL100 Optical Time-Domain Reflectometer (OTDR) is a powerful and user-friendly tool designed for front-line fiber technicians who need to quickly and accurately locate loss events in the last mile of FTTx networks. Featuring an intuitive touchscreen interface, the OFL100 simplifies fault detection, allowing technicians of all skill levels to identify issues such as fiber cuts, connector contamination, and excessive bends with ease. The Auto Mode enables one-button operation for fast and optimized testing, while the Expert OTDR Mode provides advanced users with the flexibility to fine-tune measurement parameters for more precise troubleshooting. Equipped with a visual fault locator (VFL), stabilized light source (SLS), and optical power meter (OPM), the OFL100 delivers comprehensive fiber diagnostics in a compact and lightweight design.

Designed for efficiency, accuracy, and reliability, the OFL100 offers a Pass/Fail analysis feature that presents results in a traditional OTDR trace or an easy-to-interpret linear map. Test data is stored in an industry-standard SOR format, compliant with GR196 Telcordia standards, and can be exported for further analysis or report generation. The unit supports multi-language operation, making it accessible for global deployment, and boasts a long-lasting battery capable of powering a full 12-hour shift. Whether used for routine maintenance or complex troubleshooting, the OFL100 ensures fiber technicians can perform their tasks quickly and confidently while maintaining the highest standards of fiber network integrity.

• Fast & Easy Operation - One-button Auto Test Mode optimizes parameters for quick and accurate measurements. Expert OTDR Mode allows advanced users to fine-tune settings for in-depth troubleshooting. Intuitive touchscreen interface for effortless navigation and analysis.

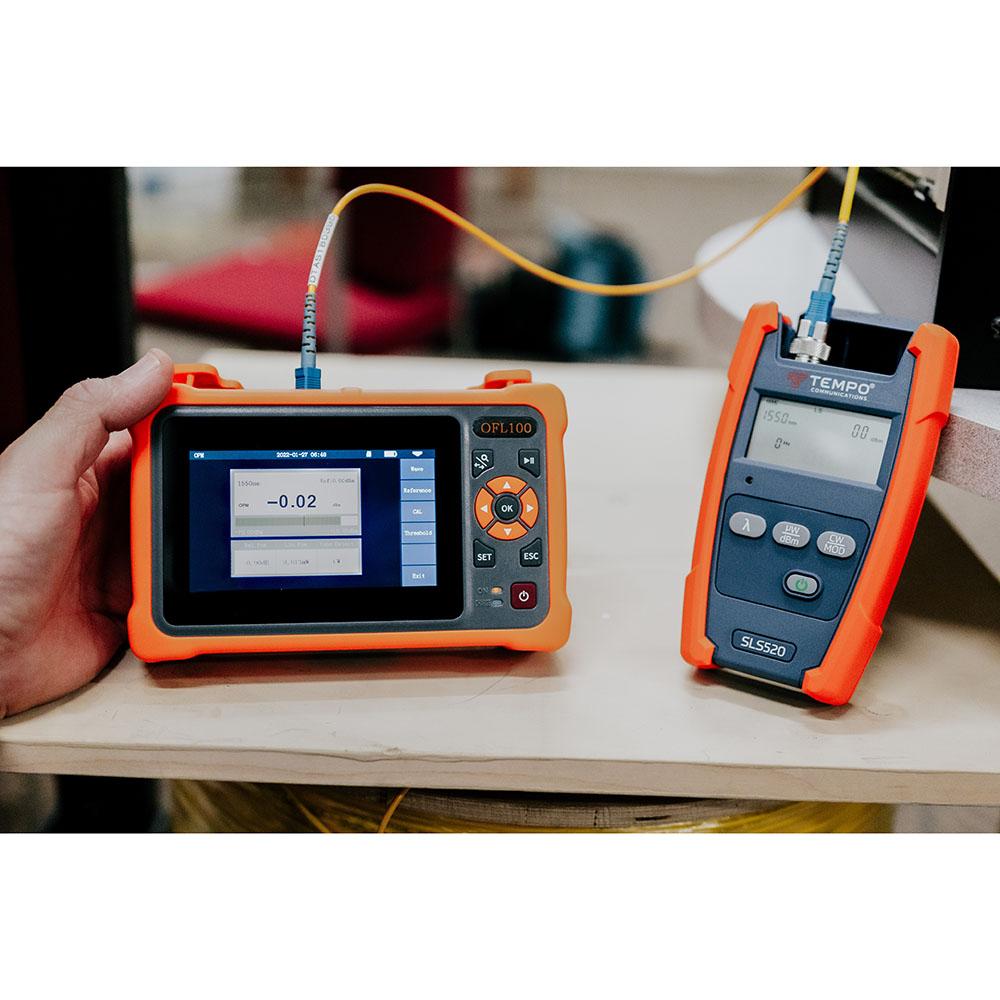

• Comprehensive Fiber Testing Tools - Integrated Visual Fault Locator (VFL) for quick identification of breaks and faults. Stabilized Light Source (SLS) and Optical Power Meter (OPM) for precise loss measurements. Supports Pass/Fail analysis with both OTDR trace and linear map views.
• High Accuracy & Performance - 1310/1550nm wavelength testing for singlemode fiber networks. 26/24dB dynamic range for detecting fiber faults over long distances. Event Dead Zone: 2.5m, Attenuation Dead Zone: 8m for precise fault location. Measurement range up to 100km with multiple pulse width options.
• Reliable Data Management & Reporting - Industry-standard SOR file format (GR196 Telcordia compliant) for easy data sharing. Results can be saved, annotated, and exported for further analysis. The device includes an 8GB SD card and USB-C interface for efficient data storage and transfer.
• Rugged & Long-Lasting Design - 12-hour battery life for extended field use without frequent recharging. Compact, lightweight, and durable construction for portability. Multi-language support including English, Spanish, French, Russian, Arabic, Chinese, Hindi, and Vietnamese.
• Versatile Compatibility - Supports SC/APC and optional FC/APC connectors. Compatible with various tone frequencies (270Hz, 330Hz, 1kHz, 2kHz) for accurate fiber identification. Works in a wide temperature range (-10°C to +50°C operational, -40°C to +70°C storage).

The OFL100 OTDR is a must-have tool for fiber technicians looking for a fast, accurate, and reliable solution for fiber optic network testing and troubleshooting.

OTDR

• Wavelength: 1310/1550nm
• Dynamic Range: 26/24dB
• Event Deadzone: 2.5m
• Attenuation Deadzone: 8m
• Measurement Ranges: 500m, 1km, 2km, 4km, 8km, 16km, 32km, 64km and 100km
• Pulse Widths: 3ns, 5ns, 10ns, 20ns, 30ns, 50ns, 80ns, 160ns, 320ns, 500ns, 800ns,1μs, 2μs, 3μs, 5μs, 8μs, 10μs and 20μs
• Measurement Accuracy: ±(1m + Sample Interval + 0.005% x Test Distance
• Linearity: ≤0.05dB/dB
• Loss Resolution: 0.001dB
• Loss Threshold: 0.20dB
• Distance Resolution: 0.001m
• Refractive Index: 1.00000 to 2.00000
• Reflection Accuracy: ±3dB
• File Format: SOR compliant to Telcordia GR196
• Loss Analysis: Four Point & Five Point
• Laser Safety: Class 1M

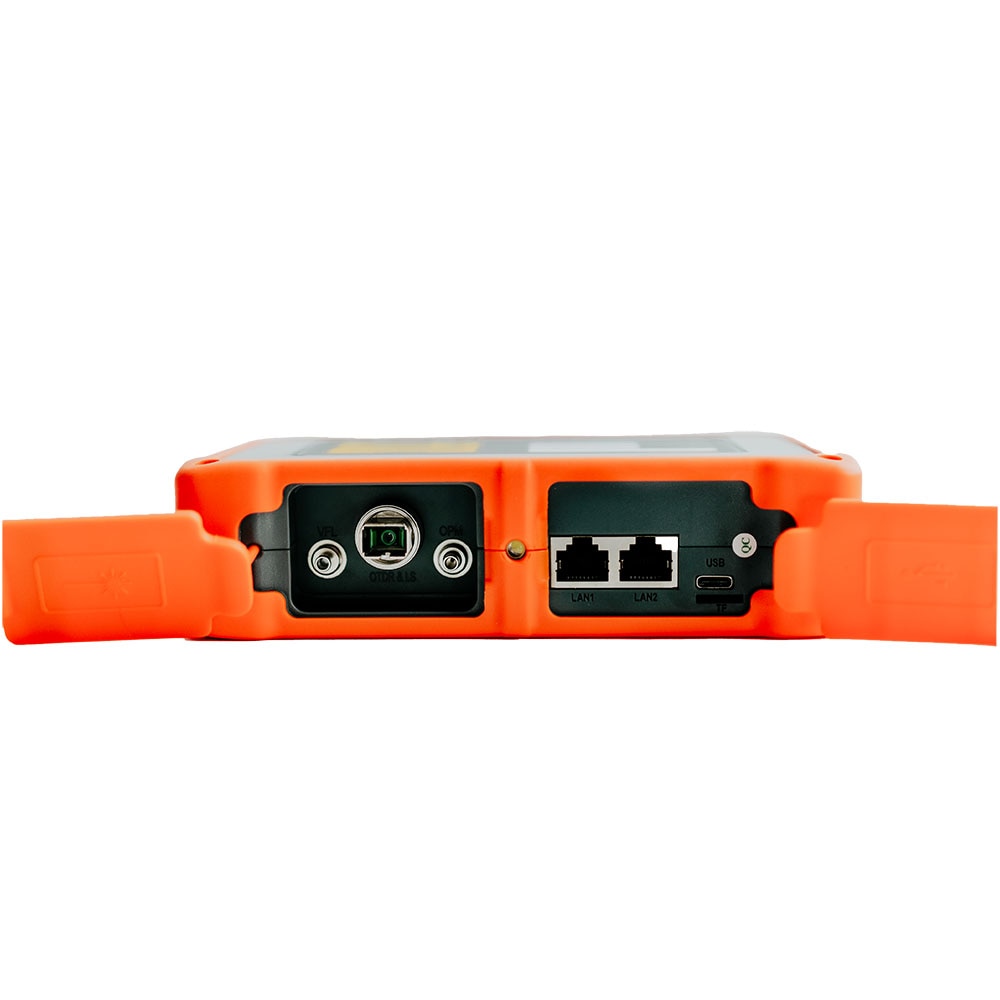

• Bulkhead: SC/APC (Optional FC Available)
• Trace Update Rate: 3Hz

OPTICAL POWER METER

• Wavelength Range: 800nm to 1700nm
• Calibrated Wavelengths: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm and 1650nm
• Measurement Range: +26dBm to -50dBm
• Measurement Resolution: 0.01dB
• Measurement Accuracy: ±5%
• Tone Frequencies/Sensing: CW, 270Hz, 330Hz, 1kHz and 2kHz
• Bulkhead: 2.5mm Universal

VISUAL FAULT LOCATOR

• Wavelength: 650nm ±20nm
• Output Power: <1mW
• Mode of Operation: CW, 1Hz and 2Hz
• Bulkhead: 2.5mm Universal
• Laser Safety Class: 2

STABILIZED LIGHT SOURCE

• Wavelength: 1310/1550nm
• Output Power: ≥-5dBm
• Power Stability: CW, ±0.5dB/15 minutes after continuous on of 15 minutes
• Bulkhead: SC/APC (Optional FC Available)
• Tone Frequencies: CW, 270Hz, 330Hz, 1kHz and 2kHz

OPTICAL LOSS TESTING

• Wavelength: 1310nm and 1550nm
• Insertion Loss Testing: Integrated OPM and SLS

RJ45 SEQUENCE TESTING

• Cable Type: Straight and Interleaved (T568)

MECHANICAL

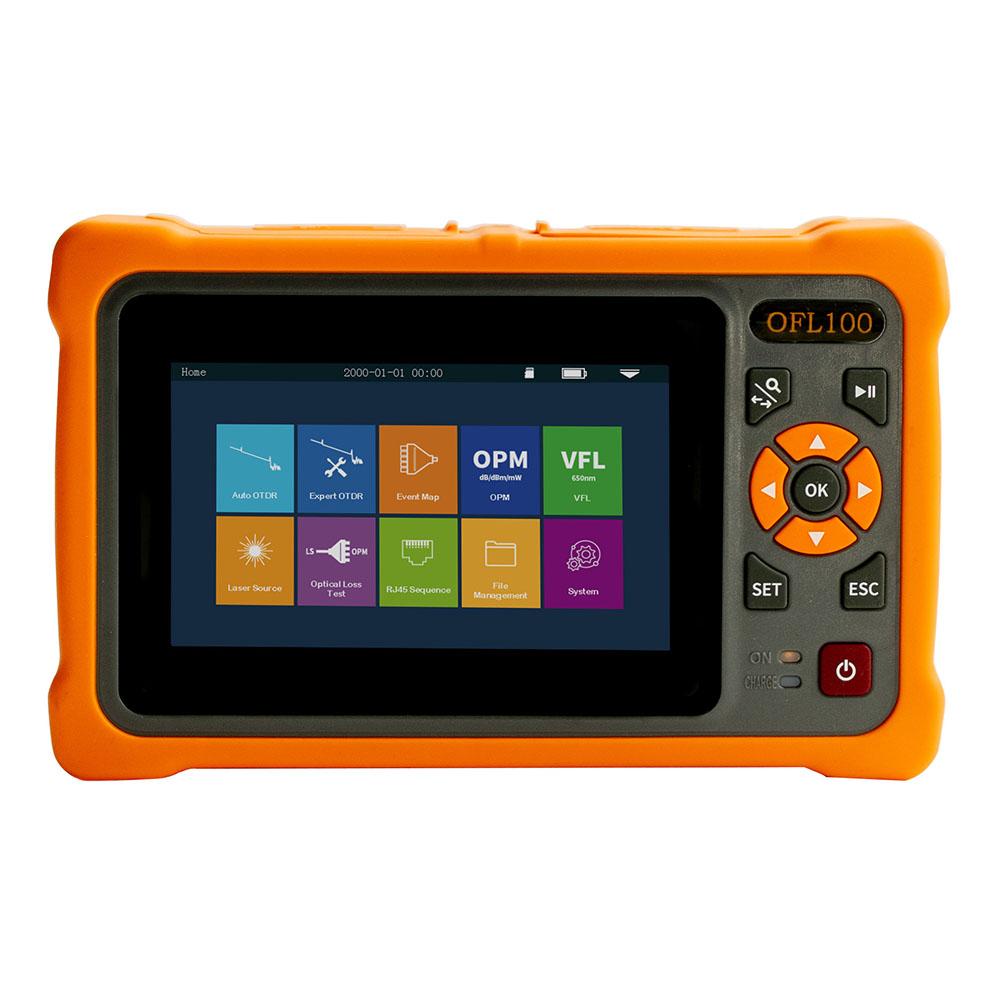

• Display: 4.3” 800x400 TFT LCD Touchscreen
• Power Supply: AC to DC 100-240VAC, 50/60Hz
• Power Supply Format: North America
• Battery Lifetime: >12 Hours Continuous Test
• Weight: <1.1lbs (<0.5kg) Including Battery
• Size: 6.8”x 4.3”x 1.8” (173mm x 109mm x 45mm)

DATA

• Internal Storage: 8GB (>200,000 Curves)
• Interface: USB Type C, 8GB SD Card

ENVIRONMENTAL

• Operational Temperature: -10°C to +50°C
• Storage Temperature: -40°C to +70°C
• Relative Humidity: 0 to 95% Non-Condensing
