Tempo NC-100 NETcat ,Voice, Data and Video Wiring Tester

$115.99
Reference#: 70812
Item#: NC-100



Description

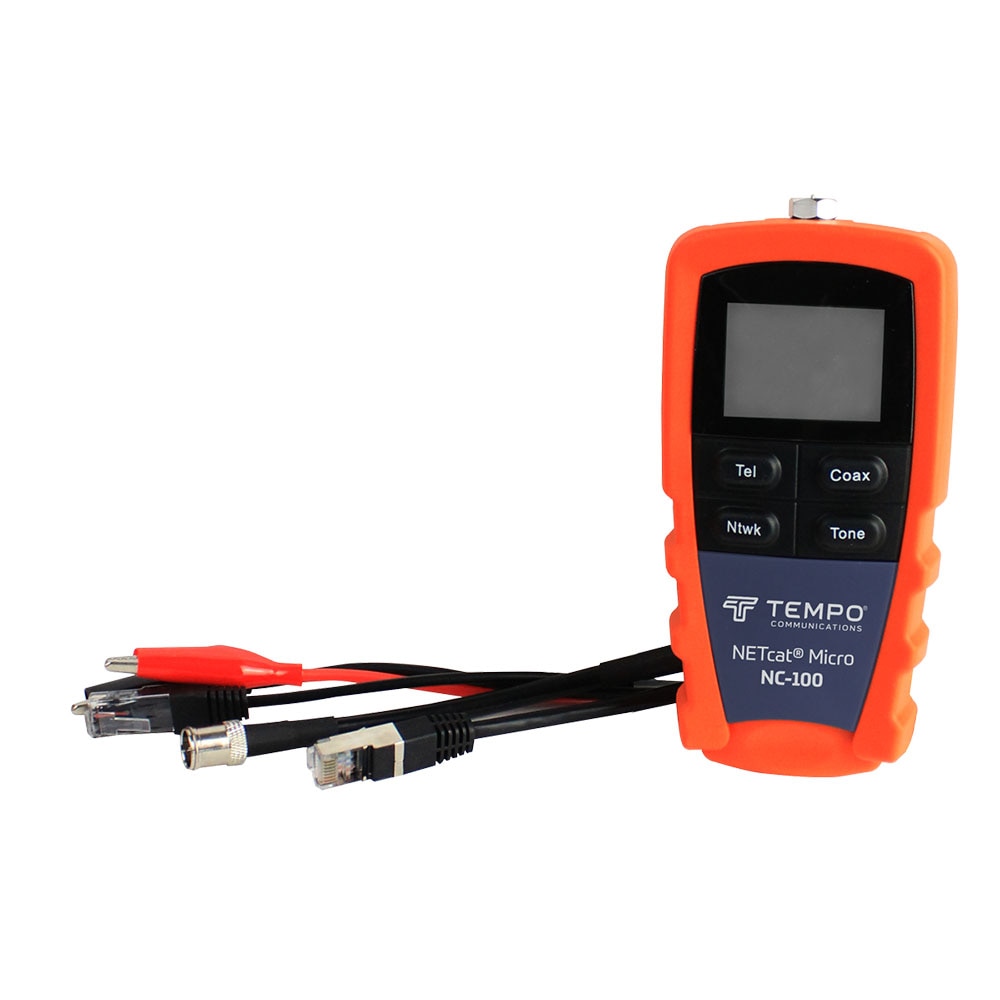

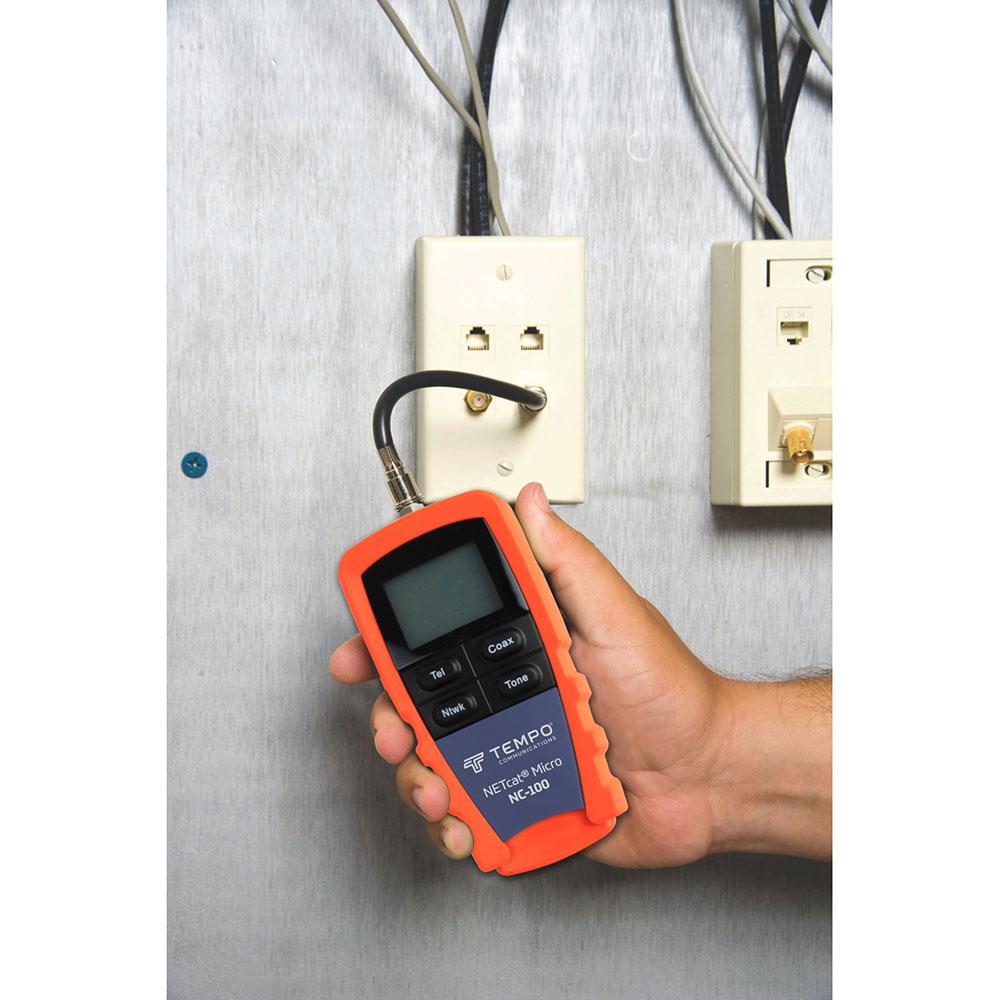

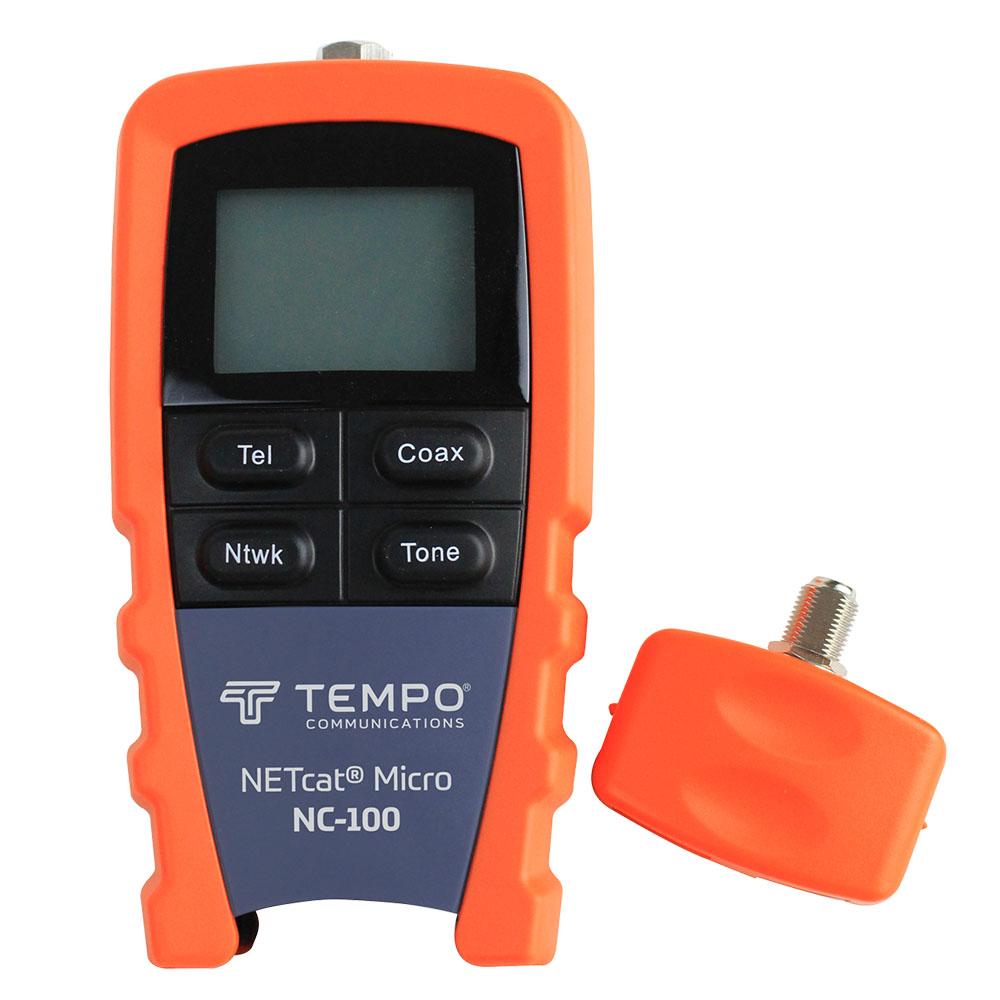

Ensure reliable network and telephone connections with the Tempo NETcat NC-100 Advanced Cable Tester and Tracer, designed for both professional and home use. This versatile tool quickly detects shorts, opens, reversed polarity, crossed wires, and split pairs, ensuring that your wiring is correctly connected.

Key Features:

  • Comprehensive Testing: Validates LAN wiring, telephone lines, and coaxial cables for continuity and errors.
  • Nested Remote Testing: Enables comprehensive cable verification, enhancing troubleshooting efficiency.
  • Hazard Voltage Warning: Notifies you of dangerous voltages to ensure safe operation.
  • TIA/EIA and USOC Compliance: Tests wiring configurations according to industry standards.
  • Adjustable Tracing Modes: Perfect for high-performance LAN cables, guaranteeing accuracy in detection.
  • Three Digital Tone Patterns: Effortlessly trace cables and troubleshoot problems.
  • Supports Various Cable Types: Compatible with shielded twisted pair (STP), unshielded twisted pair (UTP), and coaxial cables.
  • Complete Connector Set: Includes telephone, LAN, and coax connectors for a variety of applications.
  • Telephone Wire Verification: Identifies reversed telephone wires to ensure proper connectivity.

The NC-100 NETcat tester is ideal for network technicians, IT professionals, and DIY enthusiasts. This VDV tester guarantees your connections are precise, secure, and free of errors.

Specification

  • Backlight: LED
  • Battery: 9 V Alkaline Battery (PP3) (Not Included)
  • Buttons: Four Momentary Contact Push Button
  • Size: 33 x 70 x 150 mm
  • Display LCD: Icon And Seven Segment Type
  • Pair Tracing Frequencies: 577 Hz and 983 Hz
  • Humidity: 0 To 95 PCT Non-Condensing
  • Interface Connections: RJ45 Shielded Socket, RJ12 6-Way Socket, F-Type Threaded Female Coaxial Connectors
  • Minimum Split Cable Detectable: 2 m to 3 m (5 ft to 10 ft); depends on cable type
  • Three User Selectable Cadences: Alternating Frequencies Of 577 HZ And 983 HZ Are Produced At Three User Selectable Rates
  • Temperature Range: -10 to +60 °C (Storage); 0 to +50 °C (Operating)
  • Digital wire-mapper and cable check tool for telephony & LAN twisted pairs and COAX cables: Micro Digital Voice Data And Video Wiring
  • Weight: 220 g (0.5 lb) (including remote unit and a typical battery)
